Yamaha F50F - Installing the Oil Pump

POWR
Power unit
5-33
6C13G11

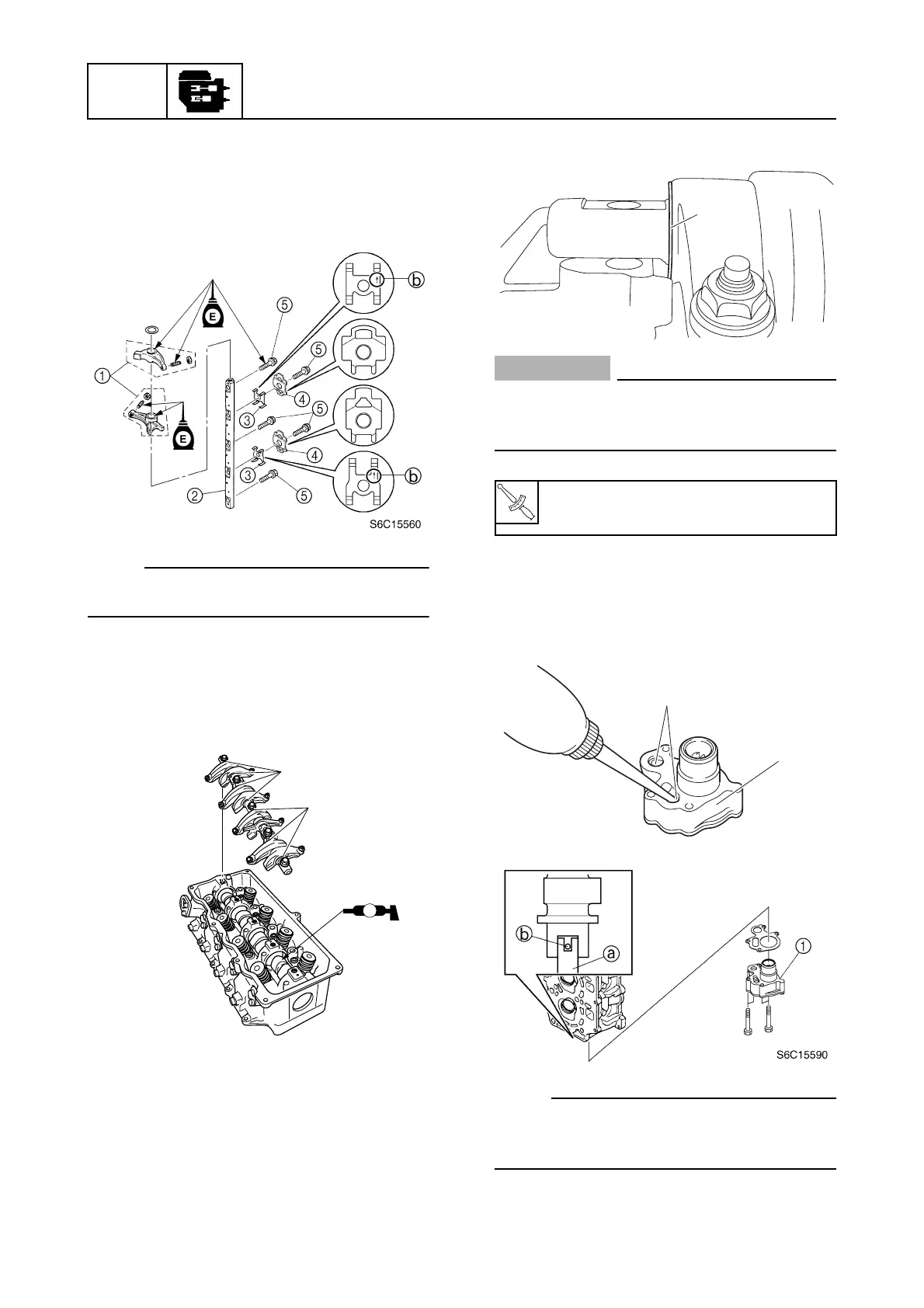

2. Assemble the rocker arm assemblies
1
and rocker arm shaft
2
, and then install
the tensioners
3
and stopper guides
4
to the rocker arm shaft by installing the
bolts
5
.
NOTE:
Make sure that the arrow marks
b
on the
tensioners are facing up.
3. Install the rocker arm shaft assembly to
the cylinder head by installing the bolts,
and then tighten them to the specified
torque.
CAUTION:
Be sure not to damage the washers
6
when installing the rocker arm shaft
assembly to the cylinder head.
Installing the oil pump
1. Install the oil pump
1
by aligning the oil
pump drive shaft
a
with the camshaft pin
b
.
NOTE:
Before installing the oil pump, be sure to fill it
with a small amount of engine oil through the
oil passages
c
.
S6C15570
MM
6
6
T
R
.
.
Rocker arm shaft bolt:
18 N·m (1.8 kgf·m, 13.3 ft·lb)
S6C15610
6
S6C15580
1
c
