Yamaha F50F - Removing the Steering Arm; Installing the Steering Arm

BRKT
Bracket unit
7-23
6C13G11

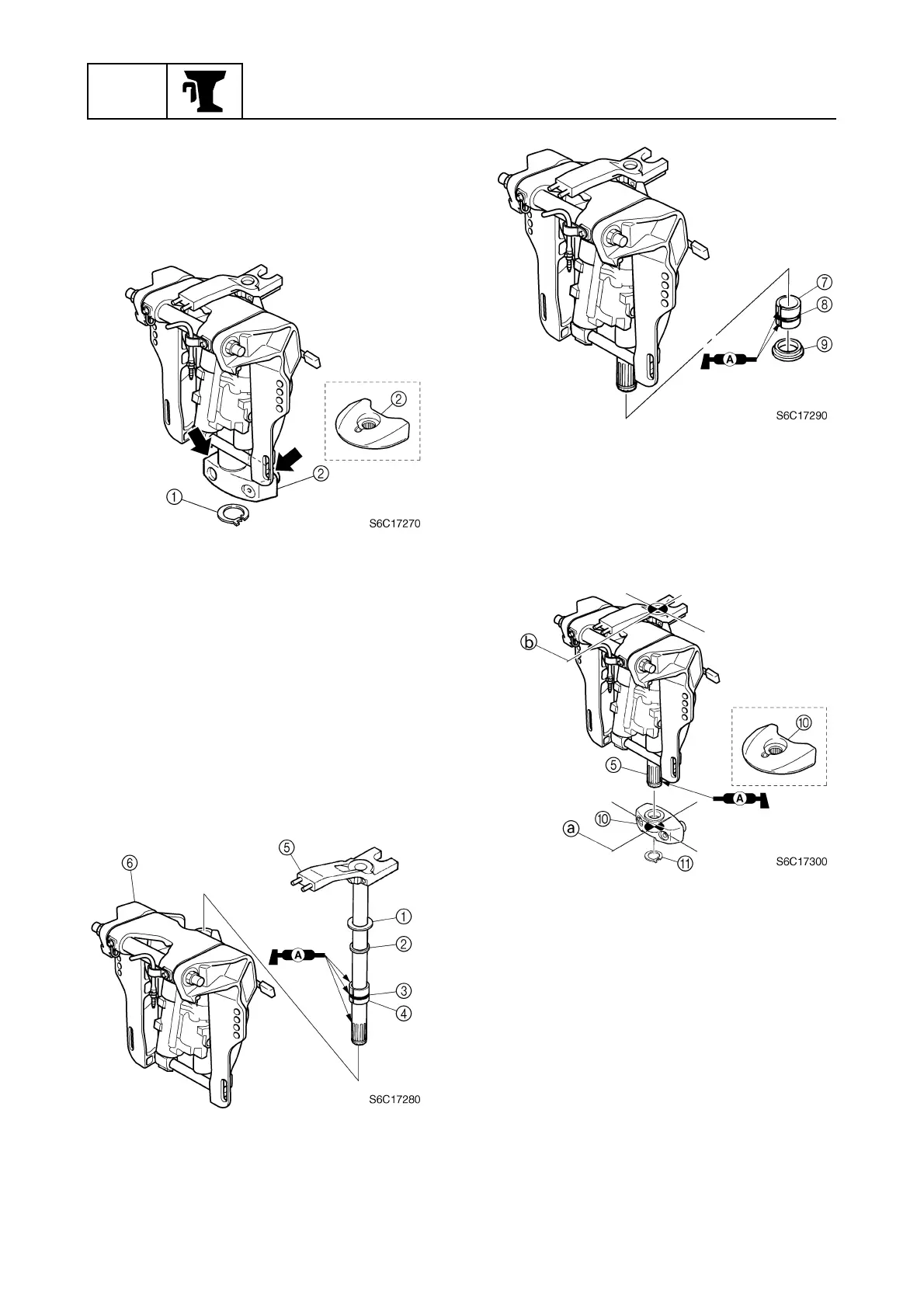

Removing the steering arm
1. Remove the circlip
1
.
2. Remove the steering yoke
2
by striking
it with a plastic hammer.
3. Remove the steering arm from the swivel
bracket assembly by pulling the arm off
the bracket.
Installing the steering arm
1. Install the washer
1
, bushing
2
, new O-
ring
3
, and bushing
4
onto the steering
arm
5
.
2. Place the swivel bracket
6
in an upright
position, and then install the steering arm
onto the swivel bracket assembly.
3. Install the bushing
7
, new O-ring
8
, and
bushing
9
onto the swivel bracket
assembly.
4. Install the steering yoke
0
onto the
steering arm
5
by aligning the center
a
of the yoke with the center
b
of the
steering arm.
5. Install the circlip
A
.
6. Inject grease into the grease nipple until
grease comes out from both the upper
and lower bushings
c
.
