Yamaha F50F - Electronic Control System

GEN
INFO
General information
1-9
6C13G11
Electronic control system
The electronic control system is built up by the sensors and the ECM (Electric control Module).
The ECM receives signals from the sensors and determines the air and fuel mixture (A/F), and igni-
tion timing.
Under various condition, the ECM gives the best-suitable engine operation.
In addition, warning control, fail-safe control, a self-diagnosis function, etc., are equipped to
increase reliability.
1
Sensor assembly
(intake air temperature and intake air
pressure)
2
ECM
3
Throttle position sensor
4
Oil pressure switch
5
Cooling water temperature sensor
6
Pulser coil

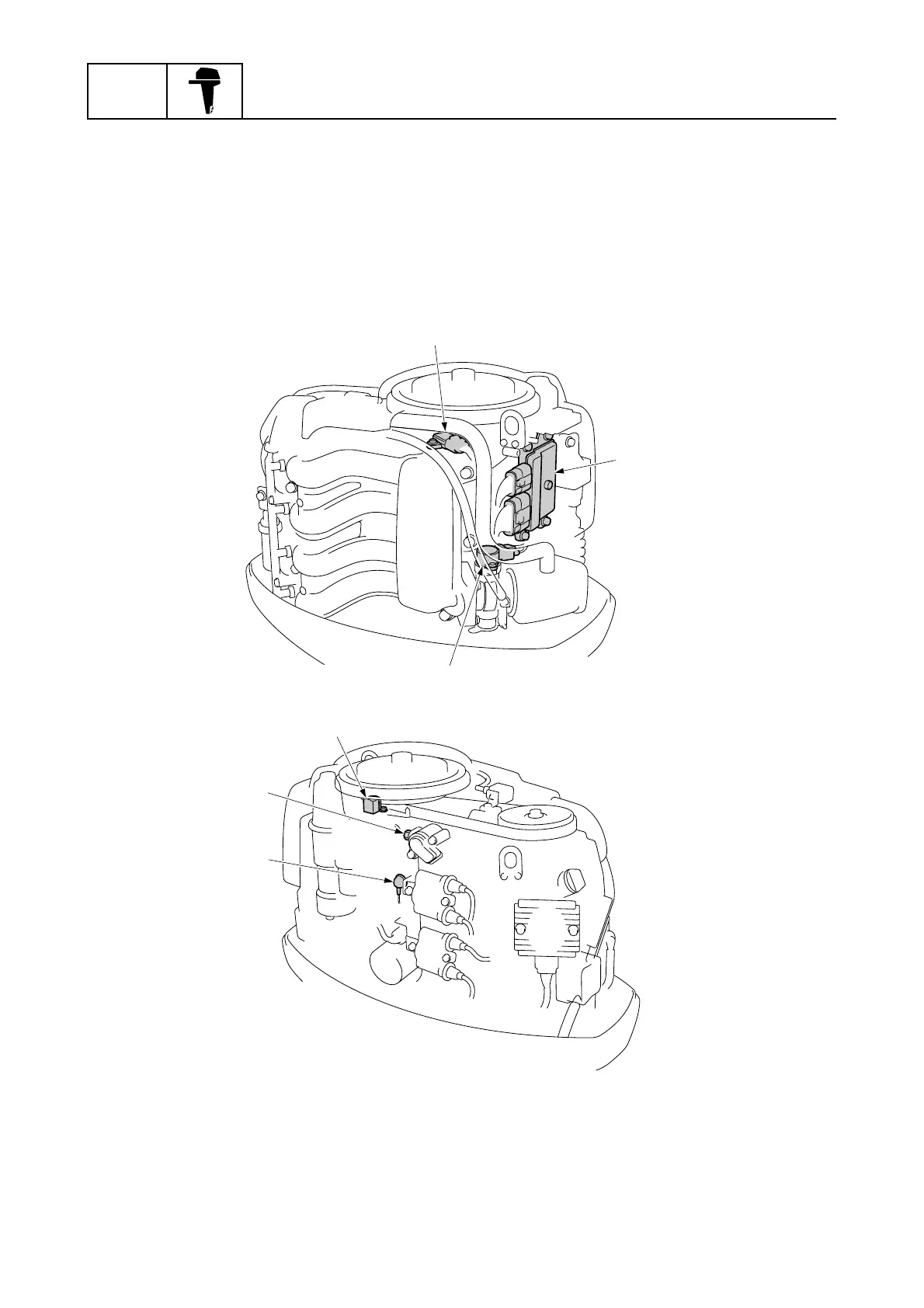

S6C11150
1
2
3
4
5
6
