Yamaha F50F - Assembling the Forward Gear; Assembling the Drive Shaft; Installing the Pinion

LOWR
Lower unit
6-17
6C13G11

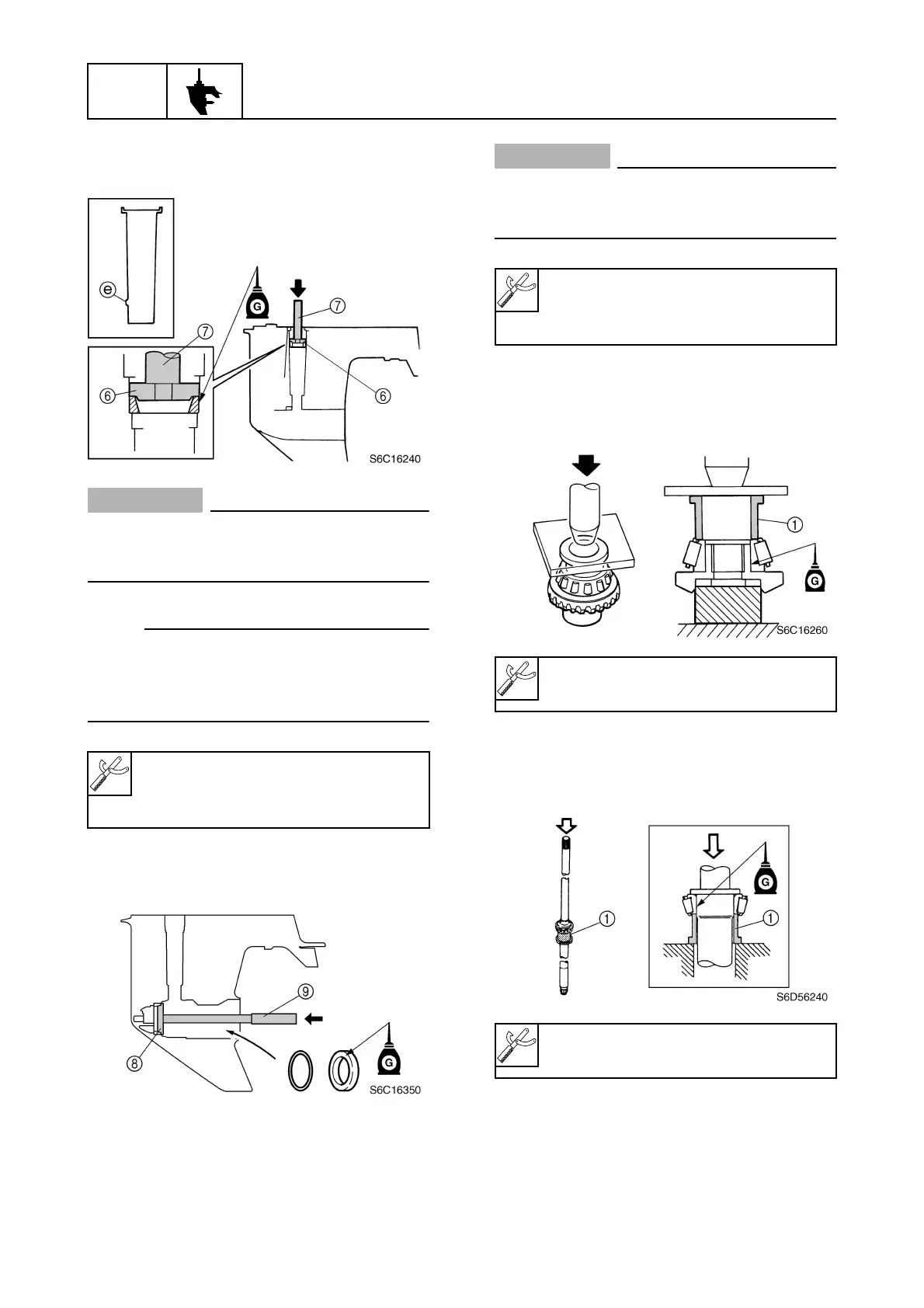

3. Install the sleeve, original shim(s), and
taper roller bearing outer race.
CAUTION:
Add or remove shim(s), if necessary, if
replacing the taper roller bearing or lower
case.
NOTE:
• Apply gear oil to the inside and outside of
the sleeve before installation.
• Install the sleeve with the projection
e
fac-
ing forward.
4. Install the original shim(s) and taper roller
bearing outer race.
CAUTION:
Add or remove shim(s), if necessary, if
replacing the taper roller bearing or lower
case.
Assembling the forward gear
1. Install a new taper roller bearing into the
forward gear using a press.
Assembling the drive shaft
1. Install a new drive shaft bearing onto the
drive shaft using a press.
Installing the pinion
1. Install the forward gear, then the drive
shaft assembly, pinion, and pinion nut,
and then tighten the nut to the specified
torque.
Bearing outer race attachment
6
:
90890-06627
Driver rod LS
7
: 90890-06606
Bearing outer race attachment
8
:
90890-06622
Driver rod LL
9
: 90890-06605
Bearing inner race attachment
1
:
90890-06639
Bearing inner race attachment
1
:
90890-06644
