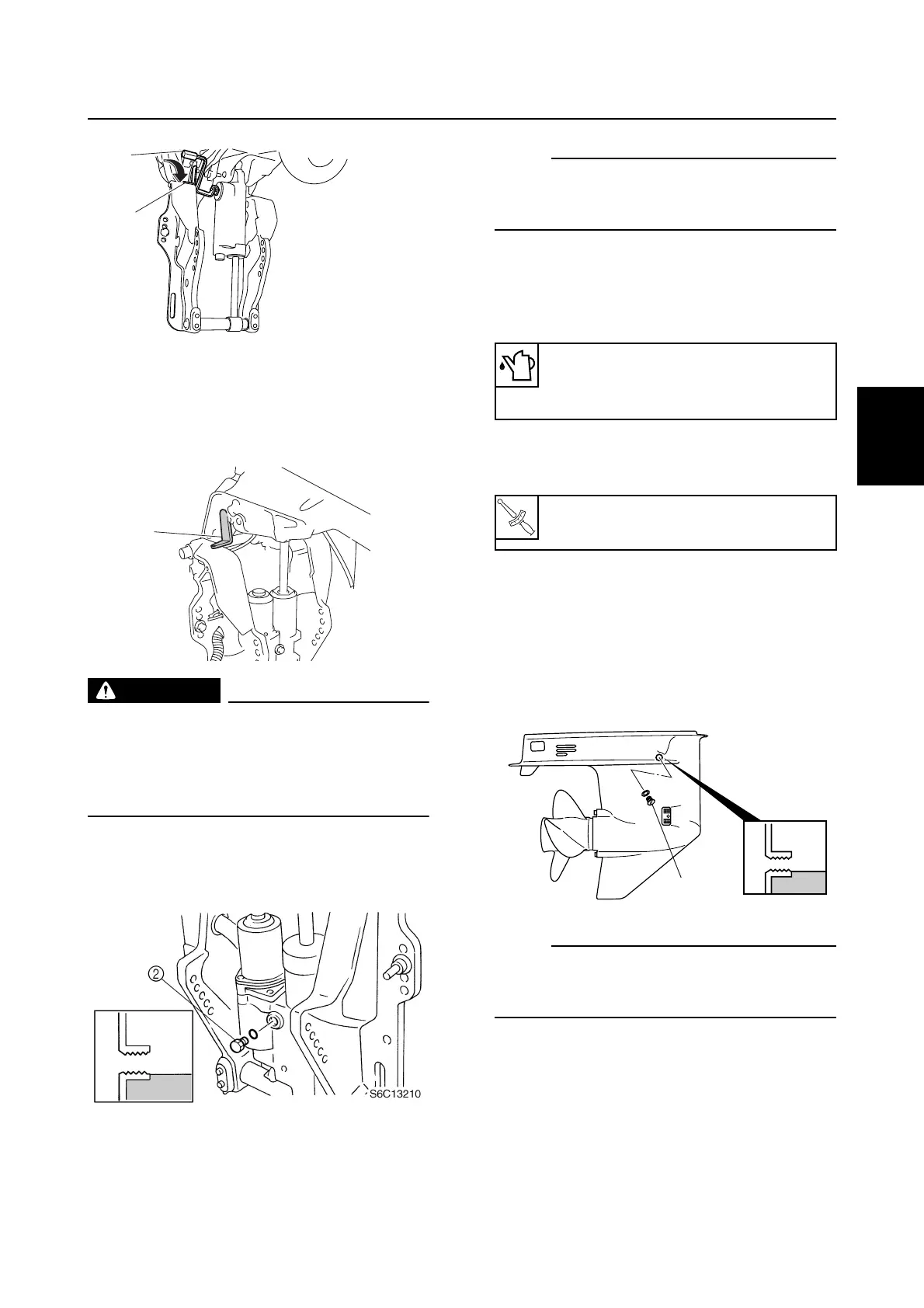

Checking the power trim and tilt fluid
level
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
2. Remove the reservoir cap
2
, and then
check the fluid level in the reservoir.
NOTE:
If the fluid is at the correct level, the fluid
should overflow out of the filler hole when the
reservoir cap is removed.
3. If necessary, add sufficient fluid of the
recommended type until it overflows out
of the filler hole.
4. Install the reservoir cap, and then tighten
it to the specified torque.
Lower unit
3
Checking the gear oil level
1. Fully tilt the outboard motor down.
2. Remove the check screw
1
, and then
check the gear oil level in the lower case.
NOTE:
If the oil is at the correct level, the oil should
overflow out of the check hole when the
check screw is removed.
S6C13360
1
2
1
S6C13300
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
Reservoir cap:
7 N·m (0.7 kgf·m, 5.2 ft·lb)
S60V3320
1
