Yamaha F50F - Upper Case

BRKT
Bracket unit
7-13
6C13G11

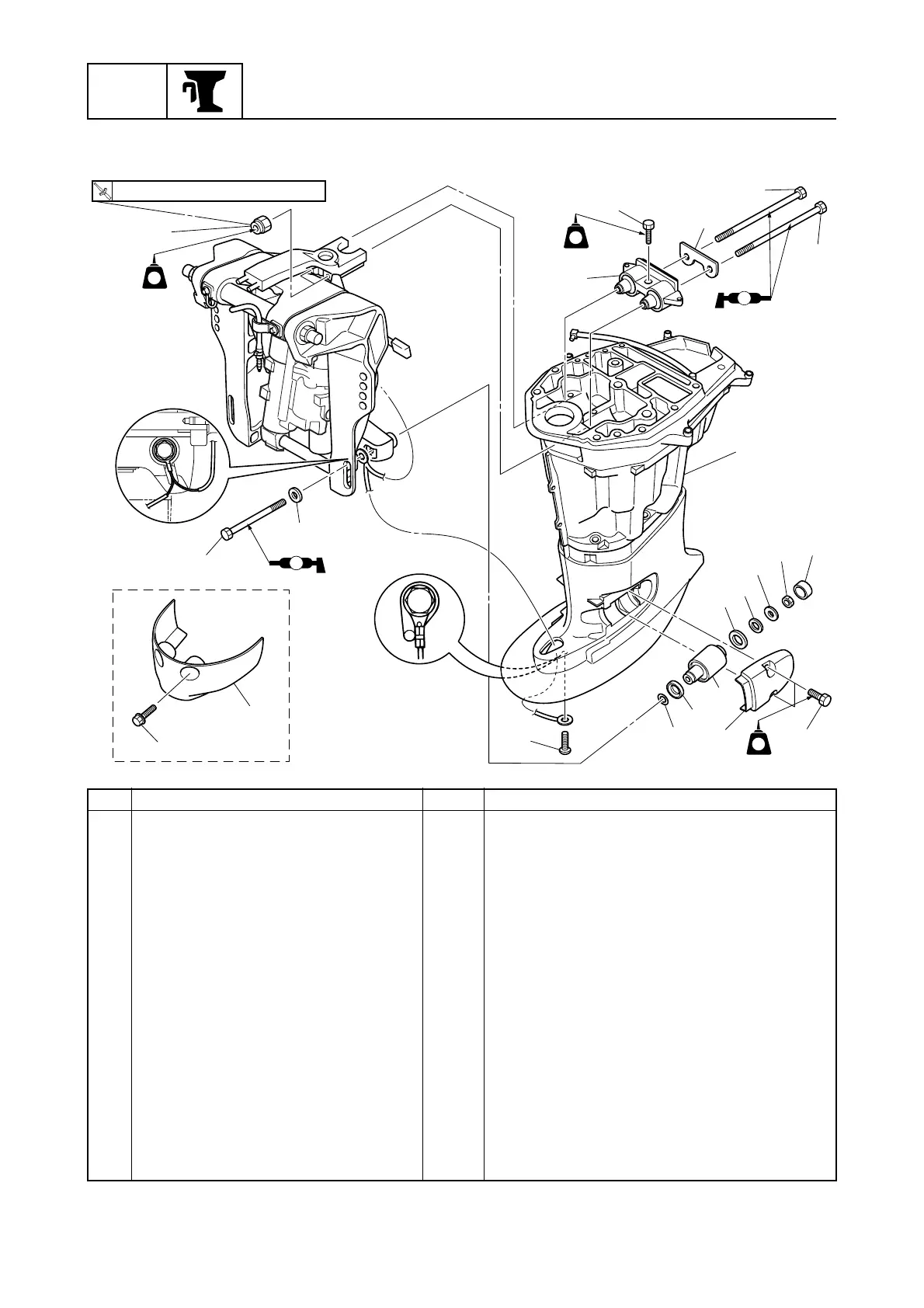

Upper case
7
No. Part name Q’ty Remarks
1 Upper case assembly 1
2Nut 2
3 Bolt 2 M12
×
170 mm
4 Washer 2
5Bolt 3 M8
×
30 mm
6 Upper mount 1
7Plate 1
8Bolt 2 M8
×
175 mm
9Cap 2
10 Nut 2
11 Mount cover 2
12 Washer 2
13 Rubber washer 2
14 Washer 2
15 Lower mount 2
16 Grommet 2
17 Washer 2
S6C17080
21
20
19
2
3
4
17
16
15
14
13
12
10
9
1
11
18
5
6
7
8
8
T
R
.
.
24 N
·
m (2.4 kgf
·
m, 17.7 ft
·
Ib)
LT
271
AA
LT
572
LT
LT
572
LT
AA
