Yamaha F50F - Page 209

6C13G11
7-12
1
2
3
4
5
6
7
8
9
7
No. Part name Q’ty Remarks
18 Cowling lock lever 1
19 Washer 1
20 Wave washer 1
21 Bushing 1
22 Bolt 4 M6
×
30 mm
23 Grommet 4
24 Collar 4
25 Grommet 4
26 Grommet 1 Remote control model
27 PTT motor lead 1 Power trim and tilt model
28 Bolt 2 M6
×
20 mm
29 Stay 1
30 Power trim and tilt switch 1 Power trim and tilt model
31 Rubber seal 1
32 Grommet 1 Hydro tilt model
S6C17070
1
2
4
3
5
6
8
13
12
11
10
9
7
26
25
32
23
22
28
29
31
21
15
16
17
14
20
19
18
30
24
27
AA
LT
271
AA
T
R
.
.
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)

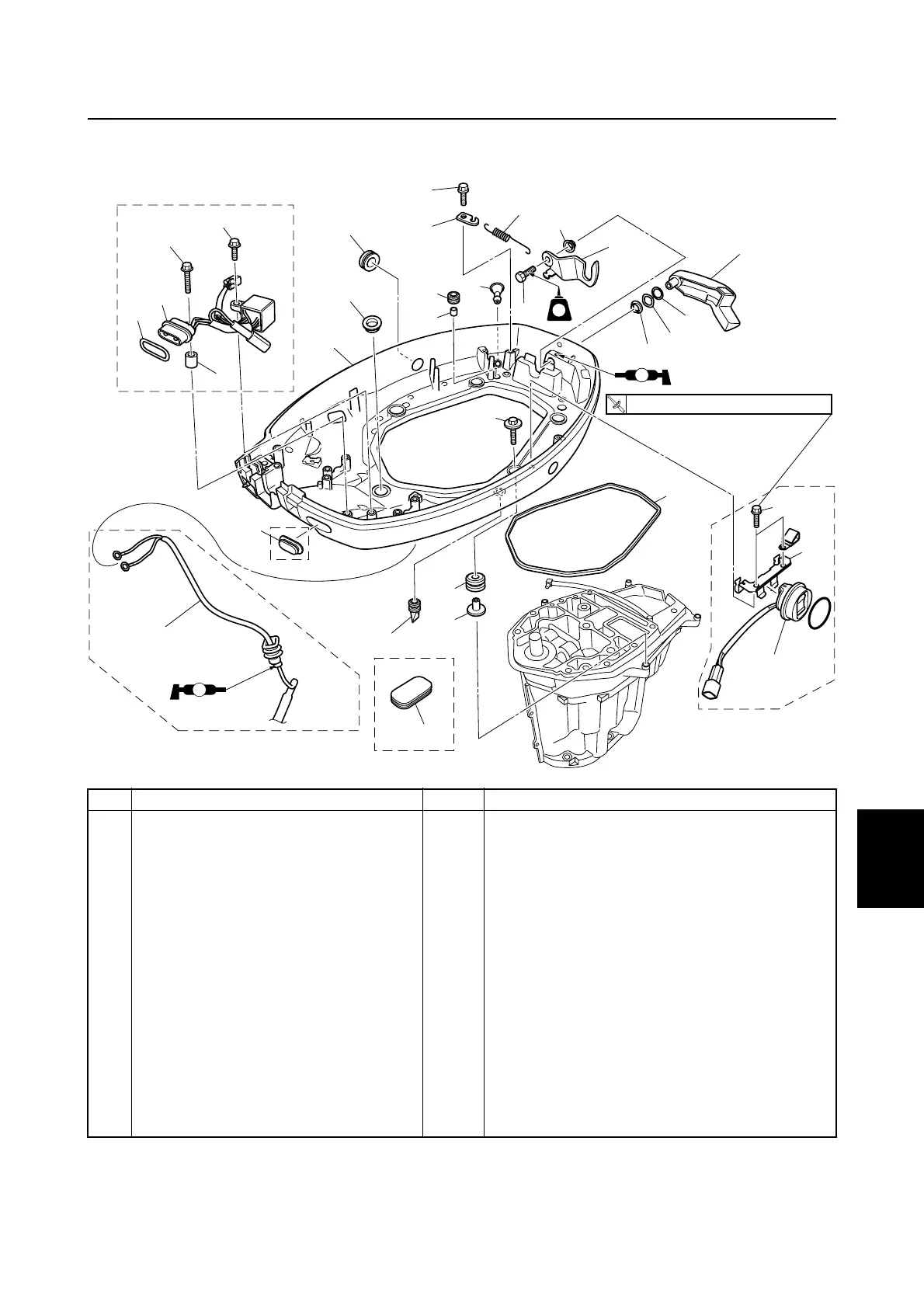

Bottom cowling
