Yamaha F50F - Page 208

BRKT

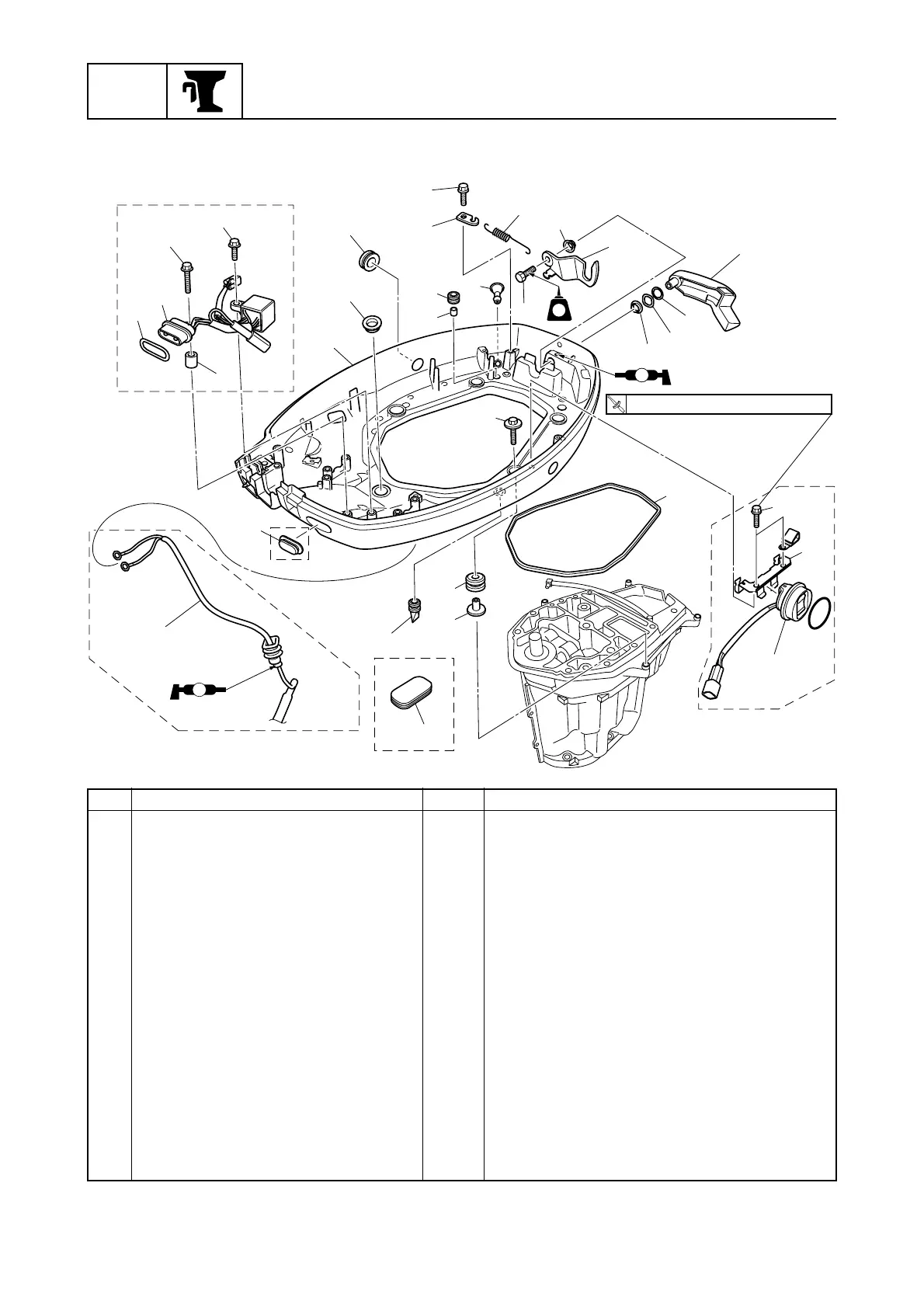

Bracket unit
7-11
6C13G11
7
No. Part name Q’ty Remarks
1 Seal 1 Tiller handle model
2 Warning indicator 1 Tiller handle model
3 Collar 1 Tiller handle model
4Bolt 1 M6
×
35 mm, Tiller handle model
5Bolt 1 M6
×
20 mm, Tiller handle model
6Grommet 1
7 Bottom cowling 1
8Grommet 1
9 Collar 2
10 Grommet 2
11 Water outlet 1
12 Hook 1
13 Bolt 1 M6
×
20 mm
14 Spring 1
15 Bolt 1 M6
×
14 mm
16 Lever 1
17 Bushing 1
S6C17070
1
2
4
3
5
6
8
13
12
11
10
9
7
26
25
32
23
22
28
29
31
21
15
16
17
14
20
19
18
30
24
27
AA
LT
271
AA
T
R
.
.
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
