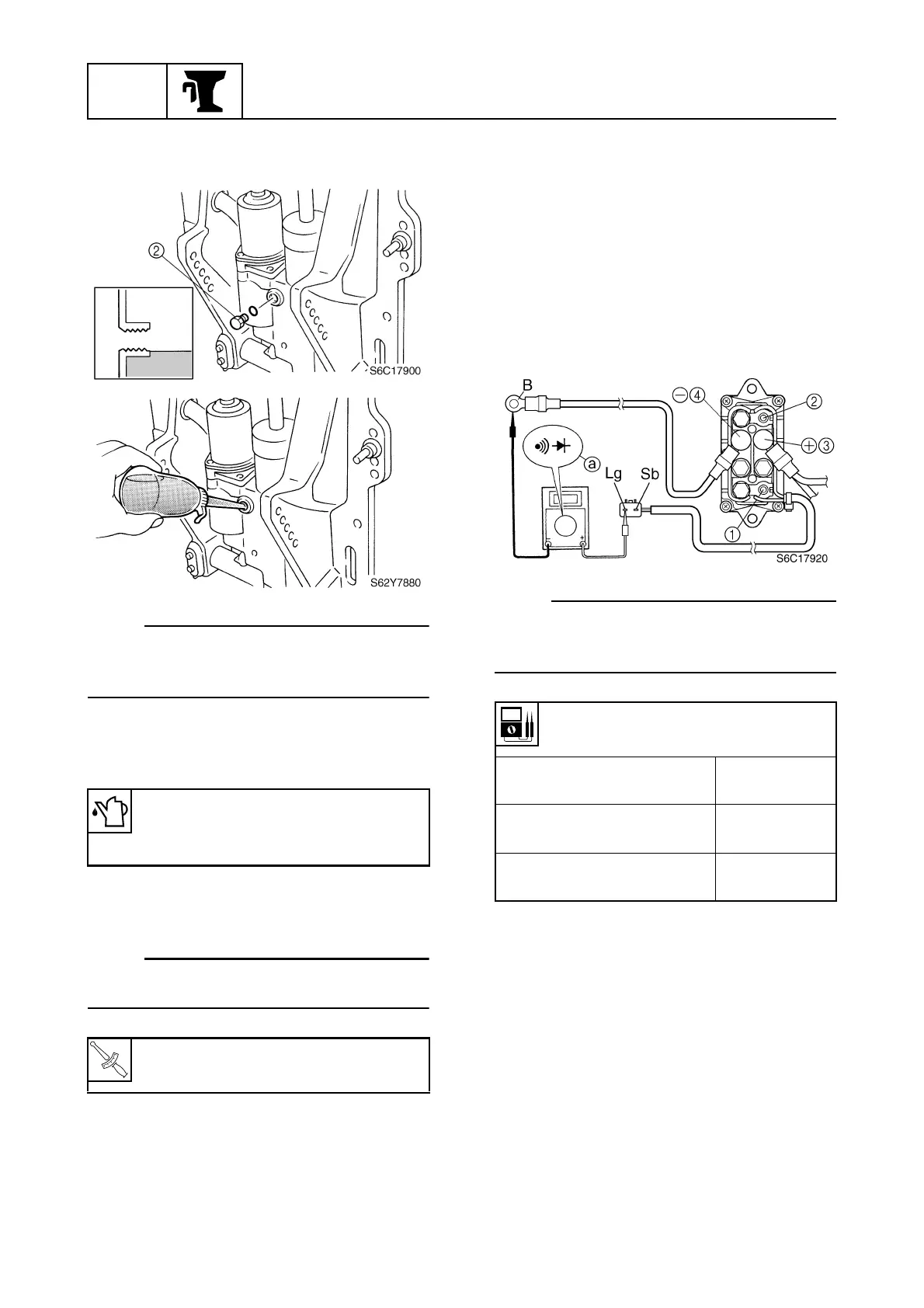

7. Remove the reservoir cap
2
, and then
check the fluid level in the reservoir.
NOTE:
If the fluid is at the correct level, the fluid
should overflow out of the filler hole when the
reservoir cap is removed.
8. If necessary, add sufficient fluid of the
recommended type to the correct level.
9. Install the reservoir cap, and then tighten
it to the specified torque.
NOTE:
Repeat this procedure until the fluid remains
at the correct level.
Power trim and tilt electrical
system
7
Checking the fuse
1. Check the fuse for continuity. Replace if
there is no continuity.
Checking the power trim and tilt
relay
1. Check the power trim and tilt relay for
continuity. Replace if out of specification.
NOTE:
Be sure to set the measurement range
a
shown in the illustration when checking for
continuity.
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
Reservoir cap:
7 N·m (0.7 kgf·m, 5.2 ft·lb)
Power trim and tilt relay continuity
Sky blue (Sb) – Black (B)
Light green (Lg) – Black (B)
Continuity
Terminal
1
– Terminal
4
Terminal
2
– Terminal
4
Continuity
Terminal
1
– Terminal
3
Terminal
2
– Terminal
3
No continuity
