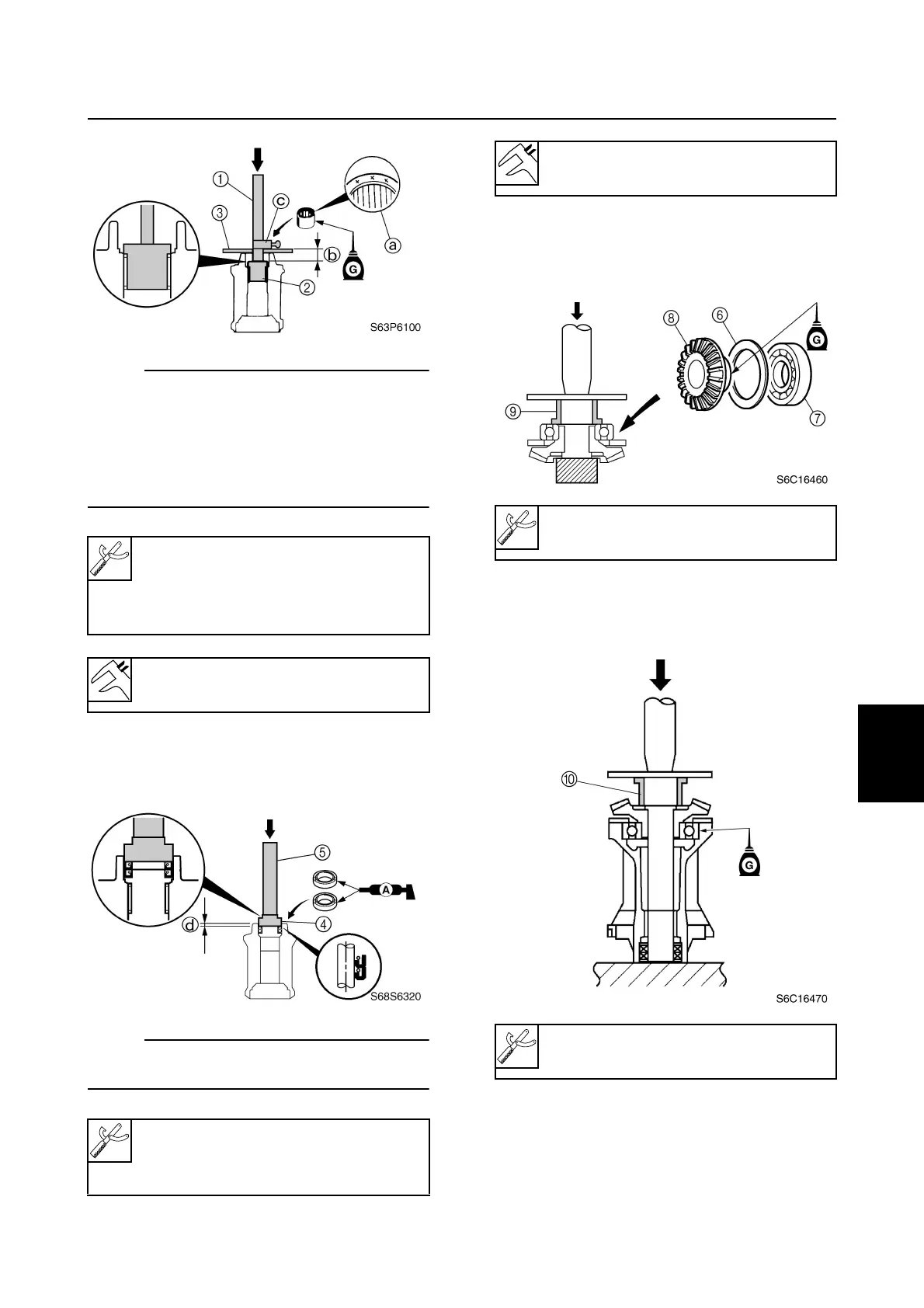

NOTE:
• Install the needle bearing with the manufac-
ture identification mark
a
facing toward the
oil seal (propeller side).
• When using the driver rod, do not strike the
special tool in a manner that will force the
stopper
c
out of place.
2. Apply grease to the new oil seals, and
then install them into the propeller shaft
housing to the specified depth.
NOTE:
Install an oil seal halfway into the propeller
shaft housing, then the other oil seal.
3. Install the thrust washer
6
and new ball
bearing
7
to the reverse gear
8
using a
press.
4. Install the reverse gear assembly into the
propeller shaft housing using a press.
Driver rod SS
1
: 90890-06604
Needle bearing attachment
2
:
90890-06612
Bearing depth plate
3
: 90890-06603
Depth
b
:
25.25
±
0.25 mm (0.990
±
0.010 in)
Ball bearing attachment
4
:
90890-06655
Driver rod LS
5
: 90890-06606
Depth
d
:
5.0
±
0.5 mm (0.200
±
0.020 in)
Bearing inner race attachment
9
:
90890-06639
Bearing inner race attachment
0
:
90890-06661
Propeller shaft housing (FT50, FT60)
