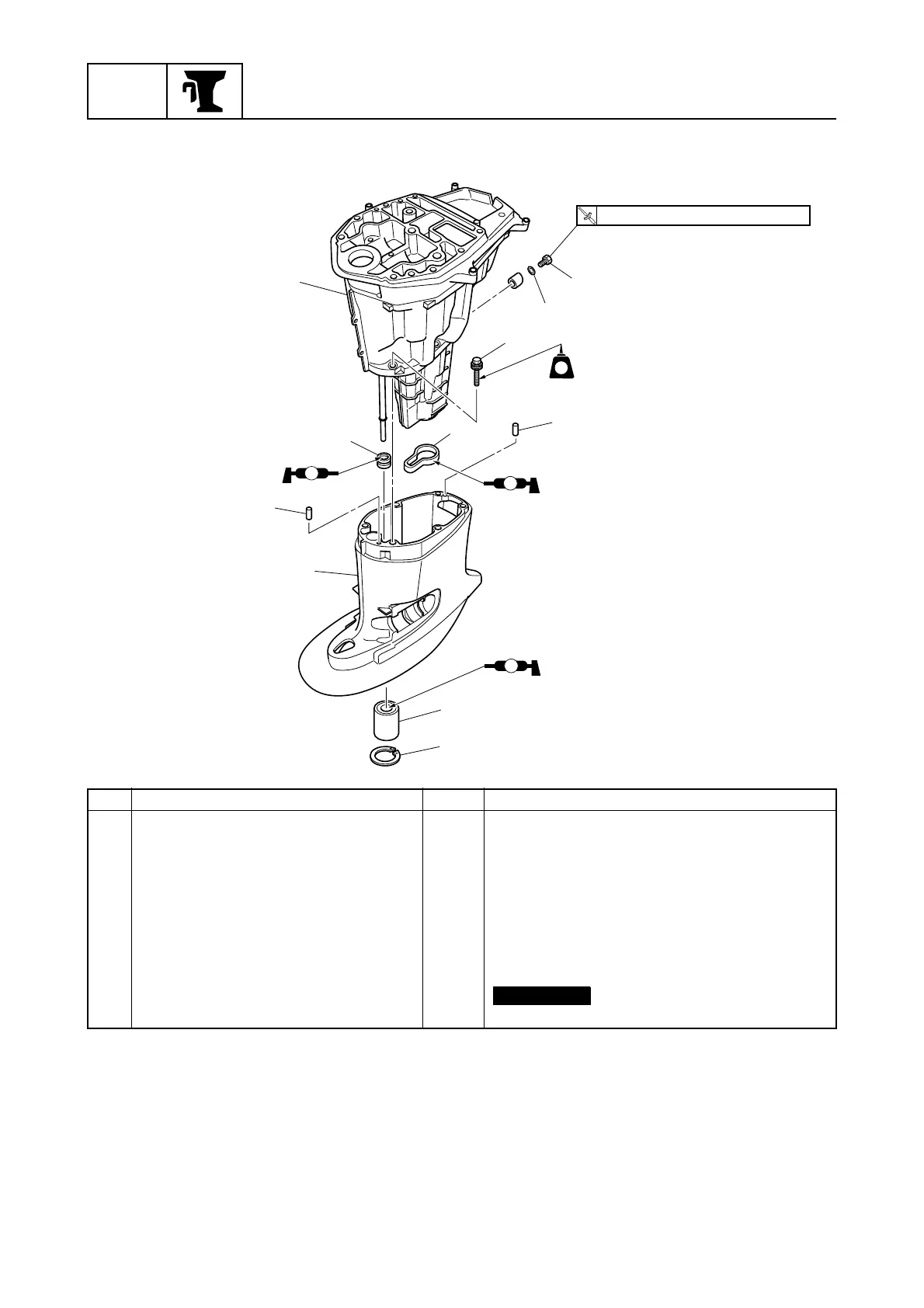

Yamaha F50F - Page 212

BRKT
Bracket unit
7-15
6C13G11
7
No. Part name Q’ty Remarks
1 Muffler assembly 1
2 Rubber seal 1
3Grommet 1
4 Dowel 2
5 Upper case 1
6 Drive shaft bushing 1
7 Circlip 1
8 Bolt 6 M10
×
45 mm
9Gasket 1
Not reusable
10 Drain bolt 1 M14
×
12 mm
S6C17090
1
3
2
8
4
4
5
6
7
9
10
T
R
.
.
17 N
·
m (1.7 kgf
·
m, 12.5 ft
·
Ib)
LT
572
LT
AA
AA
AA
