Yamaha F50F - Page 234

BRKT

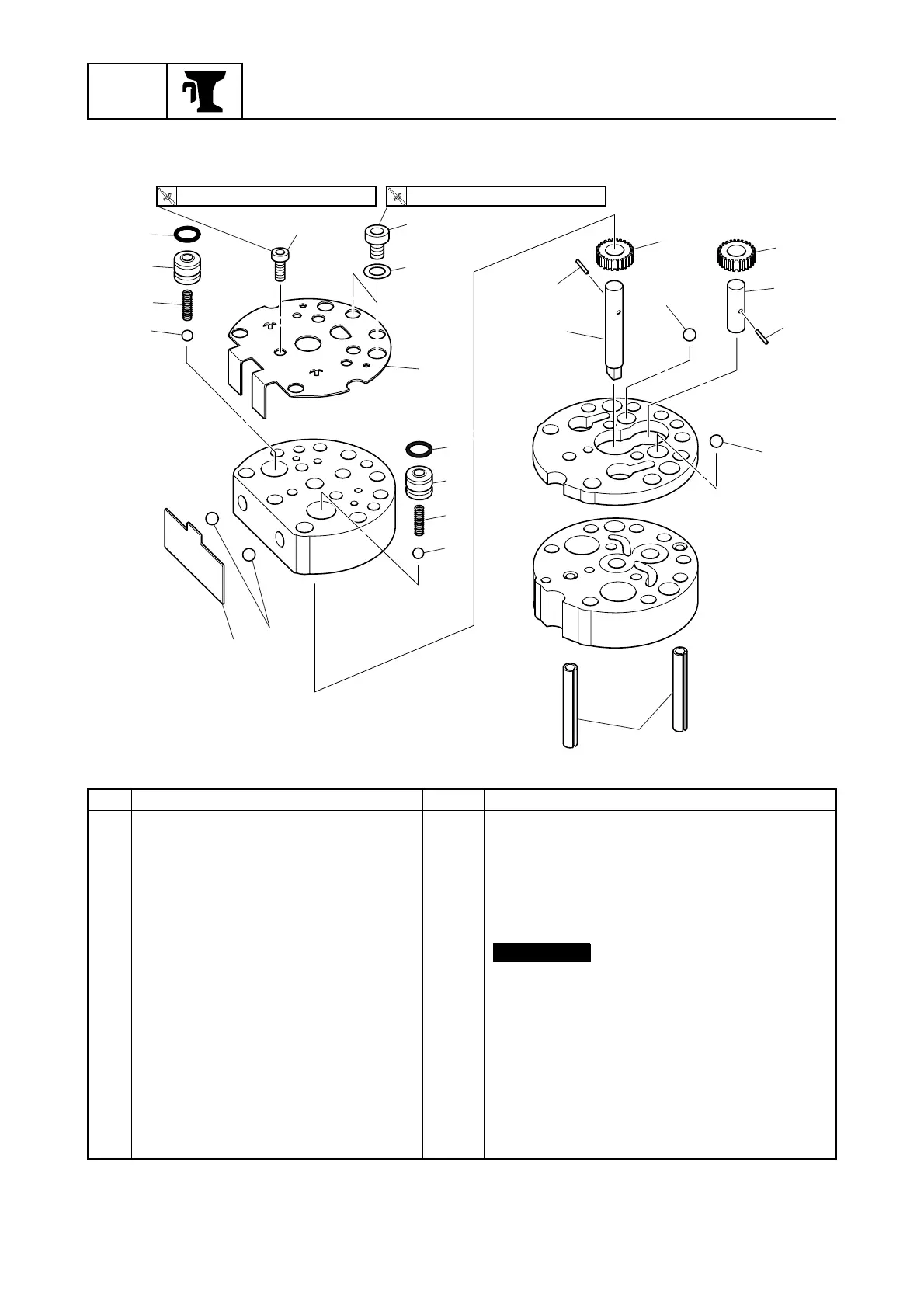

Bracket unit
7-37
6C13G11
7
No. Part name Q’ty Remarks
1 Manual release spring 1
2Ball 2
3Bracket 1
4Bolt 1 M3
×
5 mm
5Bolt 2 M5
×
6 mm
6 Washer 2
7O-ring 2
Not reusable
8 Adapter 2
9Spring 2
10 Ball 2
11 Gear 2
12 Drive shaft 1
13 Pin 2
14 Driven shaft 1
15 Ball 2
16 Pin 2
