CHK
ADJ

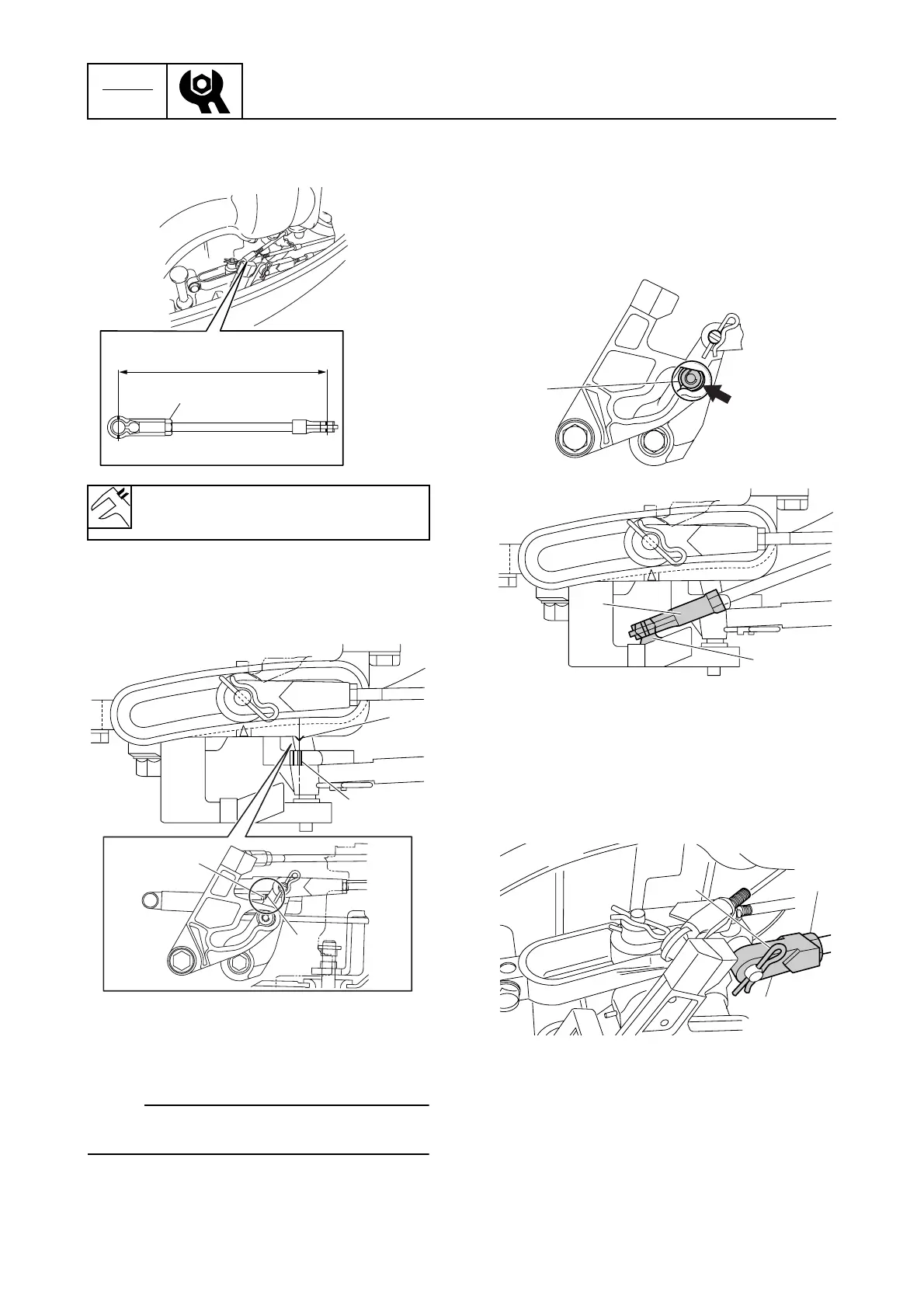

Periodic checks and adjustments
3-11
6C13G11
3. Loosen the locknut
1
, and then adjust
the throttle link rod length
a
.
4. Align the alignment mark
b
on the throt-
tle control lever with the alignment mark
c
on the bracket.
5. Connect the throttle link rod to the throttle
body.
NOTE:
Connect the end of the throttle link rod that
does not have a locknut to the throttle body.
6. Contact the cam roller
2
on the throttle
control lever to the throttle cam as
shown, and then adjust the position of
the throttle link rod until the joint
3
of the
throttle link rod is aligned with the joint
4
of the control lever.
7. Connect the throttle link rod to the throttle
link, and then tighten the locknut.
8. Loosen the locknut
5
, remove the clip
6
, and then disconnect the throttle cable
joint
7
.
9. Adjust the throttle cam
8
until the align-
ment mark
d
on the throttle cam is
aligned with the alignment mark
e
on
the bracket.
Throttle link rod length
a
:
121 mm (4.76 in)
a
1
S6C13120
S6C13130
b
c
b
c
S6C13140
2
S6C13150
3
4
S6C13160
6
7
5
