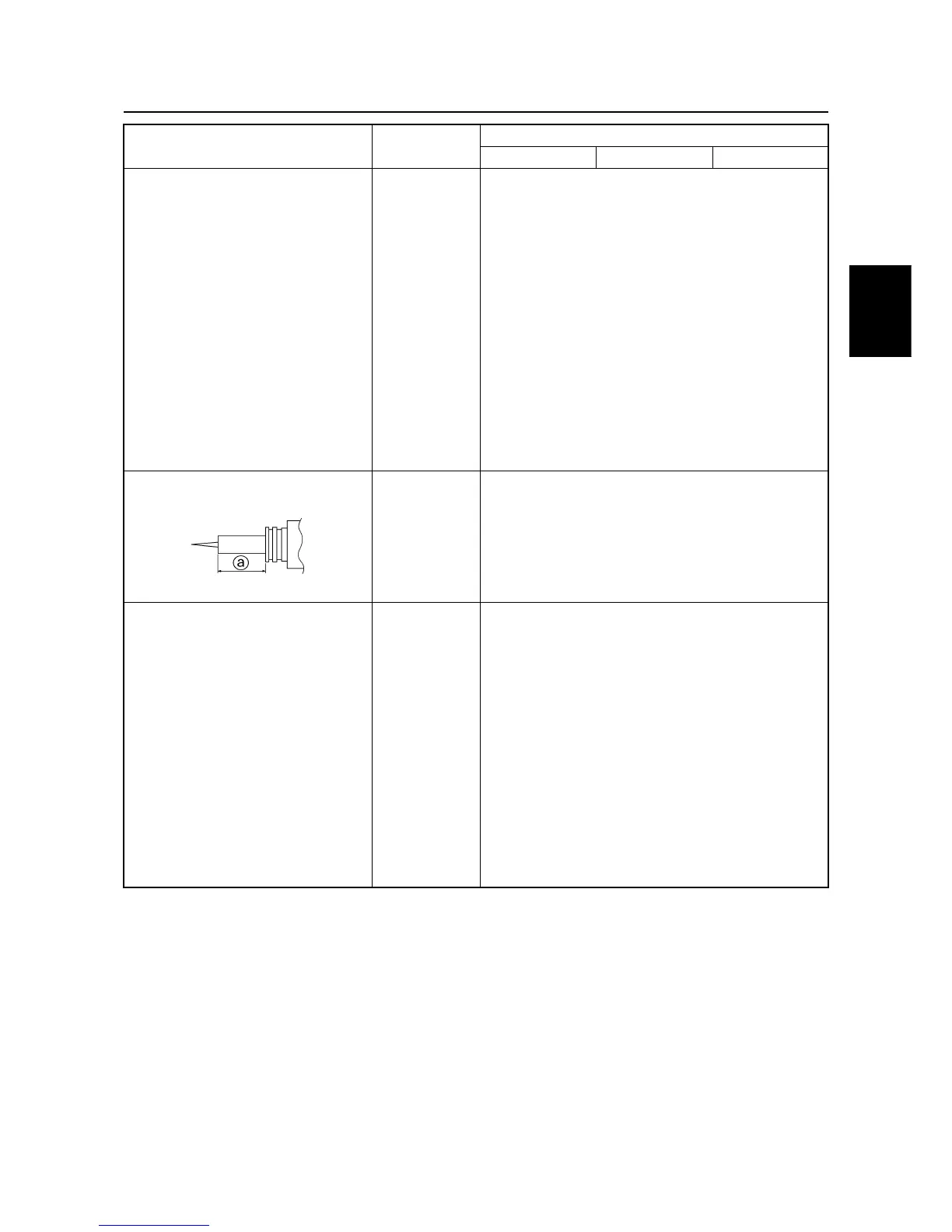

Yamaha FT50C - Page 43

62Y5A11
2-8
1
2
3
4
5
6
7
8
9
Charging system
Fuse A 20
Lighting coil output peak
voltage (G – G)
@ cranking
(*1)
V 11.9
@ 1,500 r/min
(*1)
V42
@ 3,500 r/min
(*1)
V 127
Lighting coil resistance
(*2)
(G – G)
Ω
1.2–1.8
Rectifier Regulator output
peak voltage (R – B)
@ 1,500 r/min
(*1)
V 18.9
@ 3,500 r/min
(*1)
V 19.5
Charging current
A @ 5,000 r/min 10
Enrichment control system
Prime Start
Plunger extended length
a
mm (in) More than 24.6 (0.97)
Power trim and tilt system
Trim sensor
Setting resistance
Ω
9–11
Resistance (P – B)
Ω
10–288.3
Fluid type ATF Dexron
II
Brushes
Standard length mm (in) 10 (0.39)
Wear limit mm (in) 3.5 (0.14)
Commutator
Standard diameter mm (in) 22.0 (0.87)
Wear limit mm (in) 21.0 (0.83)
Mica
Standard undercut mm (in) 1.5 (0.06)
(*1)
Unloaded
(*2)
The figures are for reference only.
Item Unit
Model
FT50CEHD FT50CED FT50CET
Maintenance specifications
