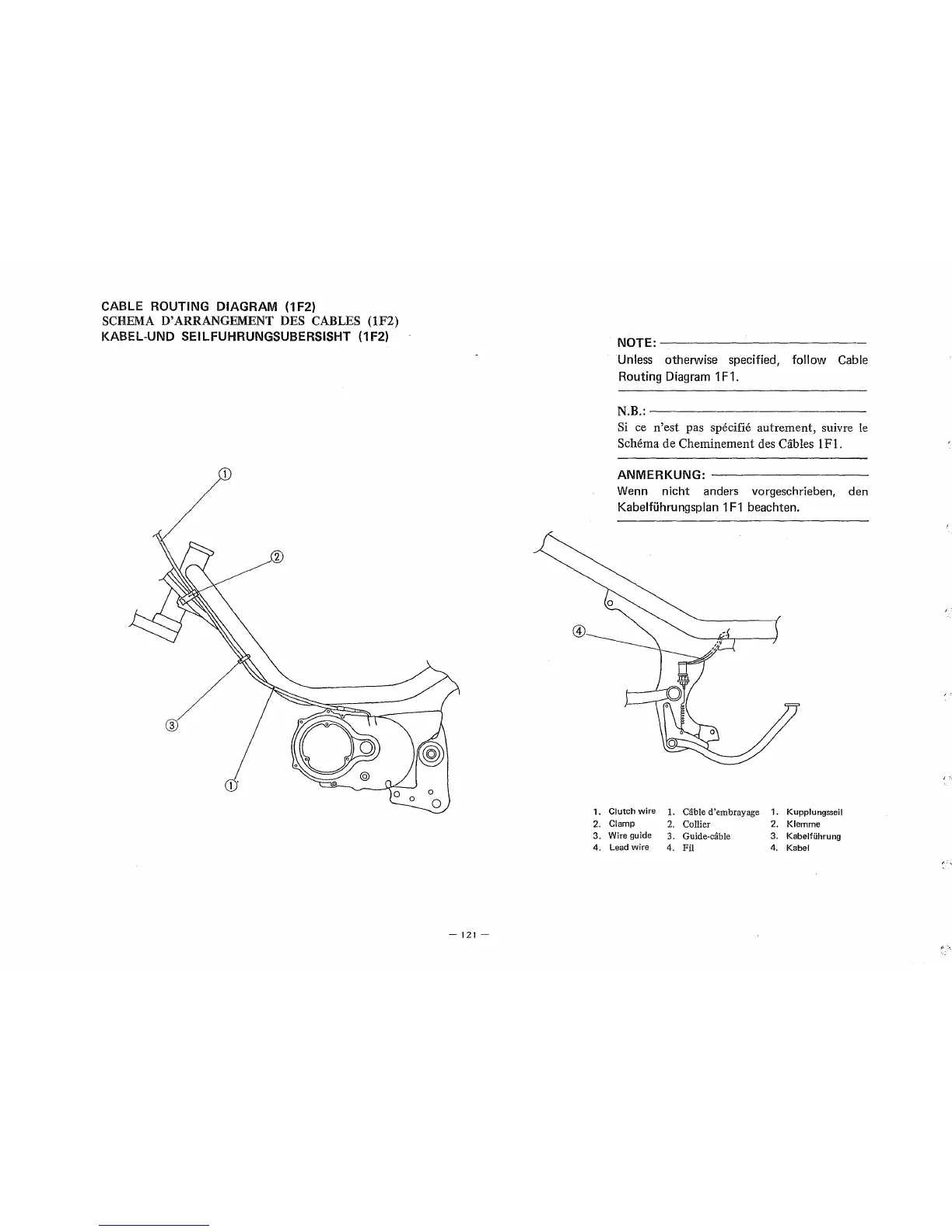

CABLE ROUTING
DIAGRAM
(1
F2)
SCHEMA
D'ARRANGEMENT DES CABLES (1F2)
KABEL-UNO SEILFUHRUNGSUBERSISHT
(1
F2)
-121-
NOTE:~~~~~~~~~~~~
Unless
otherwise
specified, follow Cable
Routing Diagram 1F1.
N.B~:~~~~~~~~~~~~~~
Si ce
n'est
pas specifie
autrement,
suivre le
Schema de Cheminement des Cables
lFl.
ANMERKUNG:
~~~~~~~~
Wenn
nicht
anders vorgeschrieben,
den
Kabelfi.ihrungsplan 1F1
beachten.
1. Clutch wire
1.
Cable d'embrayage 1. Kupplungsseil
2. Clamp 2. Collier 2. Klemme
3.
Wire guide 3. Guide-cable 3. Kabelfiihrung
4.
Lead wire 4.
Fil
4. Kabel
' '
