5.5 Peripheral Devices
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5-33

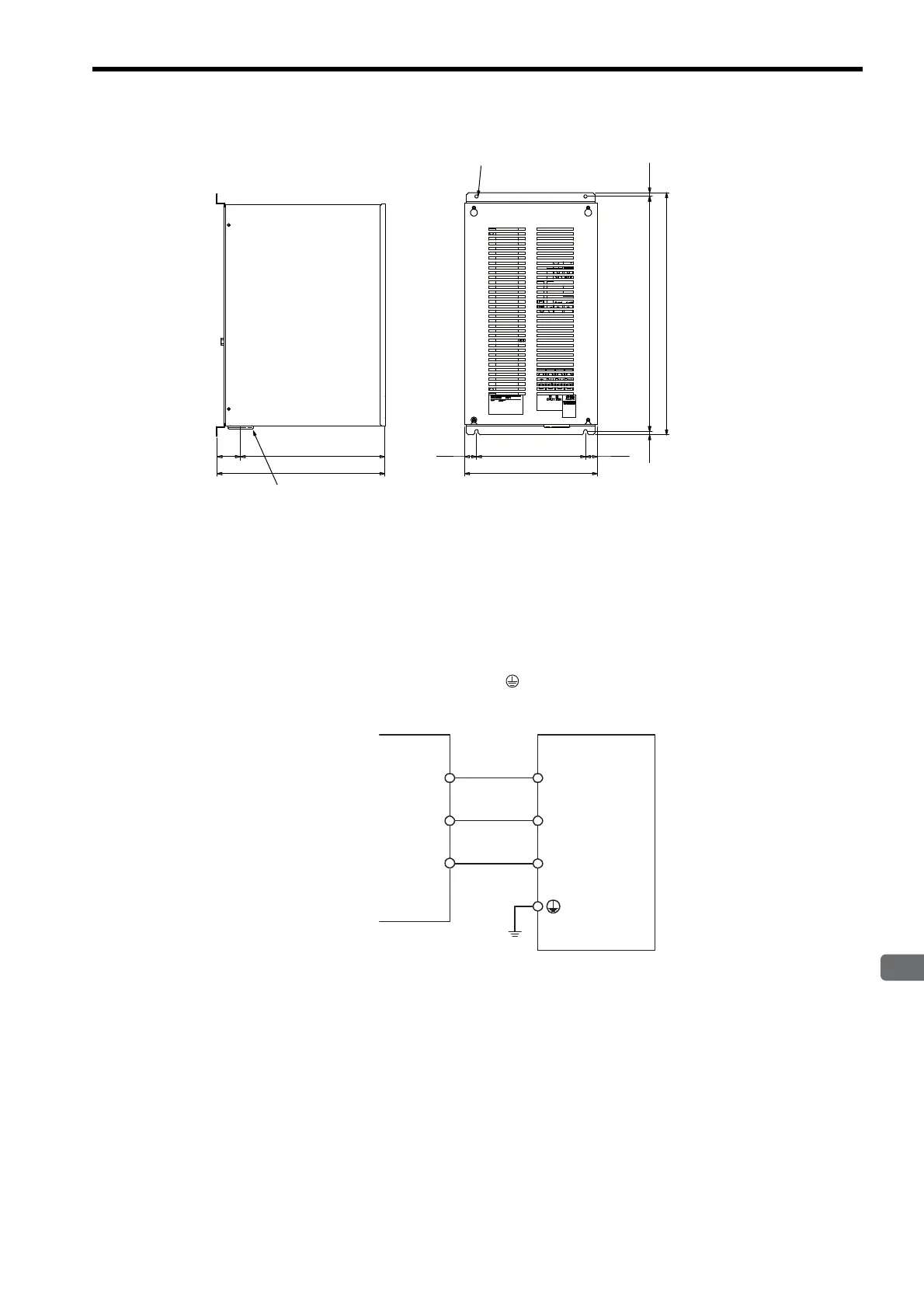

(g) JUSP-DB12 Dynamic Brake Unit
(4) Connections
(a) Using a Yaskawa Dynamic Brake Unit
• SGDM-2BADB, -3ZADB SERVOPACKs
SGDH-2BAEB, -3ZAEB SERVOPACKs
SGDH-2BDEB, -3ZDEB SERVOPACKs
The dynamic brake contactor and surge absorption unit are built into the SERVOPACK. Connect the DU,
DV, and DW terminals and the Frame Ground ( ) on the dynamic brake unit, as sown in the following
diagram.
7.5
24.524.5 225
274
50
298
348
7.5 485
500
Units: mm
Approx. mass: 16 kg
Power line insertion hole
(φ33, with rubber bushing)
4 × M5 mounting holes
DU
DV
DW
DU
DV
DW
SERVOPACK
Dynamic Brake Unit
