5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5-8

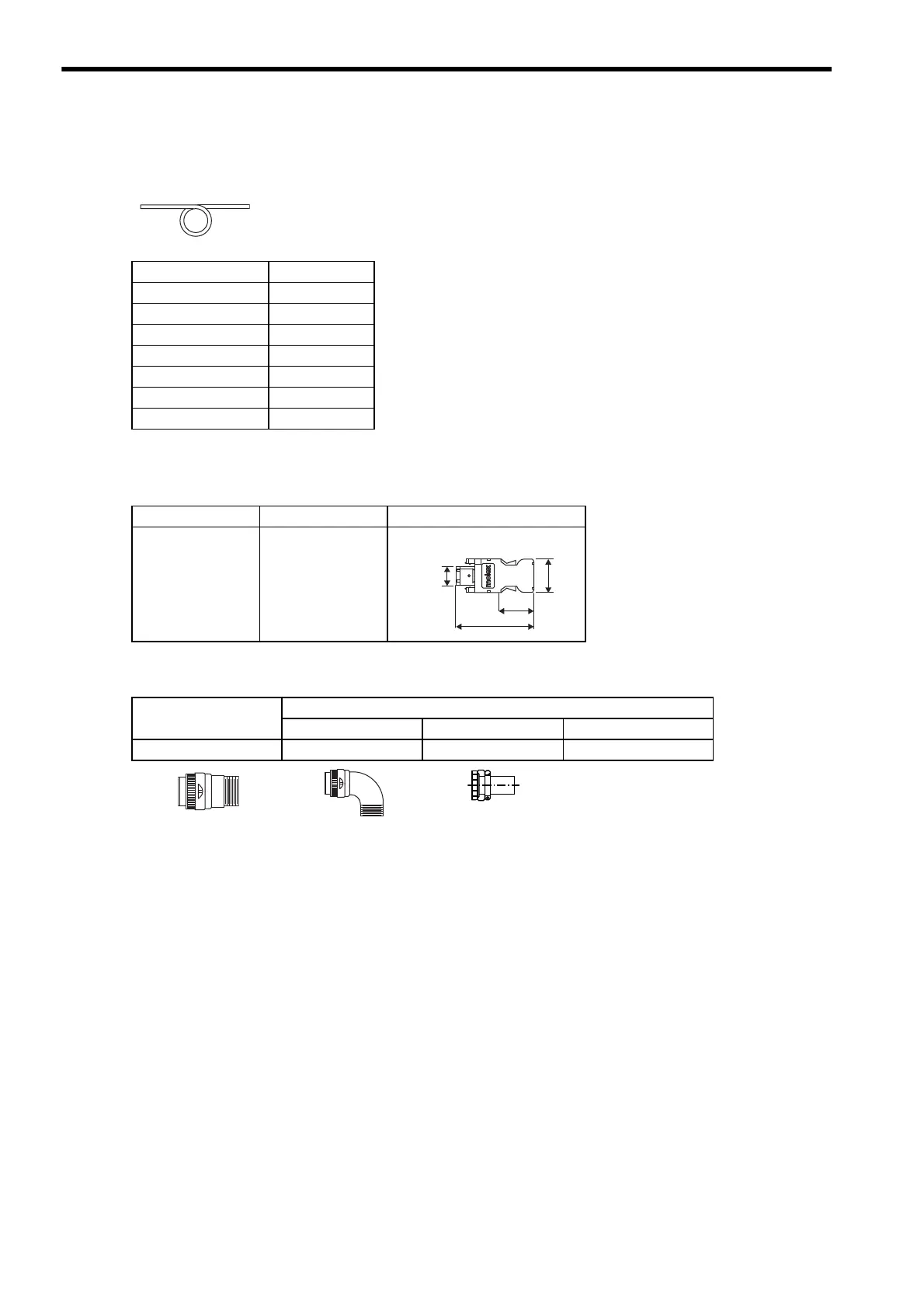

5.3 Connectors and Cables for Encoder Signals
(1) Cable Type
(2) SERVOPACK-end Connector for CN2
(3) Encoder-end Connector
* Manufactured by DDK Ltd.
Cable Type Cable Length
JZSP-CMP29-05
5 m
JZSP-CMP29-10
10 m
JZSP-CMP29-15
15 m
JZSP-CMP29-20
20 m
JZSP-CMP29-30
30 m
JZSP-CMP29-40
40 m
JZSP-CMP29-50
50 m
Units: mm
Model Manufacturer Dimensional Drawing
JZSP-CMP9-1
Molex Japan Co.,
Ltd.
Plug connector (Soldered)
18.4
11
33
37.4
Connector on
Servomotor
Encoder-end Connector Type
Straight Plug * L-shaped Plug * Cable Clamp *
MS3102A20-29P
MS3106B20-29S MS3108B20-29S MS3057-12A
