YASKAWA E-II Series User Manual

3.3 Mechanical Specifications of Servomotors
3
Servomotor Specifications and Dimensional Drawings
3-13

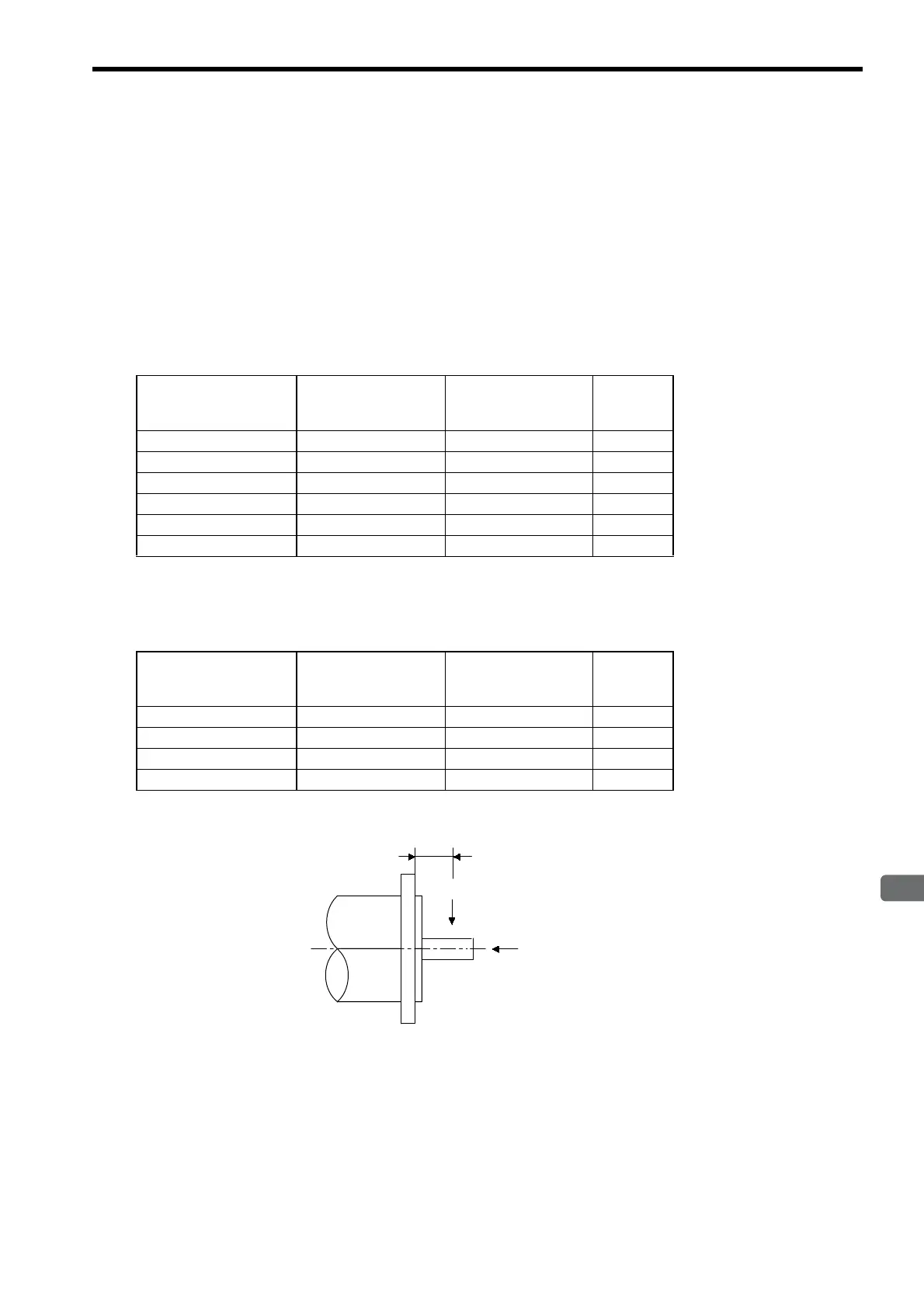

3.3.2 Allowable Radial and Thrust Loads
The following table shows the allowable loads applied to the SGMVH servomotor shaft end.
Design the mechanical system so radial and thrust loads applied to the servomotor shaft end during operation
falls within the ranges shown in the following table.
Note that even when using a servomotor below the allowable radial load, the following imbalance or the loads
may damage the bearings.
• The imbalance of parts that are connected to the shaft end
• Rotating loads generated by unmatched concentricity, when the bearing is attached to the extended shaft
end.
(1) 1500 min
-1
Series
Note: Allowable radial and thrust loads shown above are the maximum values that could be
applied to the shaft end from motor torque or other loads.
(2) 800 min
-1
Series
Note: Allowable radial and thrust loads shown above are the maximum values that could be
applied to the shaft end from motor torque or other loads.
Servomotor Model
SGMVH-
Allowable Radial Load
Fr [N]
Allowable Thrust
Load
Fs [N]
LR
[mm]
2BAB, 2BDB
5880 2156 100
3ZAB, 3ZDB
6272 2156 100
3GAB, 3GDB
7448 2156 100
4EDB
7840 2156 100
5EDB
8428 2156 110
7EDB
10100 2156 120
Servomotor Model
SGMVH-
Allowable Radial Load
Fr [N]
Allowable Thrust
Load
Fs [N]
LR
[mm]
2BAD, 2BDD
7448 2156 100
3ZAD, 3ZDD
8428 2156 110
3GAD, 3GDD
8428 2156 110
4EDD
10100 2156 120
LR
Fr
Fs
