9 Adjustments
9-20

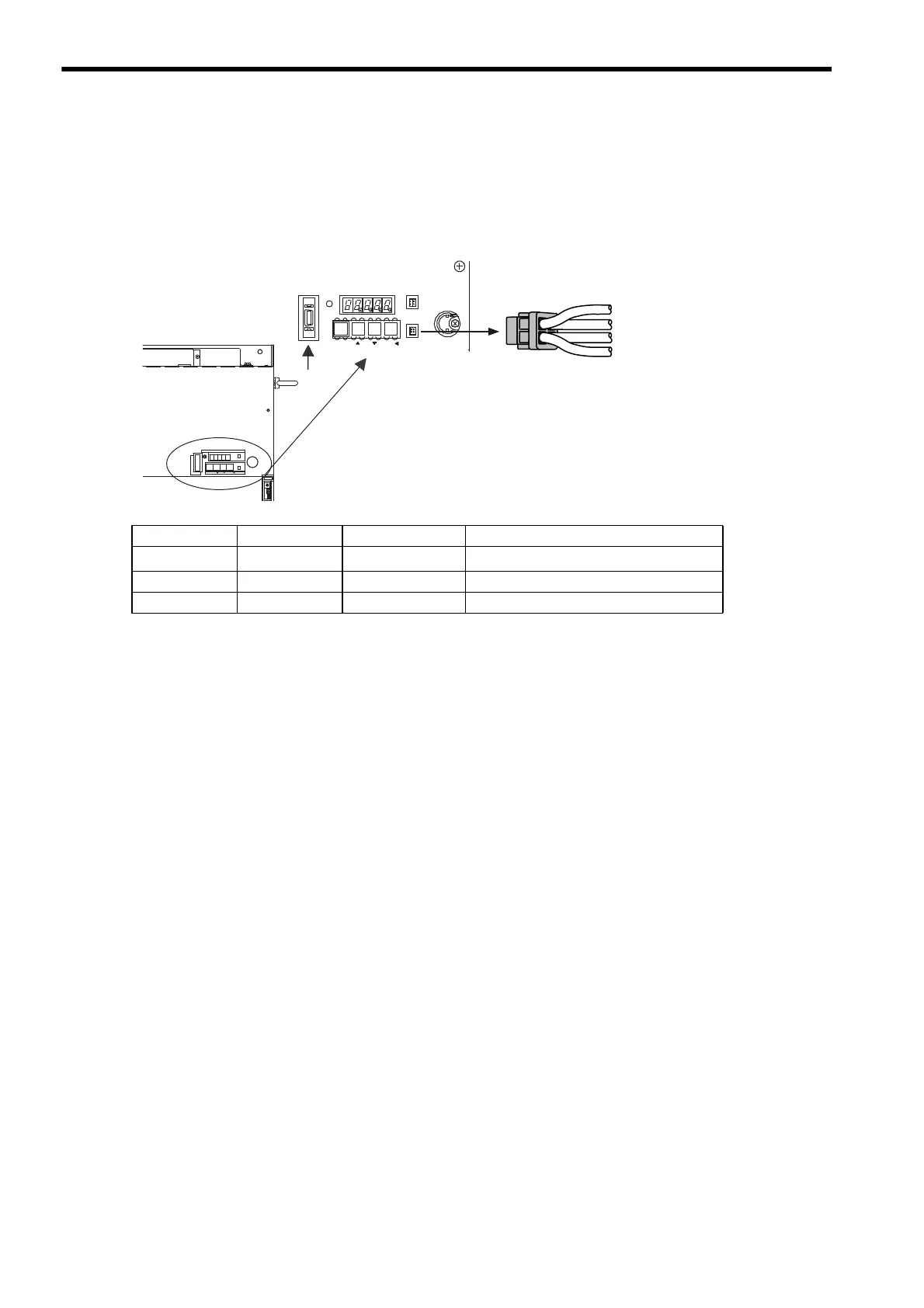

9.5 Analog Monitor
Signals for analog voltage references can be monitored.
To monitor analog signals, connect the analog monitor cable (JZSP-CA01 or DE9404559) to the connector CN5.
The analog monitor signals can be selected by setting parameters Pn003.0 and Pn003.1.
Pin Number Line Color Signal Name Monitoring Item with Factory Setting
1
Red
Analog monitor 2
Motor speed: 1 V/1000 min
-1
2
White
Analog monitor 1 Torque reference: 1 V/100% rated torque
3, 4
Black (2 lines)
GND (0 V) −
Analog monitor cable model:
JZSP-CA01 or DE9404559
Black
Black
Red
White
CN3
CN8
BATTERY
MODE/SET DATA/
POWER
CN5
6#5''/1&
4
1
2
'
4
#
6
1
%0
%0
219'4
%0
