5.5 Peripheral Devices
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5-23

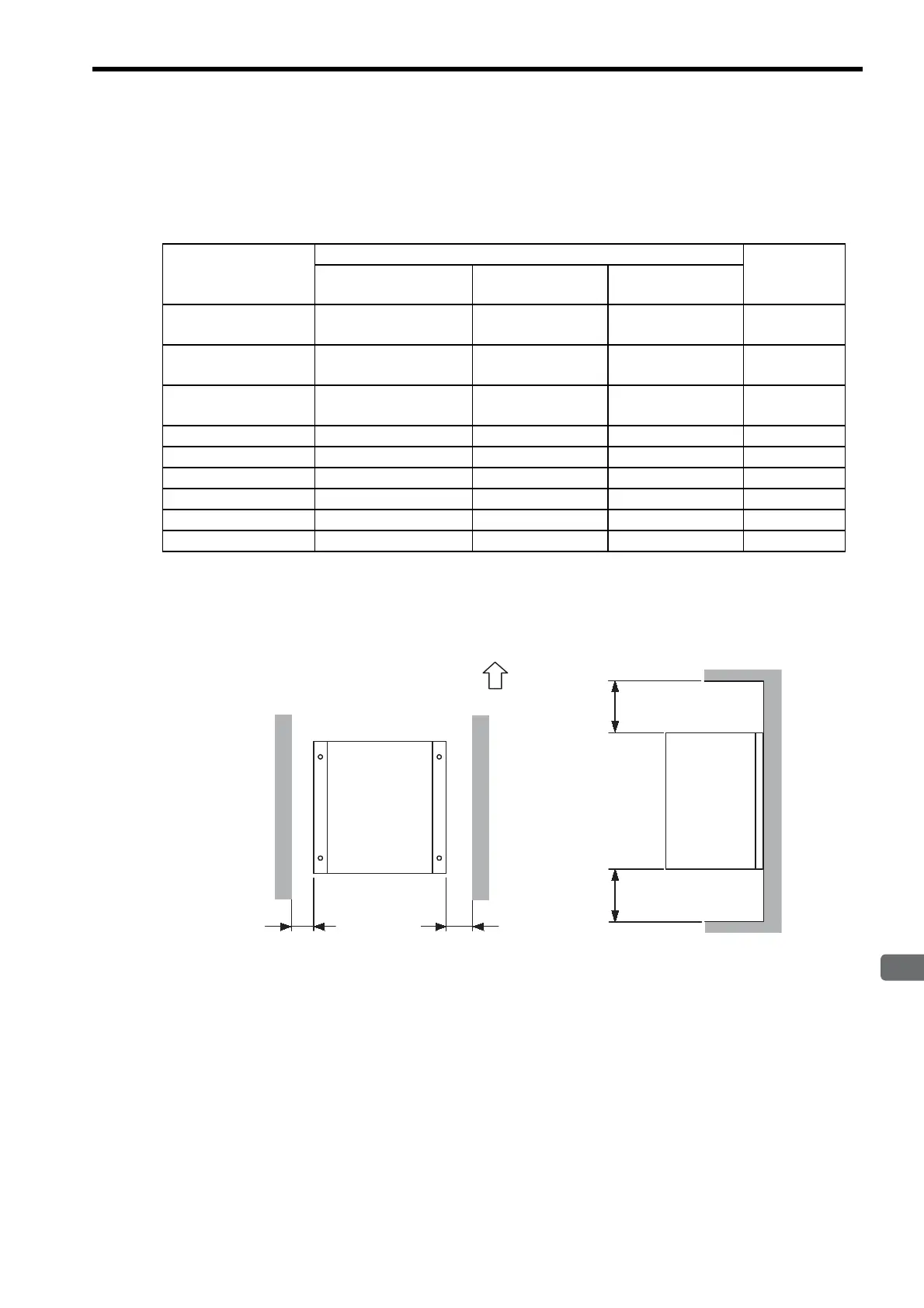

5.5.10 Regenerative Resistor Unit
(1) Model
Refer to the following table to install the regenerative resistor unit according to the SERVOPACK model require-
ments.
(2) Mounting
To cool the regenerative resistor by fan or natural convection, provide at least 70 mm of space on each side and at
least 200 mm of space both above and below.
SERVOPACK Model
Regenerative Resistor Unit Allowable
Power Loss
（
W
）
Model Resistance
（Ω）
Resistance
Capacity
（
W
）
SGDM-2BADB
SGDH-2BAEB
JUSP-RA08 2.4 2400 480
SGDM-3ZADB
SGDH-3ZAEB
JUSP-RA09 1.8 4800 960
SGDM-3GADB
SGDH-3GAEB
JUSP-RA11 1.6 4800 960
SGDH-2BDEB
JUSP-RA12 9 3600 720
SGDH-3ZDEB
JUSP-RA13 6.7 3600 720
SGDH-3GDEB
JUSP-RA14 5 4800 960
SGDH-4EDEB
JUSP-RA15 4 6000 1200
SGDH-5EDEB
JUSP-RA16 3.8 7200 1440
SGDH-9ZDEB
JUSP-RA25 2.1 16800 3360
70 min.70 min.
200 min.200 min.
Mounting
direction
Up
Units: mm
