YASKAWA E-II Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.5.10 Regenerative Resistor Unit
5-24

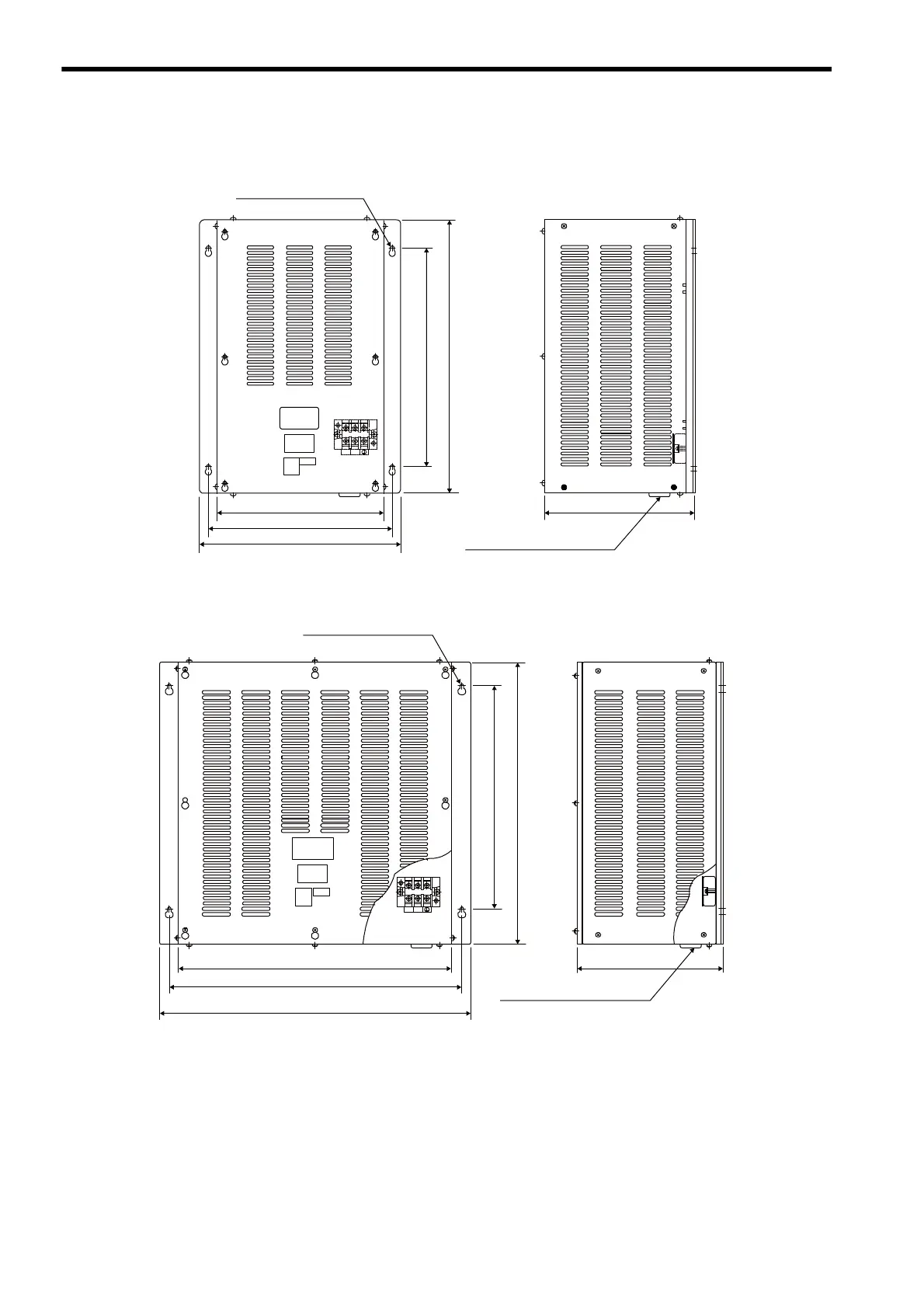

(3) Dimensional Drawings
(a) JUSP-RA08 Regenerative Resistor Unit
(b) JUSP-RA09 Regenerative Resistor Unit
298
400
328
358
500
260
B2B1
Power line insertion hole
(φ17, with rubber bushing)
4 × φ7 mounting holes
Units: mm
Approx. mass: 14.0 kg
400
500
260
488
518
548
B2B1
Power line insertion hole
(φ17, with rubber bushing)
4 × φ7 mounting holes
Units: mm
Approx. mass: 21.0 kg
