n048 : Terminal FV Gain Factory setting: 100 %
Range: 0 to 200 %
Sets the auto-speed frequency command gain,
in increments of 1%.
n049 : Terminal FV Bias Factory setting: 0 %
Range: -100 to 100 %
Sets the auto-speed frequency command bias,
in increments of 1%.
n050 : Terminal FI Gain Factory setting: 100 %
Range: 0 to 200 %
n051 : Terminal FI Bias Factory setting: 0 %
Range: -100 to 100 %

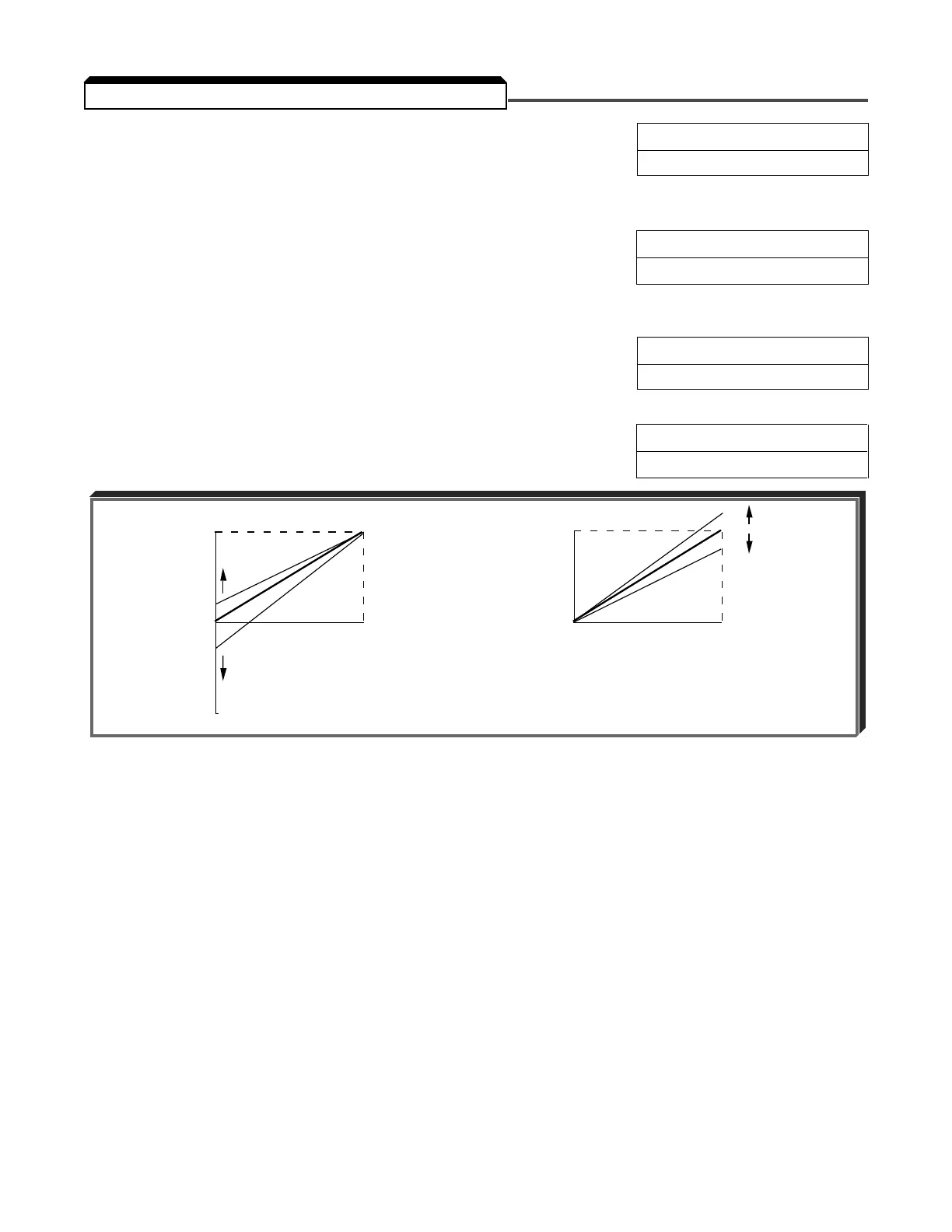

ADJUSTMENT PROCEDURE:
A. For 0-10 Vdc input (term. FV)
1. With no input, adjust Bias (n049 setting) until an output of
0.0 Hz is obtained.
2. With full scale input, adjust Gain (n048 setting) until an output
of 60.0 Hz (or other desired max. output frequency) is obtained.
B. For 4-20mA input (term. FI)
1. With 4mA input, adjust Bias (n050 setting) until an output of
0.0 Hz is obtained.
2. With 20mA input, adjust Gain (n051 setting) until an output
of 60.0 Hz (or other desired max. output frequency) is obtained.
NOTE
Follow the same adjustment procedure for other desired frequency setpoints.
5-13
FREQ. REF.
FREQ. REF.
FREQ.
REF.
FREQ.
REF.
