0* Fault* Fault Closed = Drive fault has occurred
(except CPF0, CPF1)
1 * During Running * During operation Closed = Drive is operating
2 At Speed Speed at set frequency Closed = Frequency Reference = output frequency
See description on next page
3 At Desired Speed Speed coincidence Closed = Speed at set frequency and output
frequency = n075
See description on next page
4 Freq Detection 1 Frequency detection - low Closed = Output frequency ≤ n075 .
See description on next page
5 Freq Detection 2 Frequency detection - high Closed = Output frequency
≥
n075 .
See description on next page
6 Overtrq Det (NO) Overtorque / Undertorque Closed = Overtorque / Undertorque detected
detection (N.O. contact)
7 Overtrq Det (NC) Overtorque / Undertorque Open = Overtorque / Undertorque detected
detection (N.C. contact)
8 Base Blocked During coast to stop Closed = Drive output base block is active;
motor is coasting
9 Operation Mode Frequency or Run reference Open = Frequency or Run Command by ext. input;
mode Closed = Frequency or Run Command by Digital Operator
10 Ready Operation ready Closed = Drive is ready for operation (not faulted)
11 Timer Output Timer function See paragraph 5.19F
12 Auto-Restarting Auto-restart Closed = During auto-restart operation
13 OL Pre-Alarm OL warning Closed = 150% current for 48 sec. (OL1) or 80% time (OL2)
14 Freq Ref Loss Frequency reference missing Closed = Frequency reference is missing.
See paragraph 5.13
15 Set by Com Cntl Serial communication Closed = Command from serial communication
16 PID Fdbk Loss PID feedback loss Closed = Feedback value < detection level (n091 ) for
longer than detection delay time (n092 )
17 OH1 Alarm OH1 warning Closed = Heatsink temperature
≥
90°C (194°F) (if n035 = 3)
5-41
n041 : Contact Output (external
terminals MA, MB & MC)
(Terminal MA Sel)
n042 : Contact Output (external
terminals M1 & M2)
(Terminal M1 Sel)
A Form-C contact, or an N.O. contact, can
be programmed to change states during
any of the conditions indicated in Table
5-3.
LED LCD
SETTING SETTING CONDITION SIGNAL LEVEL
Table 5-3. Multi-function Output Terminals

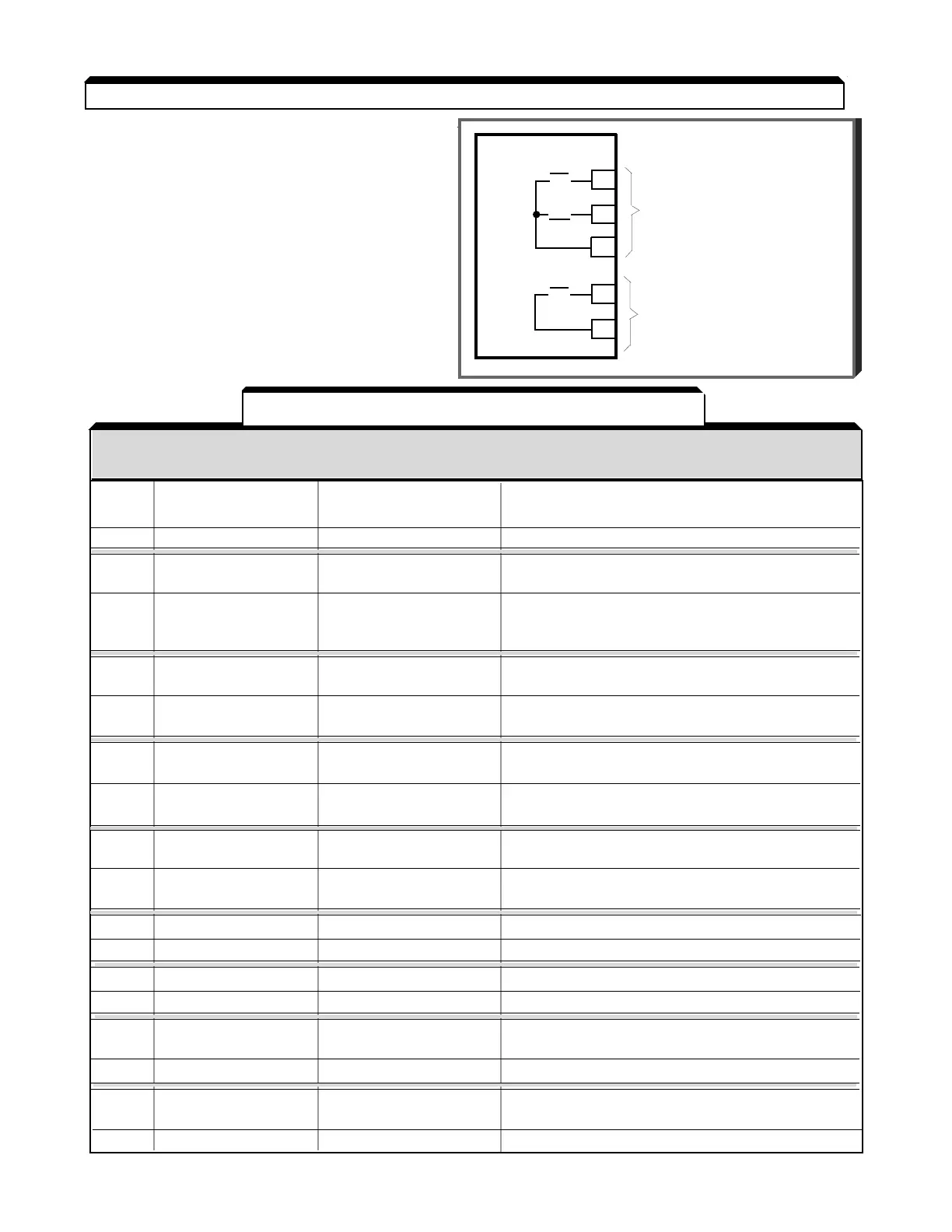

5.20 MULTI-FUNCTION OUTPUT TERMINALS (Term. MA, MB & MC; M1 & M2)
GPD 506/P5
o o MA
o o MB
MC
o o
M
1
M
2
FACTORY
SETTING
IS FOR
"During
Running"
( " 1 ")
FACTORY
SETTING
IS FOR
"Fault"
( " 0 ")
MULTI-
FUNCTION
CONTACT
OUTPUTS;
250Vac 1A
OR LESS
30Vdc 1A
OR LESS
To Next Page
