n030 : Jog Reference Factory setting: 6.0 Hz
Range: 0.0 to 400.0 Hz
n036thru n040 : Multi-function Inputs Data : Jog Command (13)
(Term. S2 - S6 Sel)
When jog operation is selected (by external Jog and Run signals), the drive output will ramp
to the output level set by this parameter.
When an external Jog signal is present, it will override the existing operation mode and the
drive will ramp to the level set by this parameter.

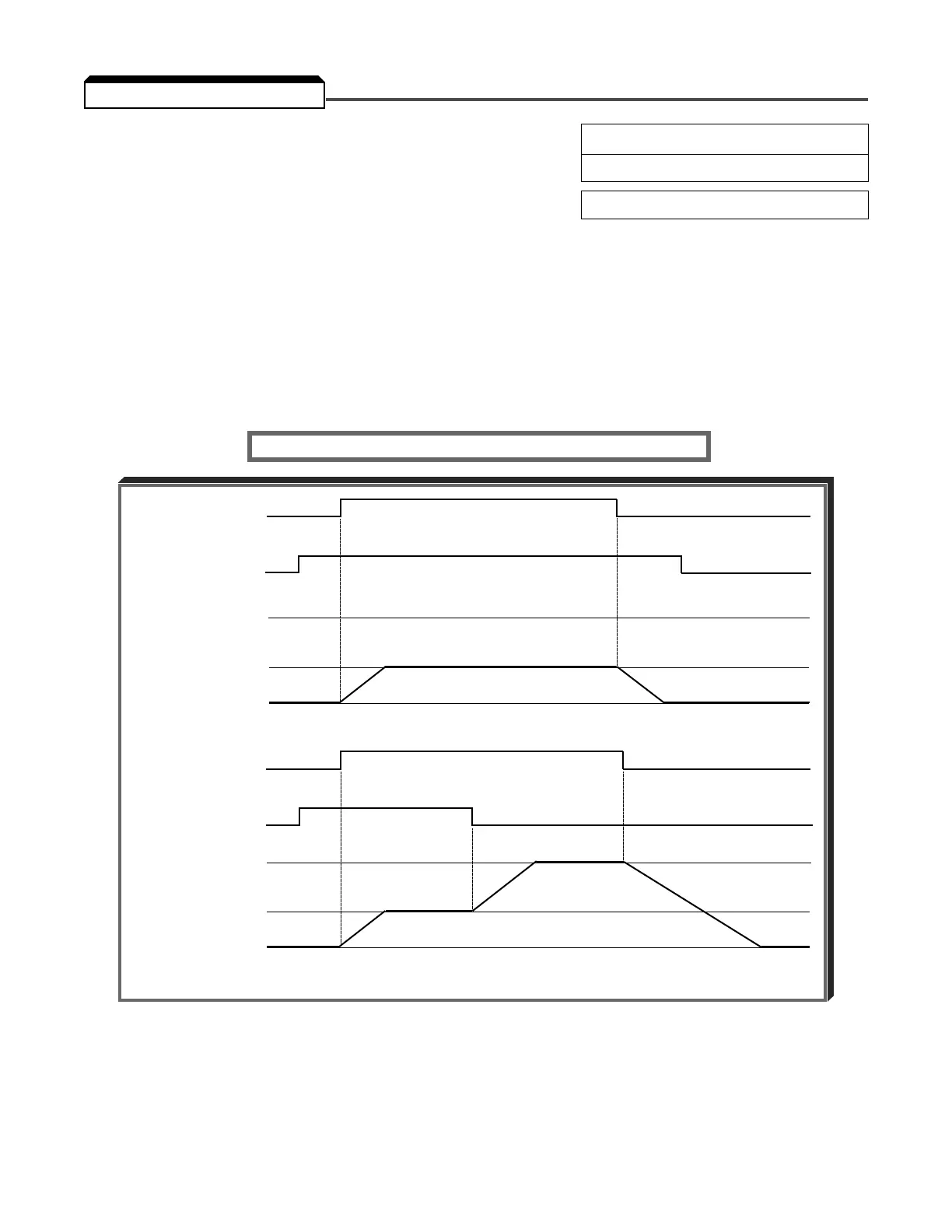

EXAMPLE:
OPERATION BY REMOTE SIGNAL INPUT (RUN & JOG)
Also see descriptions of MULTI-FUNCTION INPUT TERMINALS, paragraph 5.19.
5-20
5.15 JOG REFERENCE
FREQ. CMD
n030 JOG
REF.
0
FREQ. CMD
n030 JOG
REF.
0
* Or FWD
RUN *
(Term. S2-S6) JOG
RUN
*
(Term. S2-S6) JOG
To Next Page
