5-40
Continued

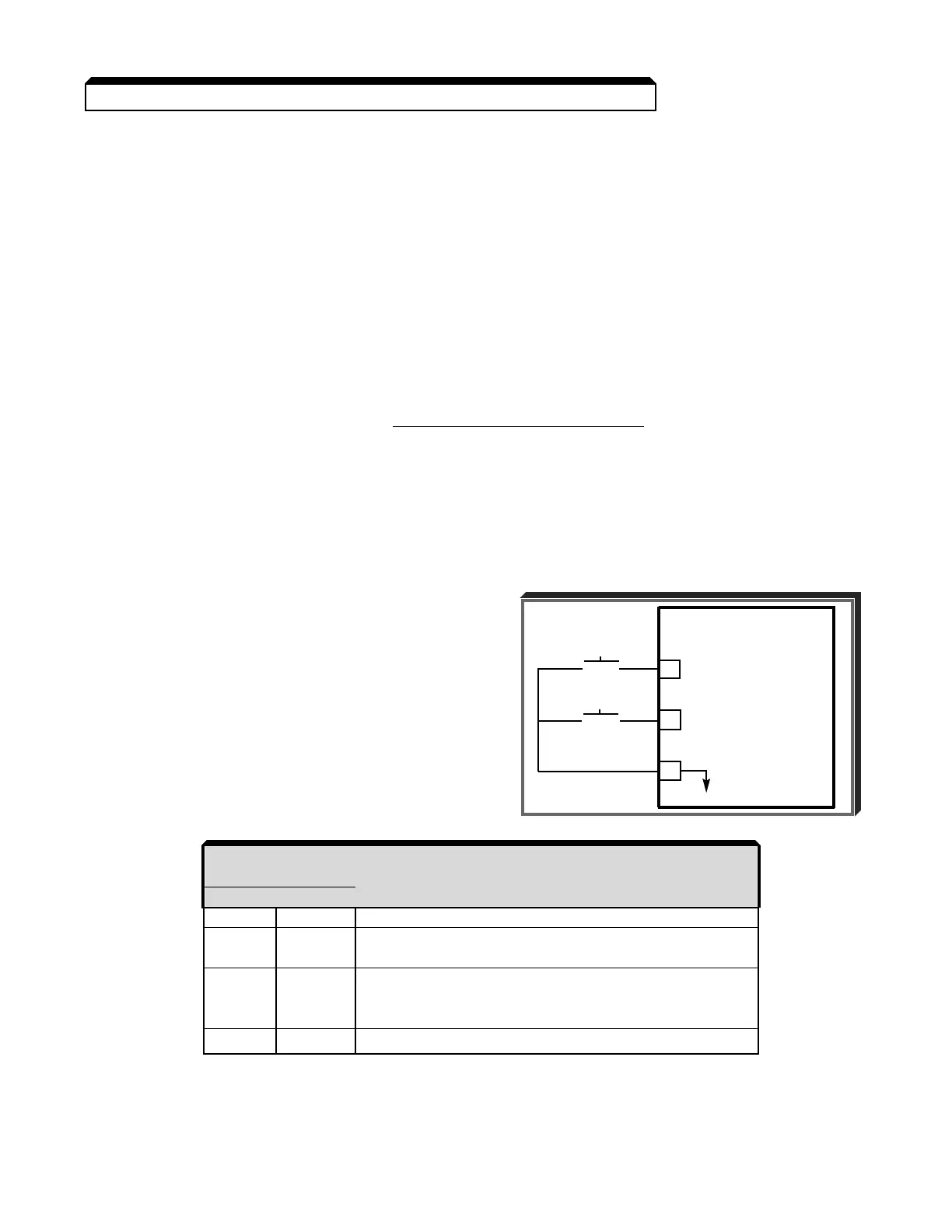

J. Up/Down Control ( 29 ): Up/Down Function
Programming data "Up/Down Control" (" 29 ") for n040 (multi-function input terminal)
allows the inputs to be used for Up/Down frequency setting.
NOTES:
1.
Parameter n039 will display " –– " when n040 is set to "Up/Down Control" (" 29 ").
2. Jog has priority over Up/Down.
3. Up/Down has priority over Multi-step Frequency inputs.
4. Up/Down is ineffective when operation is from the Digital Operator.
5. Upper limit speed is set by the formula:
n011(Fmax) x
n031(Freq. Ref. Upper Limit)
100
6. Lower limit speed is either the reference from external terminals FV or FI,
or from n032, Frequency Reference Lower Limit, whichever is higher.
7. Upon a Forward (or Reverse) Run command, the drive will operate at the
lower limit speed, until an UP command is given.
EXAMPLE:
n040 "Up/Down Control" ( 29 ) :
Up/Down function
GPD 506/P5
S5 UP
S6 DOWN
S
C
0V
UP
o o
DOWN
o o
INPUT SIGNAL
Term. S5 Term. S6 FUNCTION
UP DOWN
Open Open HOLD
Closed Open UP (Frequency command approaches frequency
command upper limit)
Open Closed DOWN (Frequency command approaches minimum
output frequency or frequency command lower limit,
whichever is larger)
Closed Closed HOLD
5.19 MULTI-FUNCTION INPUT TERMINALS (Term. S2-S6)
