5-33
Continued

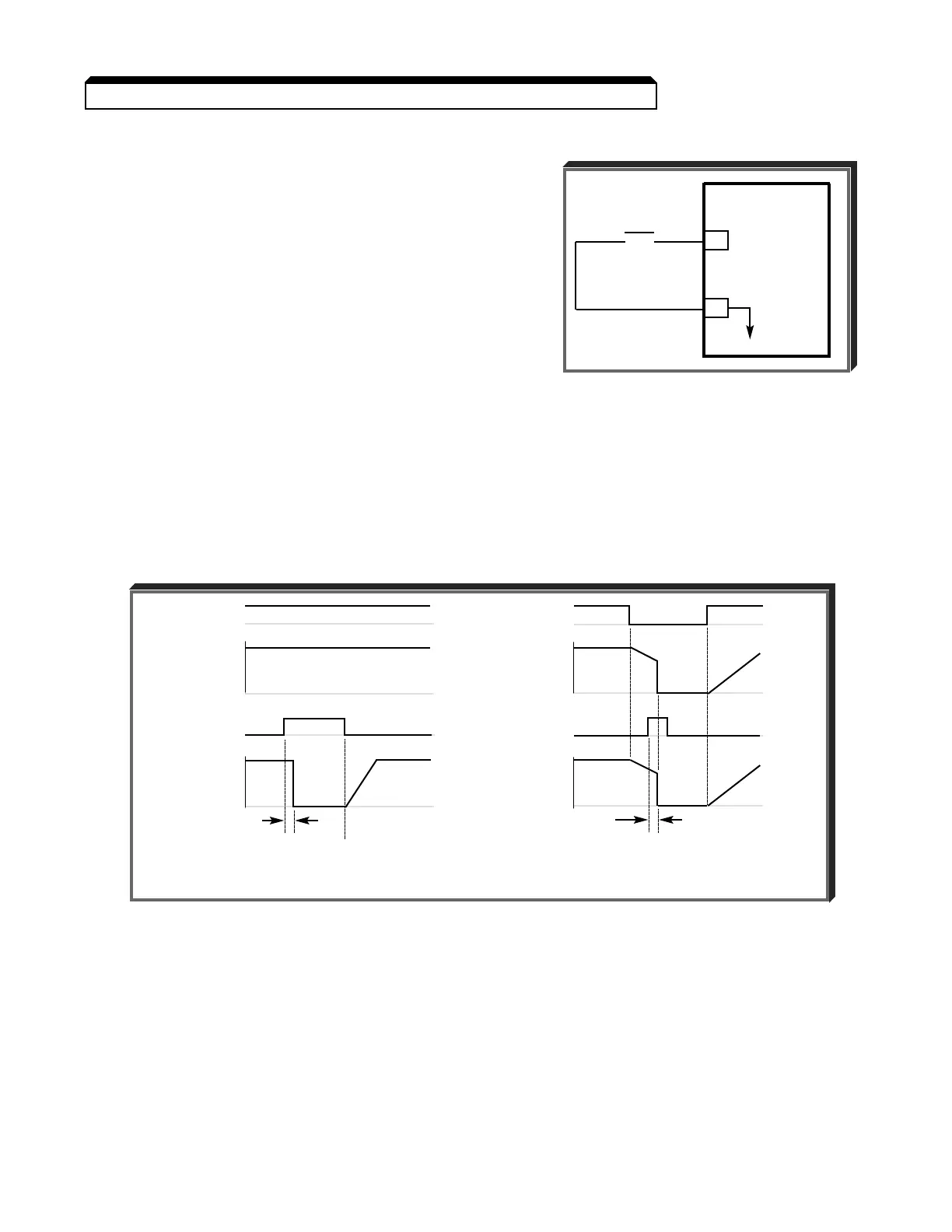

C. Ext Baseblk (NO) (15 ): External Base Block by N.O. Contact
• When either the Forward Run command or
Reverse Run command is present, and the
external Base Block command is applied
(i.e. contact closed), coast stop is accom-
plished (after a 20 msec delay), while the
frequency command is maintained.
When the Base Block command is removed,
the drive will recover in a manner similar
to that of Speed Search operation.
• When both the Forward Run command and
Reverse Run command are open, and the
external Base Block command is applied (i.e. contact closed), coast stop is accom-
plished and after a 20 msec delay the frequency command is changed to 0Hz.
When the Base Block command is removed, the drive will remain in stopped
condition until Forward Run command or Reverse Run command is again applied.
• When external Base Block command is active, a blinking " b b Base Block"
will be displayed on the Digital Operator.
D. Ext Basedblk (NC) (16 ) : External Base Block by N.C. Contact
Base block operation is the same as described above, except that the Base Block contact
must be open to be recognized.
GPD 506/P5
S6
S
C
0V
EXTERNAL
BASE BLOCK
o o
RUN RUN
Freq. Cmd Freq. Cmd
00
Base Block Base Block
V out V out
00
20msec 20msec
(A) Base Block With Run Active (B) Base Block After Stop Command
5.19 MULTI-FUNCTION INPUT TERMINALS (Term. S2-S6)
