n111 : Local/Remote Changeover
The Local/Remote function is used to switch the Drive’s Sequence and Reference
commands from Remote (as defined by the setting of n002) to Local (i.e. from the Digital
Operator). This function is enabled by programming a Multi-function input terminal (setting
n036thru n040) to "LOC/REM Sel" ("5").
If the Drive is running from a Local RUN command (Digital Operator) (which assumes the
Local/Remote Multi-function input is closed to terminal SC), the Drive will stop if the STOP
key of the Digital Operator is pressed, as usual.
If the Local/Remote input is then opened, the reference will immediately switch over to the
Remote reference, and :
if n111 = "Cycle Extern RUN" ("0"), the external RUN command must then be removed
and re-applied in order for the Drive to run.
if n111 = "Accept Extern RUN" ("1"), the Drive will run immediately if the external RUN
command is still applied.
Note: if n002 is set to "SEQ=OPR REF=OPR" ("0"), the Local/Remote function will have no
effect.

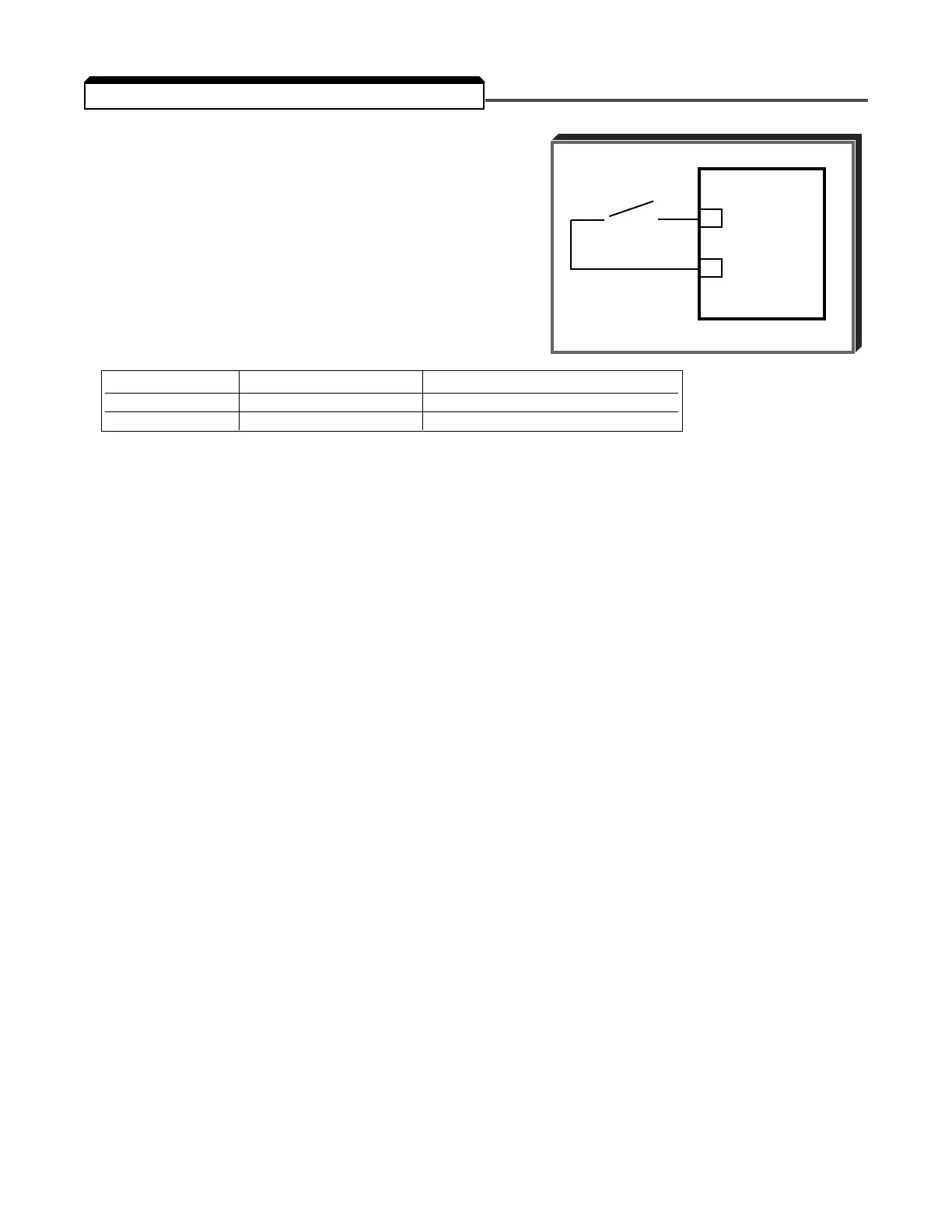

5.15.1 LOCAL/REMOTE CHANGEOVER
Remote o
oo
Local
GPD Drive
S4
SC
LED Setting LCD Setting Description
0 * Cycle Extern RUN* Must open and re-apply RUN command
1 Accept Extern RUN Will accept external RUN command
