YASKAWA GPD-506V

Continued
F. Timer Start Cmd (22 ) : Timer Function
n041 or n042 : Multi-function Output Terminals
Timer Output 11 : Timer Function
(Terminal MA Sel) or (Terminal M1 Sel)
n080 : On-Delay Timer Factory setting: 0.0 sec.
Range: 0.0 to 25.5 sec.
n081 : Off-Delay Timer Factory setting: 0.0 sec.
Range: 0.0 to 25.5 sec.

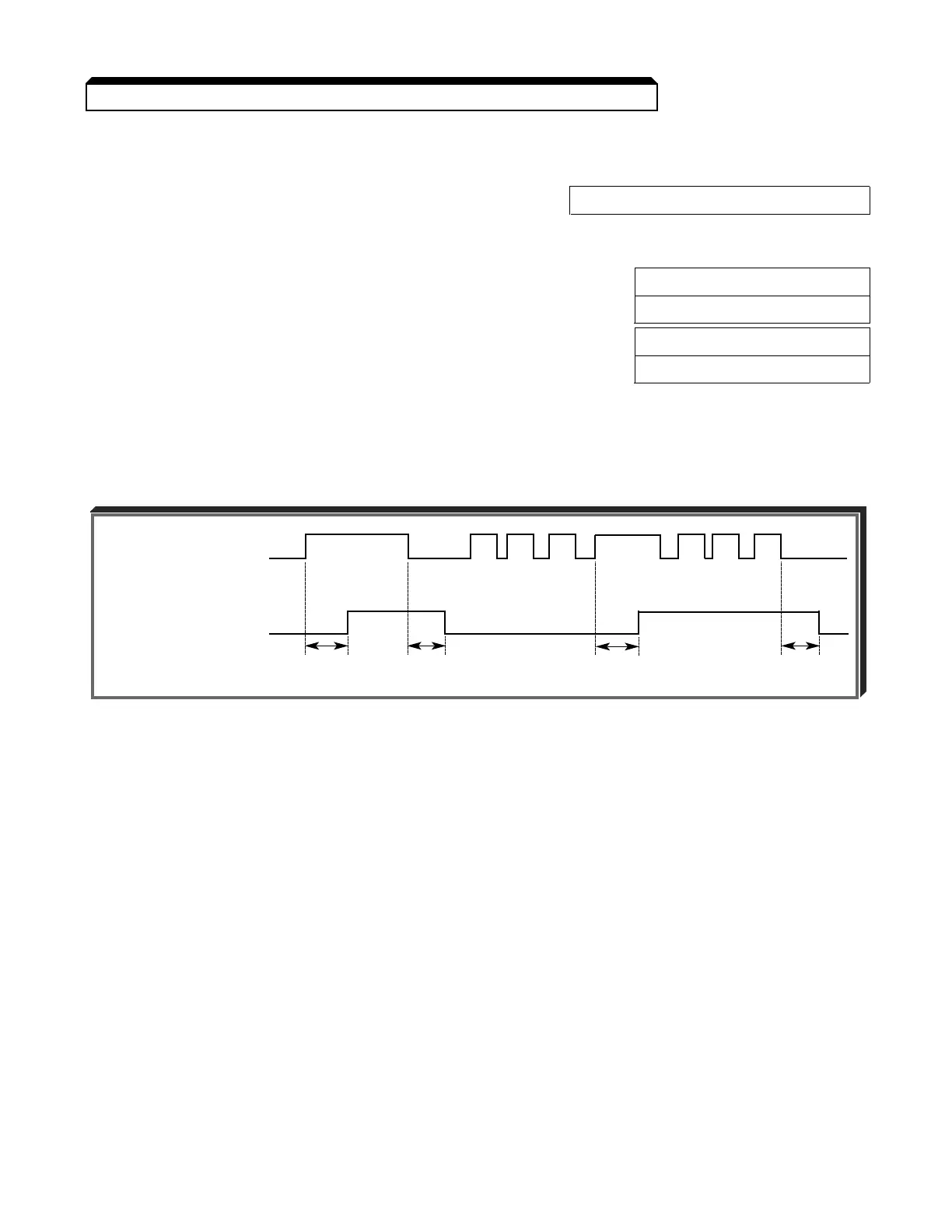

When the timer function input is “closed” for longer than On-delay Timer (n080), the timer
function output closes.
When the timer input is “open” for longer than Off-delay Timer (n081), the timer function
output opens.
As can be seen, the timer function must be programmed as both a multi-function input and
an output to be effective.
5-36
5.19 MULTI-FUNCTION INPUT TERMINALS (Term. S2-S6)
Multi-function Contact
Input: Timer Function
Multi-function Contact
Output: Timer Function
n080 n081
ON
ON ON
ON
n080
ON
ON ON
n081
ON
ON ON
