YASKAWA GPD-506V

5-28
n036 : Terminal S2 Sel
n037 : Terminal S3 Sel
n038 : Terminal S4 Sel
n039 : Terminal S5 Sel
n040 : Terminal S6 Sel
These five parameters select the input signal
functions for terminals S2 thru S6, and can
be independently set.
Parameter settings are checked whenever
power is applied to the drive, or upon
exiting Program mode. A parameter set
value failure ( " oPE3 MF Input Error") will occur
if any of the following conditions are detected
among these five parameters:
(1) Two or more of the parameters contain the same value.
(2) Both Speed Search functions "Sel Srch (MAXFRQ)" ("17 ")
and "Spd Srch (SETFRQ)" (" 8 ") have been selected.
(3) Both the "Ref Sample/Hold" (" 24 ") and "Up/Down Control" (" 29 ") functions
have been selected.
Table 5-2 lists the possible data setting values for these parameters, with the function and
a brief description for each one.
For a few of the data settings, a more detailed description is given on the following pages;
for others, the description is given in other PROGRAMMABLE FEATURES paragraphs.
EXTERNAL
CONTACTS
GPD 506/P5
S2 n036
S3 n037 MULTI-
> FUNCTION
S4 n038 INPUT
S5 n039
S6 n040
S
C
0V
•
•
•
•

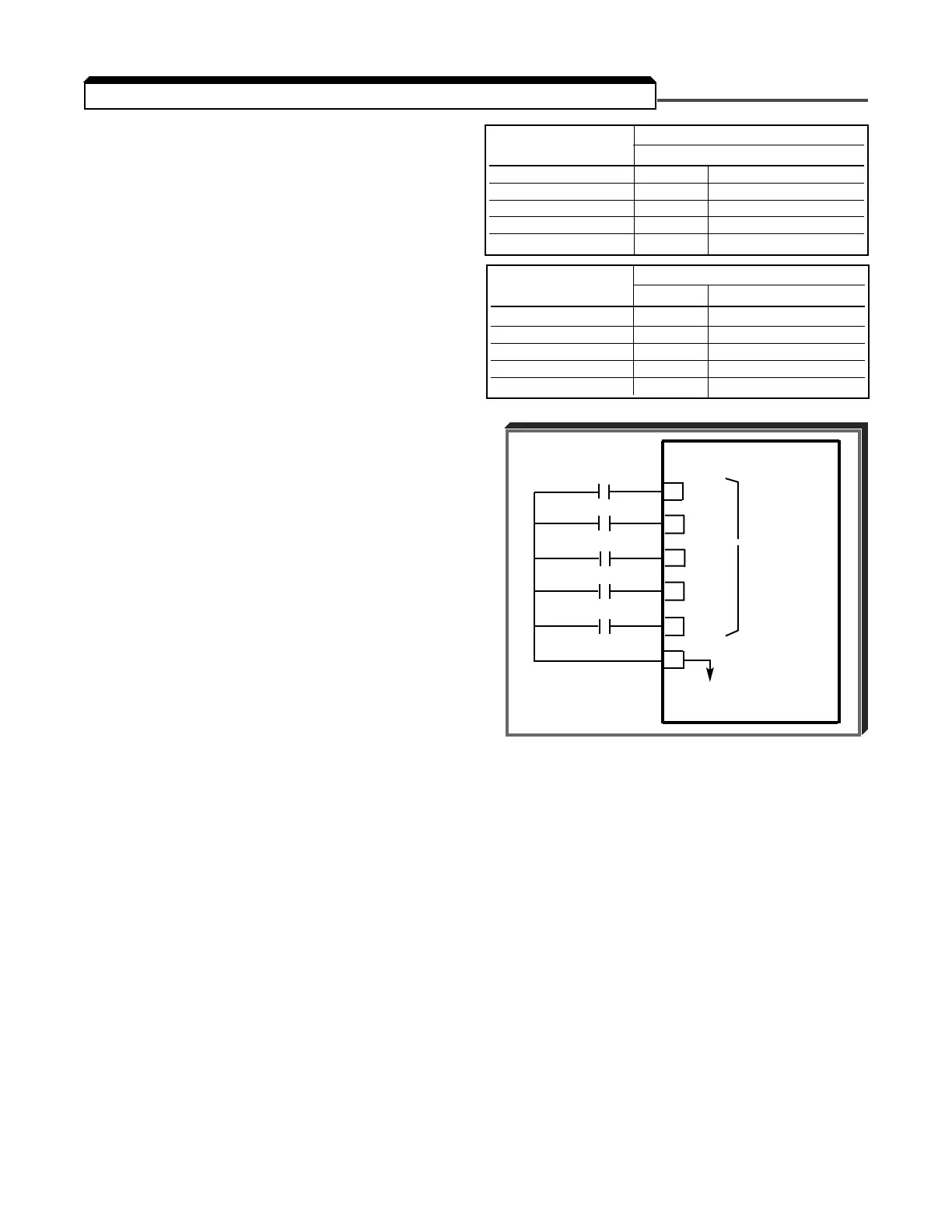

5.19 MULTI-FUNCTION INPUT TERMINALS (Term. S2-S6)
2-Wire Control
Factory Settings: LED LCD
n036 0 Reverse RUN (2W)
n037 2 Ext Fault (NO)
n038 4 Fault Reset
n039 10 Multi-Step Spd 1
n040 11 Multi-Step Spd 2
3-Wire Control
Factory Settings: LED LCD
n036 1 FWD/REV Cmd (3W)
n037 -- --
n038 4 Fault Reset
n039 10 Multi-Step Spd 1
n040 11 Multi-Step Spd 2
