YASKAWA GPD-506V

5-27
n052 : Multi-function Analog Output
(Teminal AM Sel)
The monitor output provides a 0-10 Vdc signal
proportional to either output frequency, output
current, output voltage reference, or output power
between terminals AM & AC:
n053 : Analog Monitor Gain Factory Setting: 1.00
(Terminal AM Gain)
Range: 0.01 to 2.00
This constant is used to calibrate, in increments of 0.01, either the frequency, current or
volt meter connected to terminals AM & AC.
GPD 506/P5
AM
Analog
output
AC
(0-10 Vdc)
MULTI-
FUNCTION
MONITOR
OUTPUT
+ –
FREQUENCY/ CURRENT
METER
(1mA FULL SCALE)

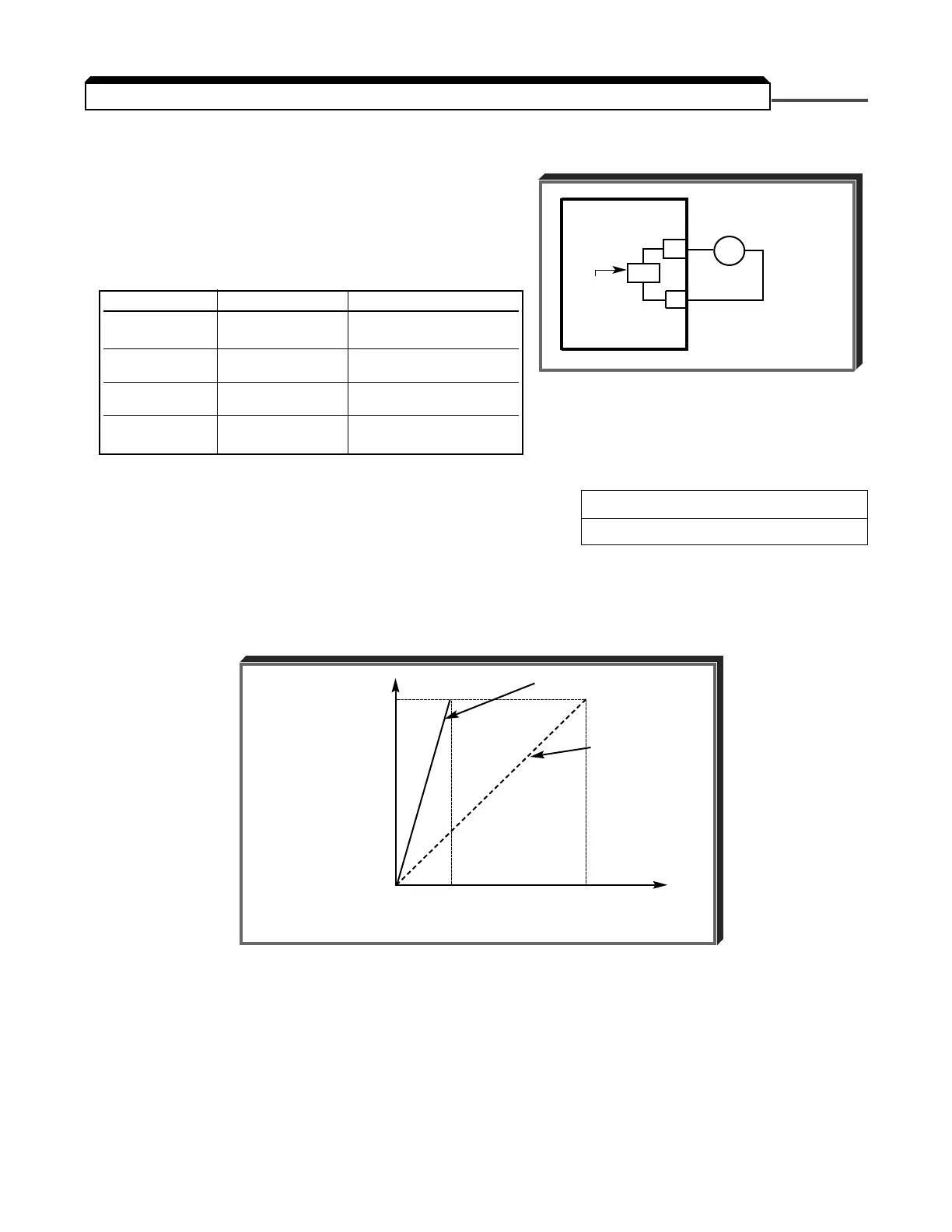

5.18 MULTI-FUNCTION ANALOG MONITOR OUTPUT (Term. AM & AC)
n053 = 0.30
100%
MAX. OUTPUT
FREQUENCY Factory Setting
(CURRENT, (n053 = 1.00)
BUS VOLTAGE,
or POWER)
0 3 V 10 V
ANALOG OUTPUT
LED Setting LCD Setting Description
0* Output Freq * 0-10 VDC proportional
to output frequency
1 Output Amps 0-10 VDC proportional
to output current
2 Output KWatts 0-10 VDC proportional
to output power
3 DC Bus Voltage 0-10 VDC proportional
to DC bus voltage
