YASKAWA GPD-506V

A. n018 : Accel Time 1 Factory setting (each): 10.0 seconds
n019 : Decel Time 1
Range (each): 0.0 to 3600 seconds
n020 : Accel Time 2 Factory setting (each): 10 seconds
n021 : Decel Time 2
Range (each): 0 to 255 seconds
The Drive incorporates two sets of individually programmable acceleration and deceleration
times.
B. n036 thru n040 : Multi- Data 14 : Accel/Decel Time Selection
function Inputs (Term. S2 thru S6)
By programming data "Acc/Dec Switch" (" 14 ")
into one of the multi-function parameters (n036
thru n040 ), one of the multi-function input
terminals (S2 thru S6) becomes a time selection
input. When the input terminal (i.e. external
contact) is open, Time 1 (n018 / n019 ) is
selected. When the input terminal is closed,
Time 2 (n020 / n021) is selected.
Note: All tables for parameters with "selectable" data (n002, n004, etc.) show the
factory setting indicated in bold, followed by an asterisk (*).

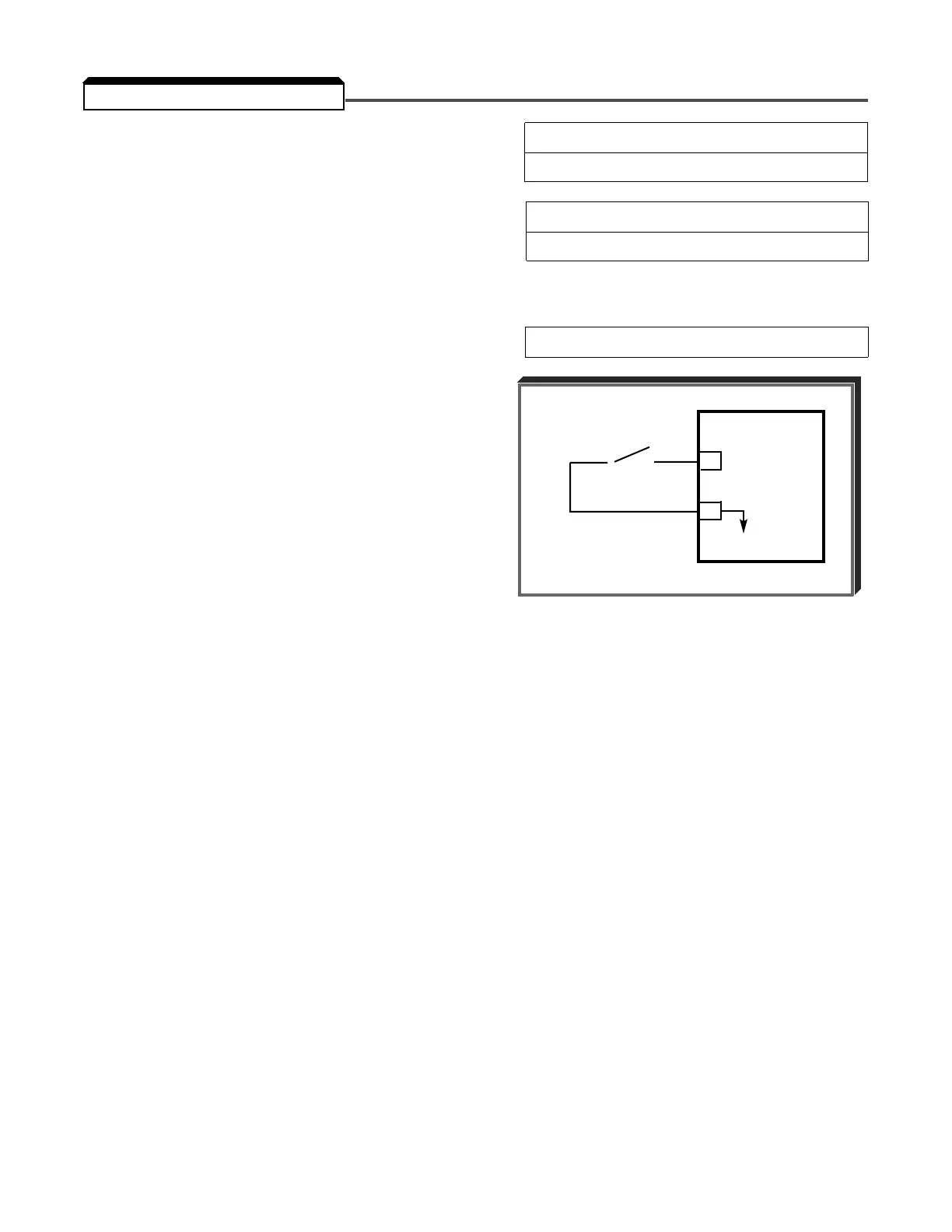

TIME 1 o
oo
TIME 2
GPD 506/P5
S5
SC
0V
5-3
5.2 ACCEL/DECEL TIME
