14.6 LIO-06 Module

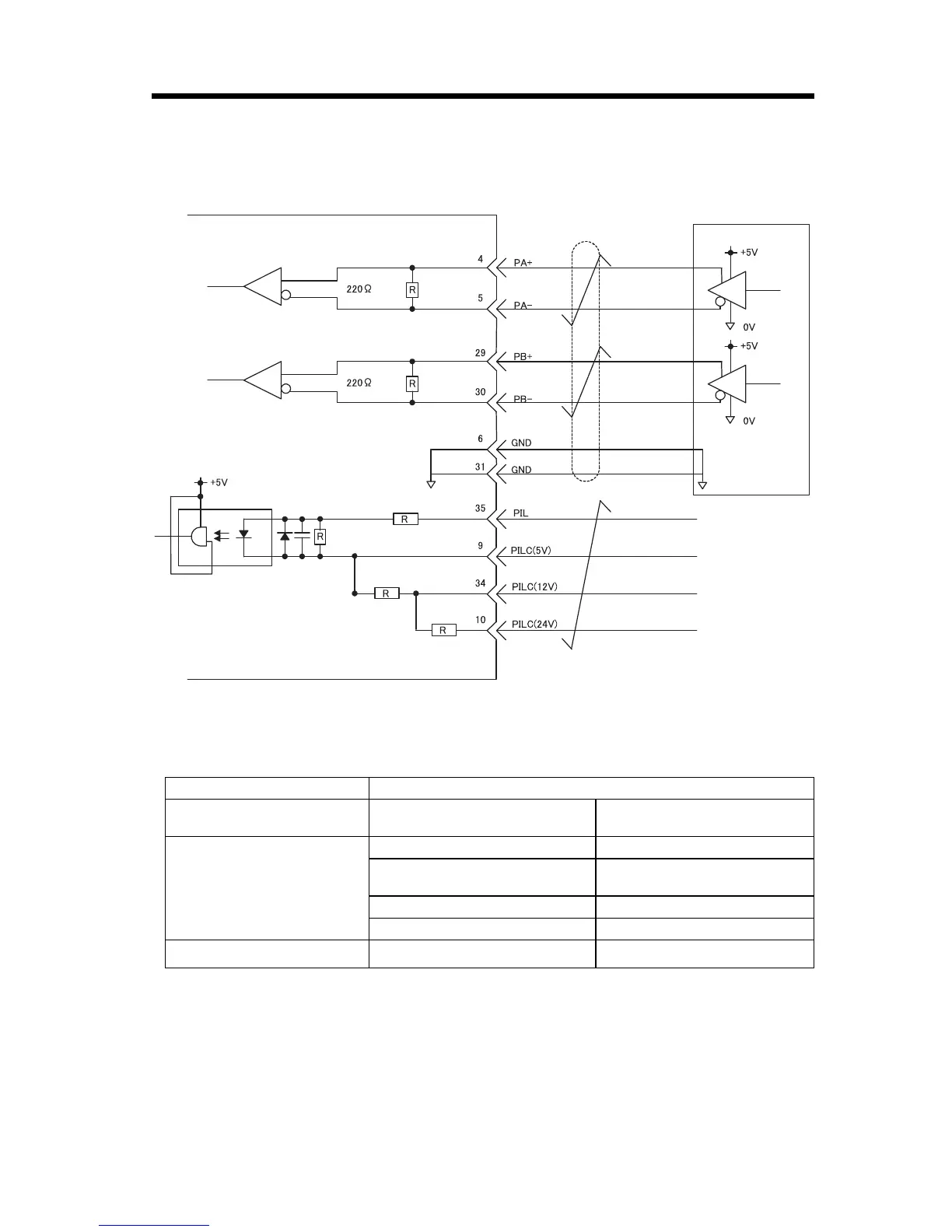

14.6.16 Encoder Input Circuit Connection Example
101
14.6.16 Encoder Input Circuit Connection Example
14.6.17 LIO–06 Connectors and Pin Layouts
 Connectors
A-phase
Pulse Generator
B-phase
Item Description
Use Connector 10250-52A3PL (Sumitomo 3M)
LIO-06 Connector
(RoHS-compatible)
Mating Connector
10150-3000VE (Sumitomo 3M) Connector unit
10150-3000PE (Sumitomo 3M)
Connector Unit
(RoHS-compatible)
10350-52A0-008 (Sumitomo 3M) Shell screw lock type
10350-52F0-008 (Sumitomo 3M) One-touch lock type
Standard Cable
JEPMC-W2064--E
Pigtail
