14.6 LIO-06 Module
14.6.18 Standard Cable Model and External Appearance
102
14.6.18 Standard Cable Model and External Appearance
14.6.19 Standard Cable Wiring Table

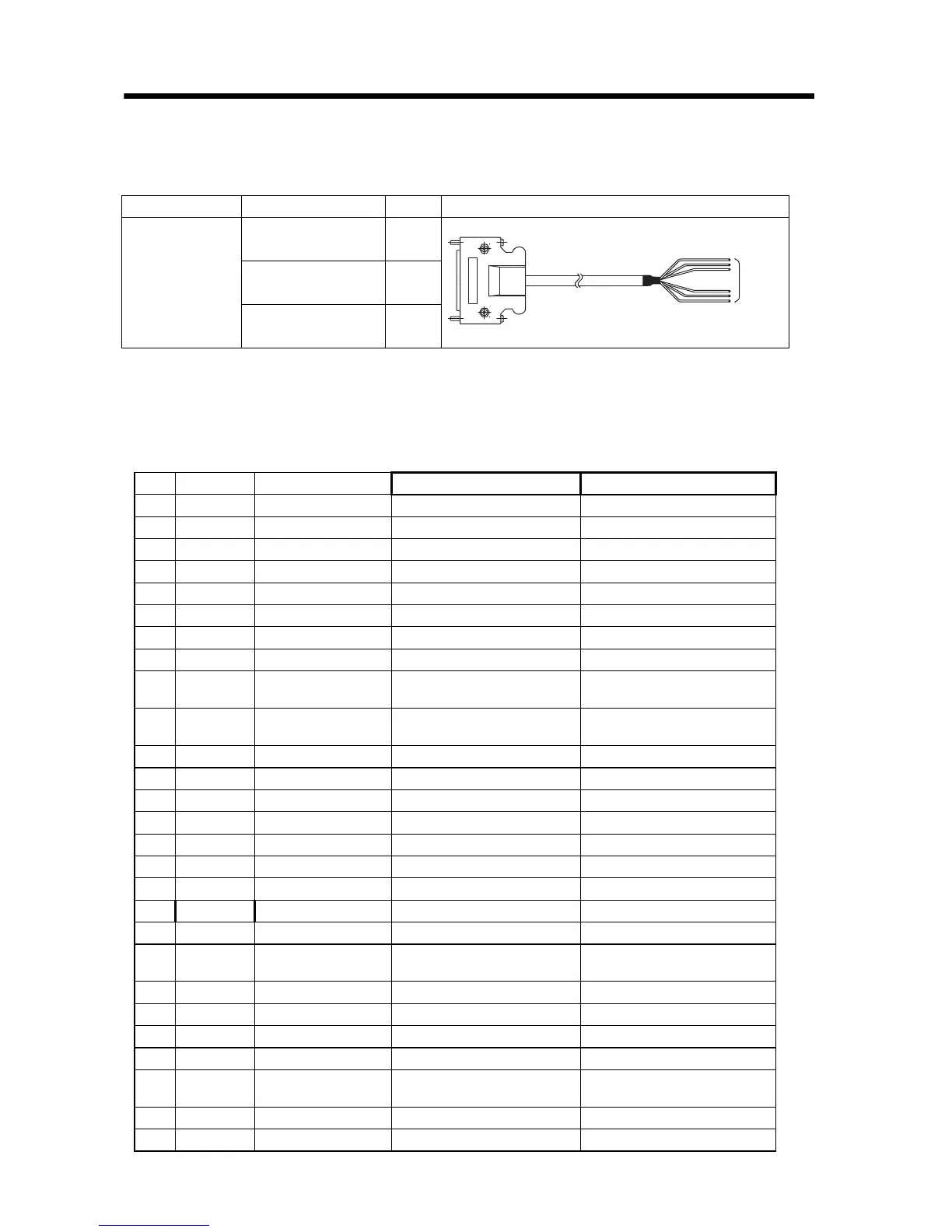

The following shows the standard cable wiring for the
JEPMC-W2064 cable.
Name Model Length External Appearance (JEPMC-W2064--E)
Cable for LIO-06
Module
(Single loose
wire)
JEPMC-W2064-A5-E
0.5 m
JEPMC-W2064-01-E
1 m
JEPMC-W2064-03-E
3 m
Pin Wire Color Markings Signal Name Function
1 Orange  AO Analog Output
2Gray  AI Analog Input
3White  N.C.
4Yellow  PA+ A_Pulse+
5Pink  PA- A_Pulse-
6 Orange   GND Pulse Input Ground
7Gray   N.C.
8White   N.C.
9Yellow   PILC5V
C-Phase Latch Input Common
(5V)
10 Pink   PILC24V
C-Phase Latch Input Common
(24V)
11 Orange    N.C.
12 Gray    N.C.
13 White    DICOM Digital Input Common
14 Yellow    DI_00 Digital Input 0
15 Pink    DI_02 Digital Input 2
16 Orange    
DI_04 Digital Input 4
17 Gray     DI_06 Digital Input 6
18 White     N.C.
19 Yellow     N.C.
20 Pink     DO_24V
Digital Output 24V Power
Supply
21 Orange     Continuous DO_00 Digital Output 0
22 Gray     Continuous DO_02 Digital Output 2
23 White     Continuous DO_04 Digital Output 4
24 Yellow     Continuous DO_06 Digital Output 6
25 Pink     Continuous DO_GND
Digital Output Common
Ground
26 Orange — AO_GND Analog Output Ground
27 Gray — AI_GND Analog Input Ground
50-core
Loose wires
