YASKAWA SGM7D User Manual

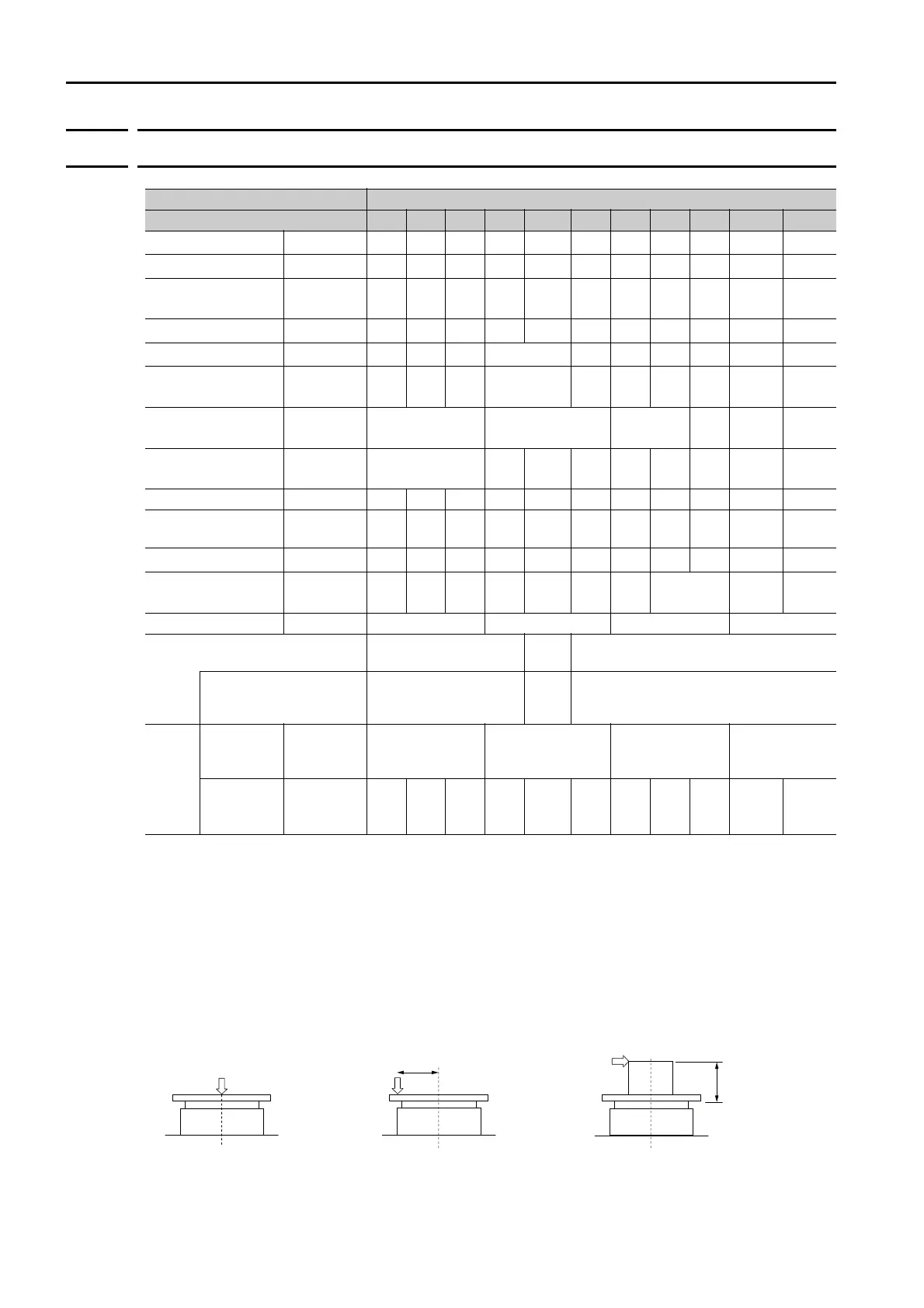

7.2 Specifications and Ratings
7.2.2 Small-Capacity, Coreless Servomotors: Ratings
7-6
7.2.2 Small-Capacity, Coreless Servomotors: Ratings
*1. These values are for operation in combination with a SERVOPACK when the temperature of the armature wind-
ing is 100°C. The values for other items are at 20°C. These are typical values.
*2. The rated torques are the continuous allowable torque values at a surrounding air temperature of 40°C with a
steel heat sink of the dimensions given in the table.
*3. To externally connect dynamic brake resistance, select hardware option specification 020 for the SERVOPACK.
However, you cannot externally connect dynamic brake resistance if you use the following SERVOPACKs (max-
imum applicable motor capacity: 400 W).
• SGD7S-R70A020 to -2R8A020
• SGD7W-1R6A20A020 to -2R8A20A020
• SGD7C-1R6AMAA020 to -2R8MAA020
*4. The thrust loads and moment loads that are applied while a Servomotor is operating are roughly classified into
the following patterns. Design the machine so that the thrust loads or moment loads will not exceed the values
given in the table.
Note: For the bearings used in these Servomotors, the loss depends on the bearing temperature. The amount of
heat loss is higher at low temperatures.
Voltage 200 V
Model SGMCS- 02B 05B 07B 04C 10C 14C 08D 17D 25D 16E 35E
Rated Output
*1
W 42 105 147 84 209 293 168 356 393 335 550
Rated Torque
*1, *2
Nm 2.00 5.00 7.00 4.00 10.0 14.0 8.00 17.0 25.0 16.0 35.0
Instantaneous
Maximum Torque
*1
Nm 6.00 15.0 21.0 12.0 30.0 42.0 24.0 51.0 75.0 48.0 105
Stall Torque
*1
Nm 2.05 5.15 7.32 4.09 10.1 14.2 8.23 17.4 25.4 16.5 35.6
Rated Current
*1
Arms 1.8 1.7 1.4 2.2 2.8 1.9 2.5 2.6 3.3 3.5
Instantaneous
Maximum Current
*1
Arms 5.4 5.1 4.1 7.0 8.3 5.6 7.5 8.0 9.4 10.0
Rated Motor
Speed
*1
min
-1
200 200 200 150 200 150
Maximum Motor
Speed
*1
min
-1
500 500 400 300 500 350 250 500 250
Torque Constant Nm/Arms 1.18 3.17 5.44 2.04 5.05 5.39 5.10 7.79 10.8 5.58 11.1
Motor Moment of
Inertia
× 10
-4
kg  m
2
28.0 51.0 77.0 77.0 140 220 285 510 750 930 1430
Rated Power Rate
*1
kW/s 1.43 4.90 6.36 2.08 7.14 8.91 2.25 5.67 8.33 2.75 8.57
Rated Angular
Acceleration Rate
*1
rad/s
2
710 980 910 520 710 640 280 330 170 240
Heat Sink Size mm 350 × 350 × 12 450 × 450 × 12 550 × 550 × 12 650 × 650 × 12
Allowable Load Moment of Inertia
(Motor Moment of Inertia Ratio)
10 times
5
times
3 times
With External Regenera-
tive Resistor and
Dynamic Brake Resistor
10 times
5
times
3 times
Allow-
able
Load
*4
Allowable
Thrust
Load
N 1500 3300 4000 11000
Allowable
Moment
Load
Nm 40 50 64 70 75 90 93 103 135 250 320
F
F
L
F
L
Where F is the external force,
Thrust load = F + Load mass
Moment load = 0
Where F is the external force
Thrust load = Load mass
Moment load = F × L
Where F is the external force,
Thrust load = F + Load mass
Moment load = F × L
