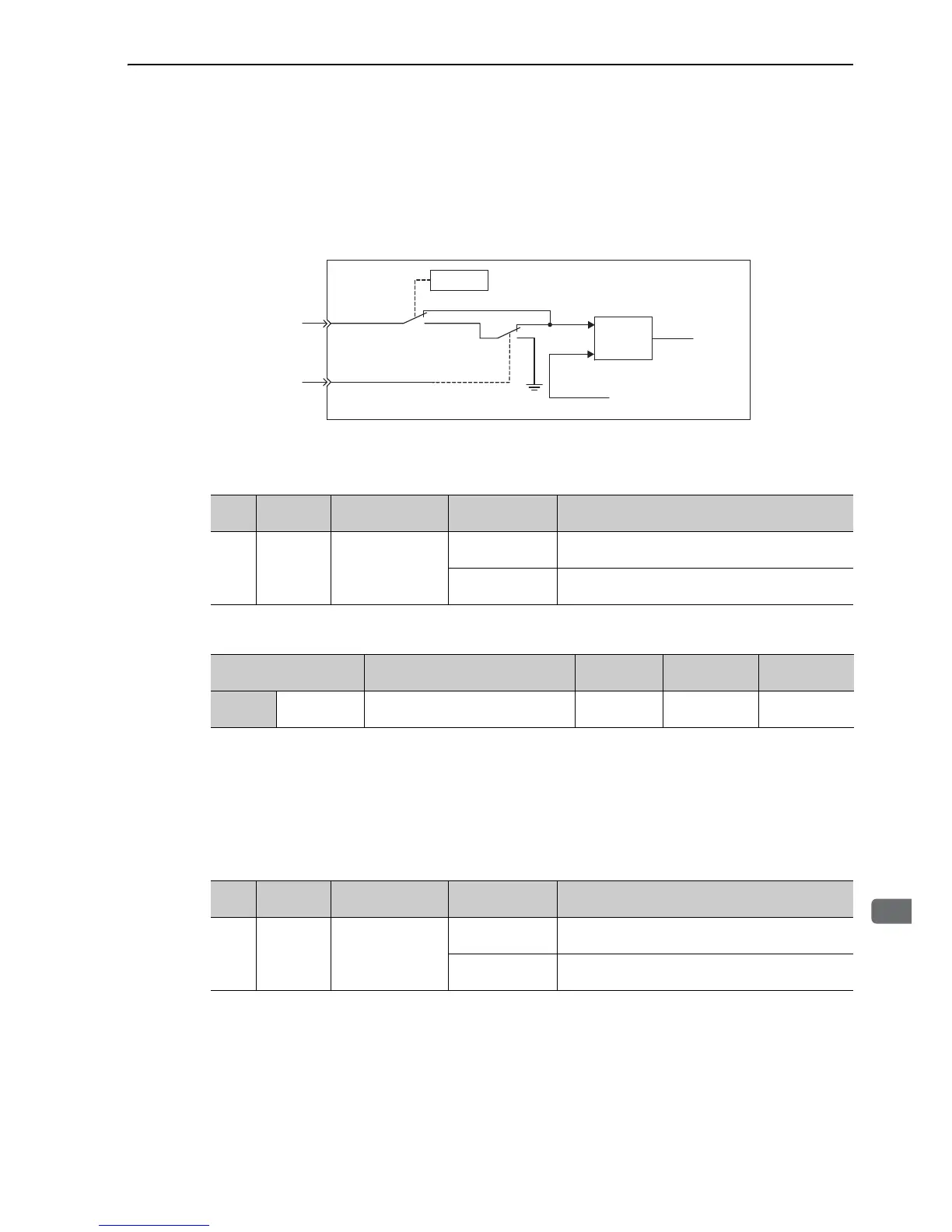

5.4.7 Reference Pulse Inhibit Function
This function inhibits the SERVOPACK from counting input pulses during position control. The servomotor
remains locked (clamped) while pulse are inhibited.
<Terms>
Servo lock: A stopped state of the motor in which a position loop is formed with a position reference of 0.
(1) Factory-set Sequence Signal Allocations (Pn50A.0 = 0)
Use the /P-CON signal to switch to the reference pulse inhibit function.
To use the reference pulse inhibit function, set Pn000.1 to B.
Note: If Pn000.1 is set to B, the /P-CON signal cannot be used for any function other than the reference pulse inhibit func-
tion.
(2) Changing Sequence Signal Allocations for Each Signal (Pn50A.0 = 1)
Use the /INHIBIT signal to switch to the reference pulse inhibit function.
To use the /INHIBIT signal, the input signal must be allocated. For details, refer to 3.3.1 Input Signal Alloca-
tionss to Input Terminals.
Pn000.1
Pn000.1 =1
Pn000.1 =B
OFF
ON
+
-
/P-CON (/INHIBIT)
/P-CON
(/INHIBIT)
Error
counter
Reference pulse
Feedback pulse
SERVOPACK
Type
Signal
Name
Connector
Pin Number
Setting Meaning
Input /P-CON
CN1-41
[Factory setting]
ON
Turns ON the INHIBIT function to inhibit the SER-
VOPACK from counting reference pulses.
OFF
Turns OFF the INHIBIT function to count reference
pulses.
Parameter Control Method
Input Signal
Used
When Enabled Classification
Pn000
n.

B

The INHIBIT function in position
control mode uses /P-CON.
/P-CON After restart Setup
Type
Signal
Name
Connector
Pin Number
Setting Meaning
Input /INHIBIT
CN1-
Must be allocated.
ON
Turns ON the INHIBIT function to inhibit the SER-
VOPACK from counting reference pulses.
OFF
Turns OFF the INHIBIT function to count reference
pulses.
