9 Fully-closed Loop Control
9.1.1 System Configuration
9-2
9.1 System Configuration and Connection Example for
SERVOPACK with Fully-closed Loop Control
This section describes the system configuration and connection example for the SERVOPACK with fully-
closed loop control.
9.1.1 System Configuration

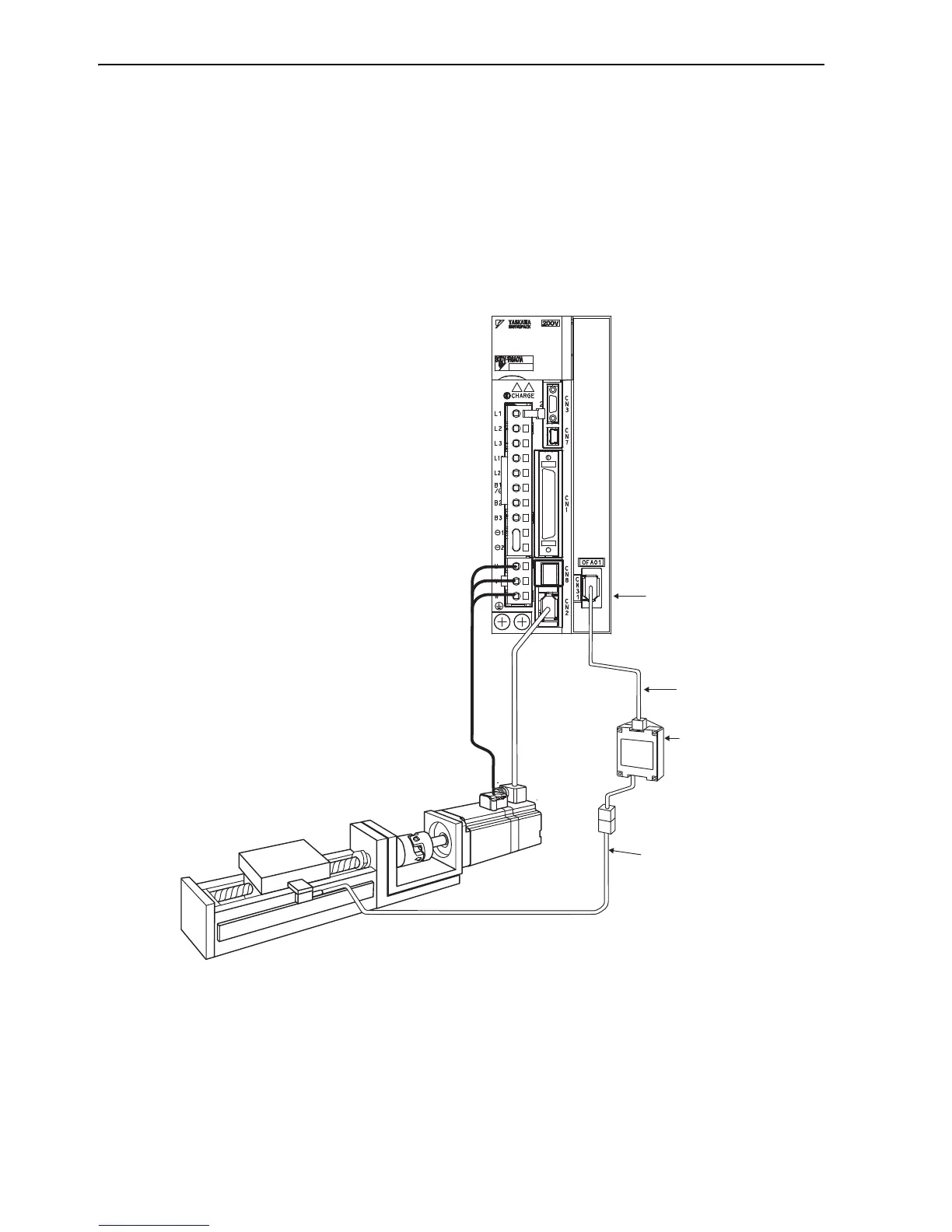

The following figure shows the system configuration for fully-closed loop control.
Serial converter unit
Encoder cable
Connection cable for
serial converter unit
External encoder (linear encoder)
(Not included)
Servomotor
main circuit cable
Model: JZDP-D00غ-000-E
SERVOPACK with option module
for fully-closed loop control
Model:
SGDV001
Fully-closed
loop control
Model: SGDV-OFA01A
