User Guide for the SIP-T19(P) E2 IP Phone
32

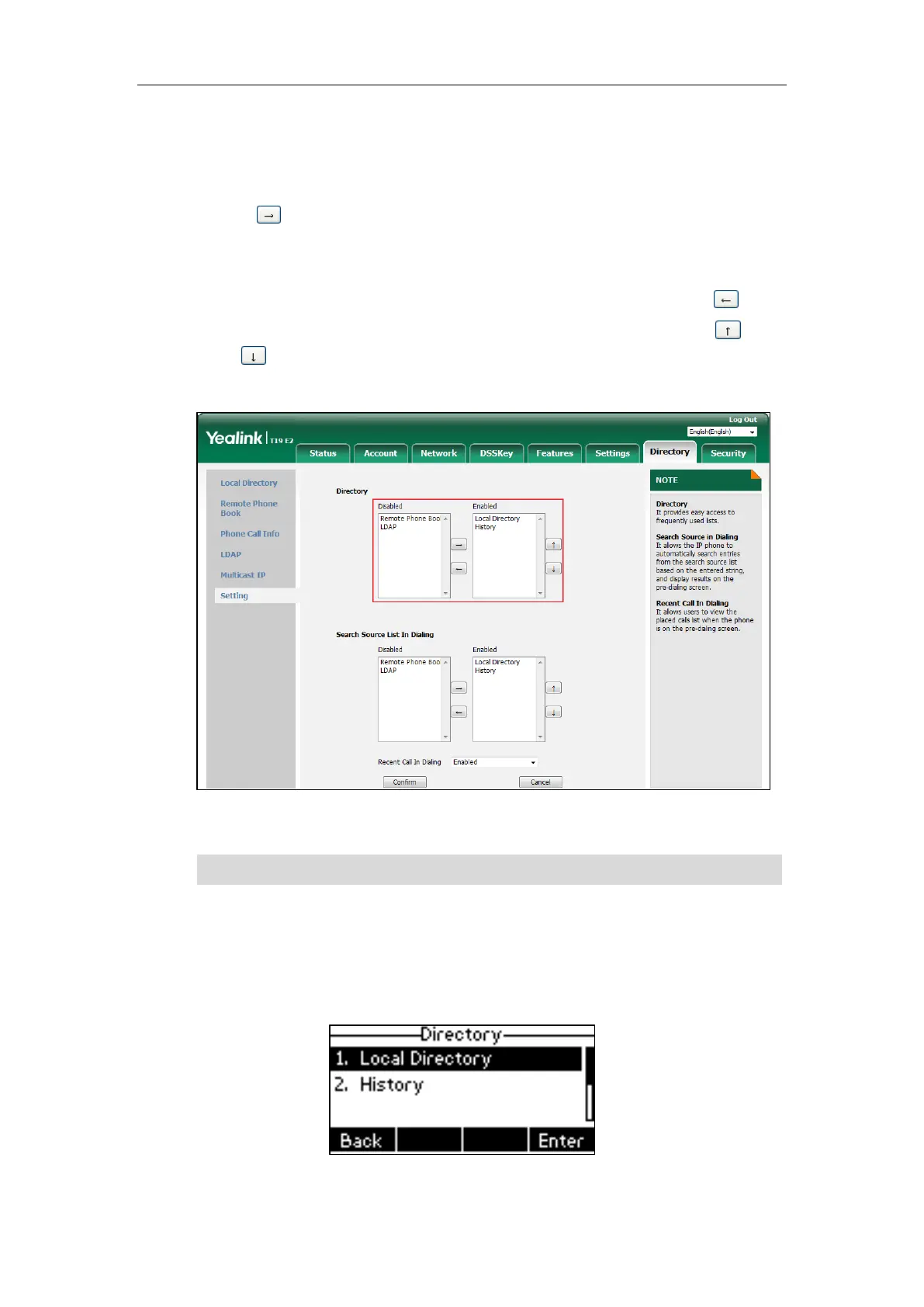

To configure the list(s) to access for the Dir soft key via web user interface:
1. Click on Directory->Setting.
2. In the Directory block, select the desired list from the Disabled column and then
click .
The selected list appears in the Enabled column.
3. Repeat the step 2 to add more lists to the Enabled column.
4. To remove a list from the Enabled column, select the desired list and then click .
5. To adjust the display order of enabled lists, select the desired list and then click
or .
The LCD screen displays the list(s) in the adjusted order.
6. Click Confirm to accept the change.
Note
To check the directory via phone user interface:
1. Press the Dir soft key when the phone is idle.
The LCD screen displays the enabled list(s) in the directory.
The list(s) to access for Dir soft key is configurable via web user interface only.
