Advanced Phone Features
107

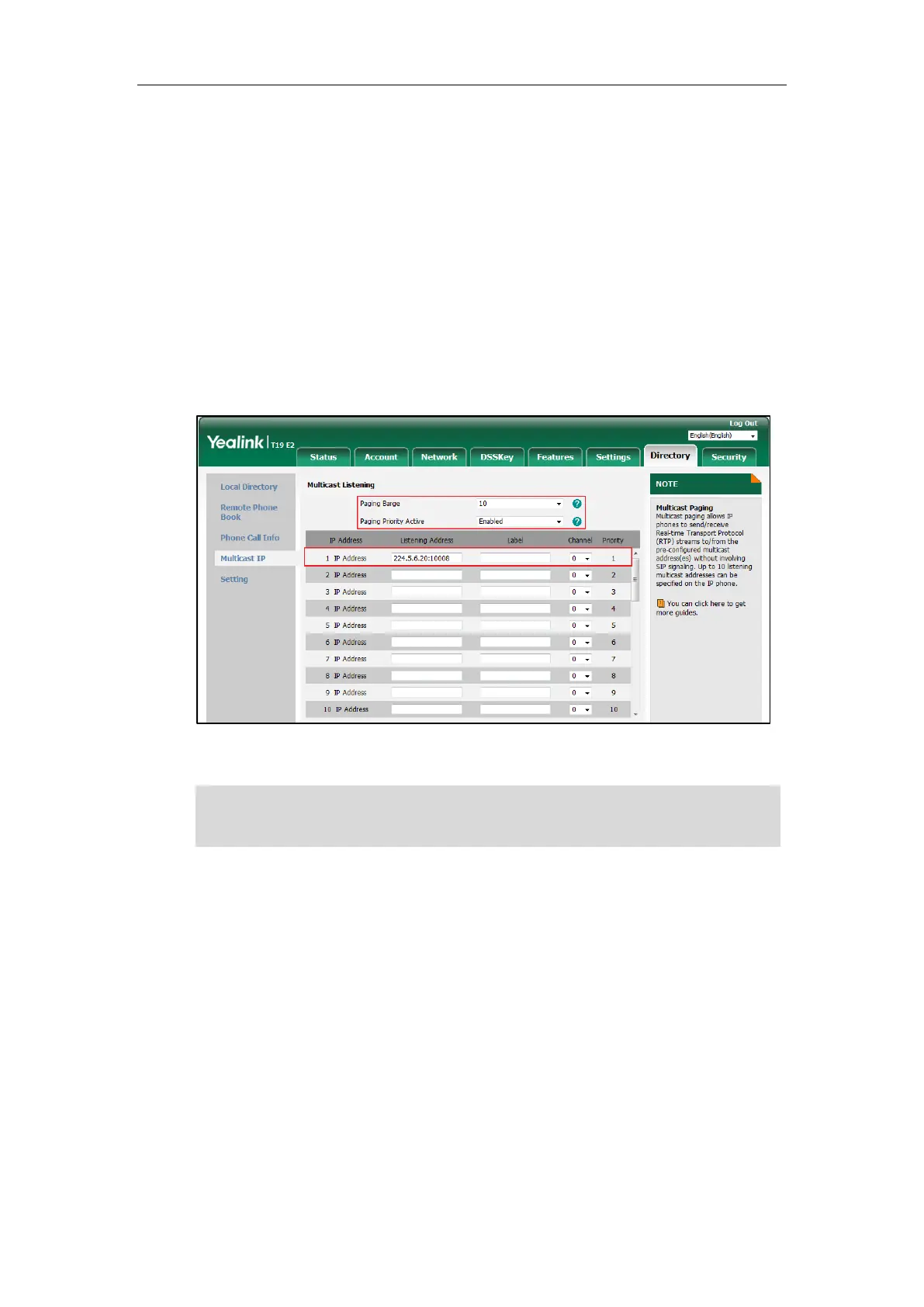

To configure multicast listening addresses via web user interface:
1. Click on Directory->Multicast IP.
2. Select the desired value from the pull-down list of Paging Barge.
3. Select the desired value from the pull-down list of Paging Priority Active.
4. Enter the multicast IP address(es) and port number (e.g., 224.5.6.20:10008) which the phone
listens to for incoming RTP multicast in the Listening Address field.
5. (Optional.) Enter the label in the Label field.
Label will appear on the LCD screen when receiving the multicast RTP stream.
6. Select the desired channel to listen from the pull-down list of Channel.
The default channel is 0.
7. Click Confirm to accept the change.
Note
Using Multicast Paging
To send RTP stream via a multicast paging key when the receiver’s phone is idle:
1. Press the multicast paging key when the phone is idle.
The phone sends RTP to a preconfigured multicast address (IP: Port).
Both the sender’s and receiver’s phones play a warning tone and the receiver automatically
answers the multicast RTP session in the speakerphone mode.
The priorities of listening addresses are predefined: 1 with the highest priority, 31 with the lowest.
Multicast listening addresses are configurable via web user interface only.
