Section Analysis Menu
6.

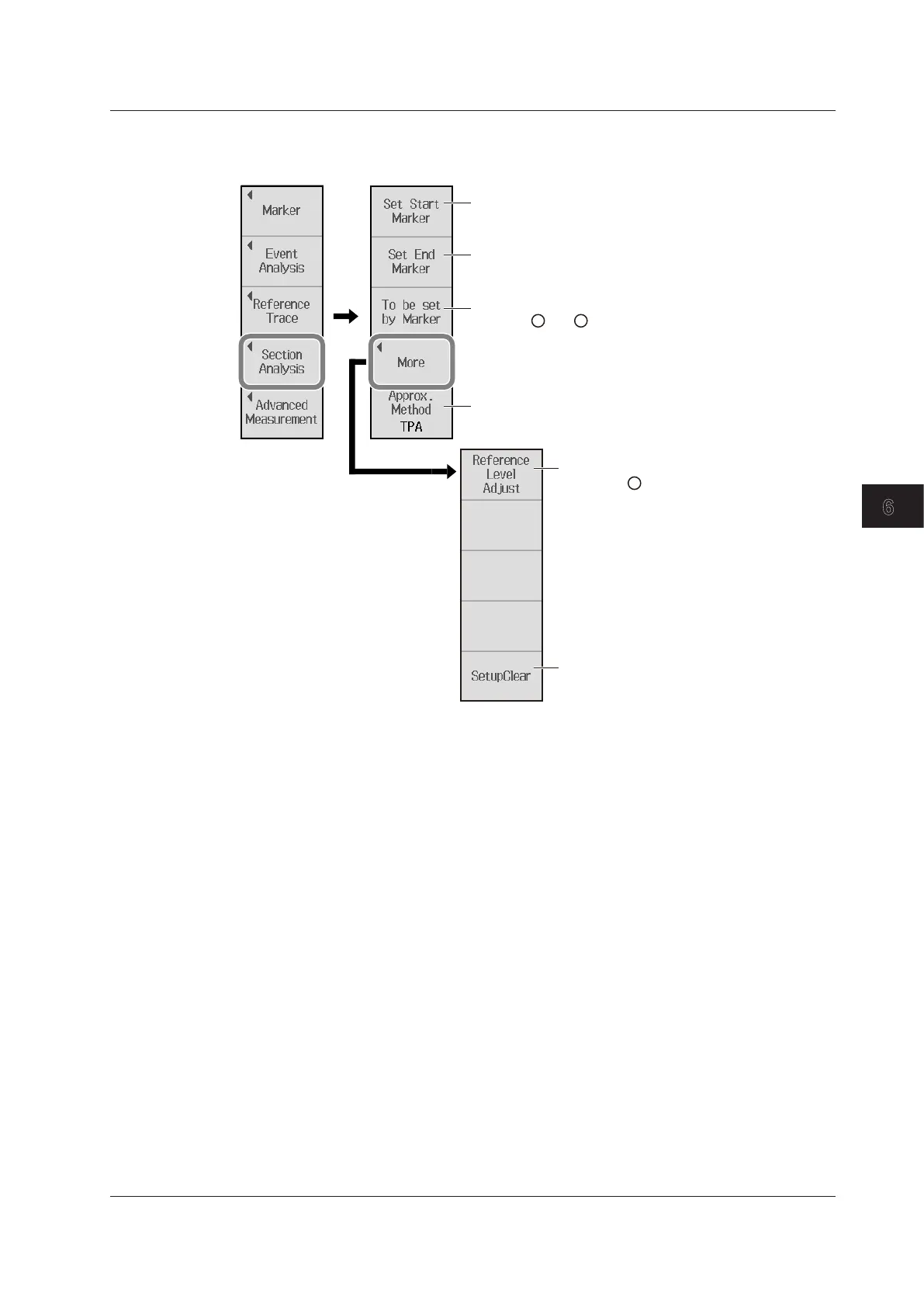

Tap the Section Analysis soft key to display the section analysis soft key menu.
Sets the start point
Sets the start point marker at the cursor position
Sets the end point
Sets the end point marker at the cursor position
Specify from markers.
When the and markers or the n and E markers are already
present, change these markers to the start point and end point
markers.
1 2
Set the approximation method.
See section 2.2.
Set the reference level adjustment.
Set marker to the cursor position.
B
Clears the settings
The start point, end point, and reference level
adjustment markers will be cleared.
6.4 Analyzing Sections
