Using the Light Source from the OTDR Screen (utility button)

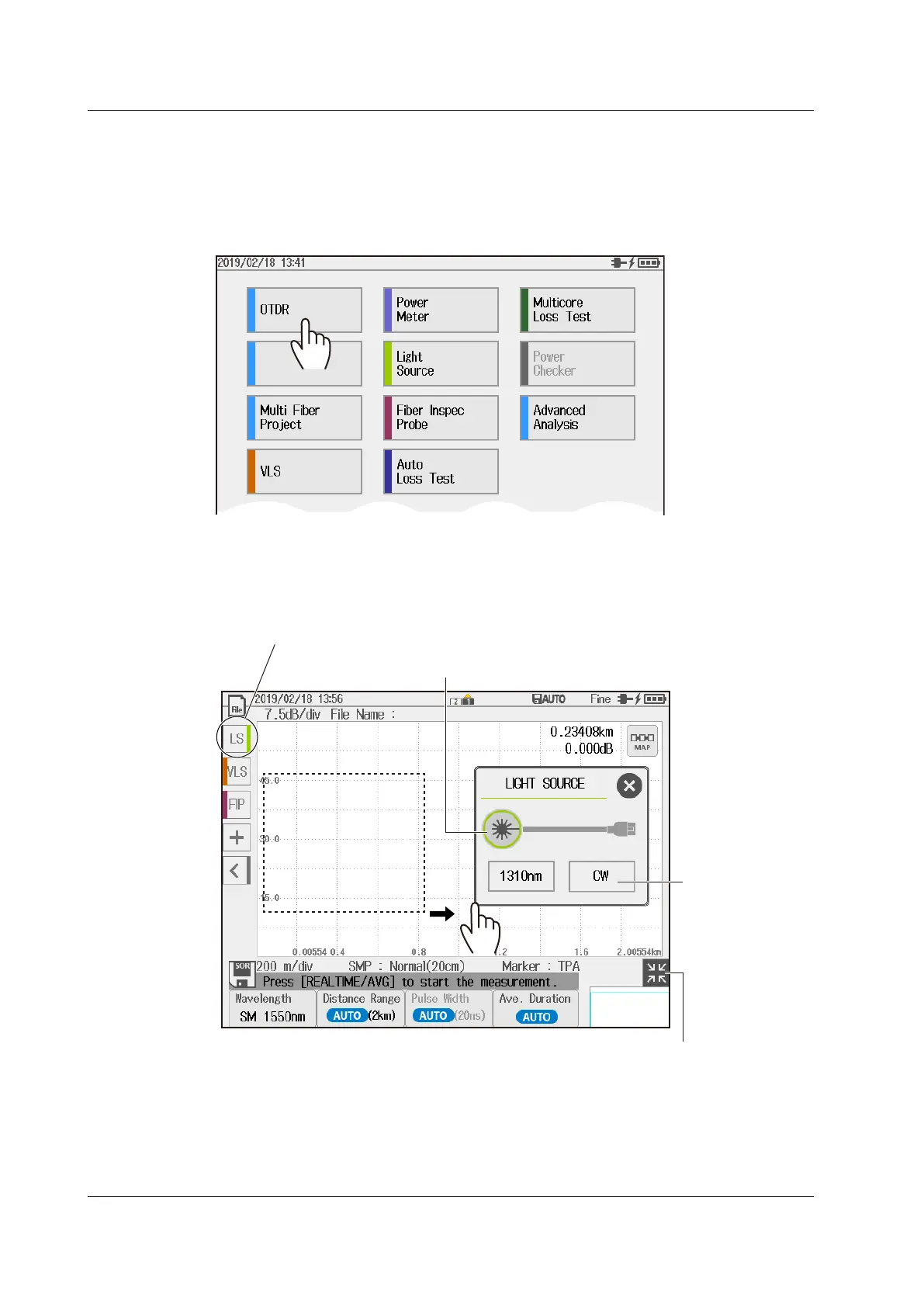

Displaying the OTDR Screen
1.
Press MENU to display the MENU screen.
2.
Tap OTDR to display the OTDR screen.
OTDR Screen
3.
Tap LS to display the light source screen.
If the LS button is not displayed, proceed to step 4.
Light source screen
Drag to move the light
source screen.
Set the modulation
mode (CW, 270Hz,
1kHz, 2kHz).
Turns the light output on and off
The output turns on or off each time you tap the button.
Starts the visible light source screen
Returns the waveform display area to its
original condition
The example of the OTDR screen shows the
waveform display area expanded.
7.1 Using the Light Source
