YOKOGAWA AQ1215A - Page 146

7-15
IM AQ1210-01EN
Using the Utility Feature
1
2
3
4
5
6
7
8
9
10
11
App
Index

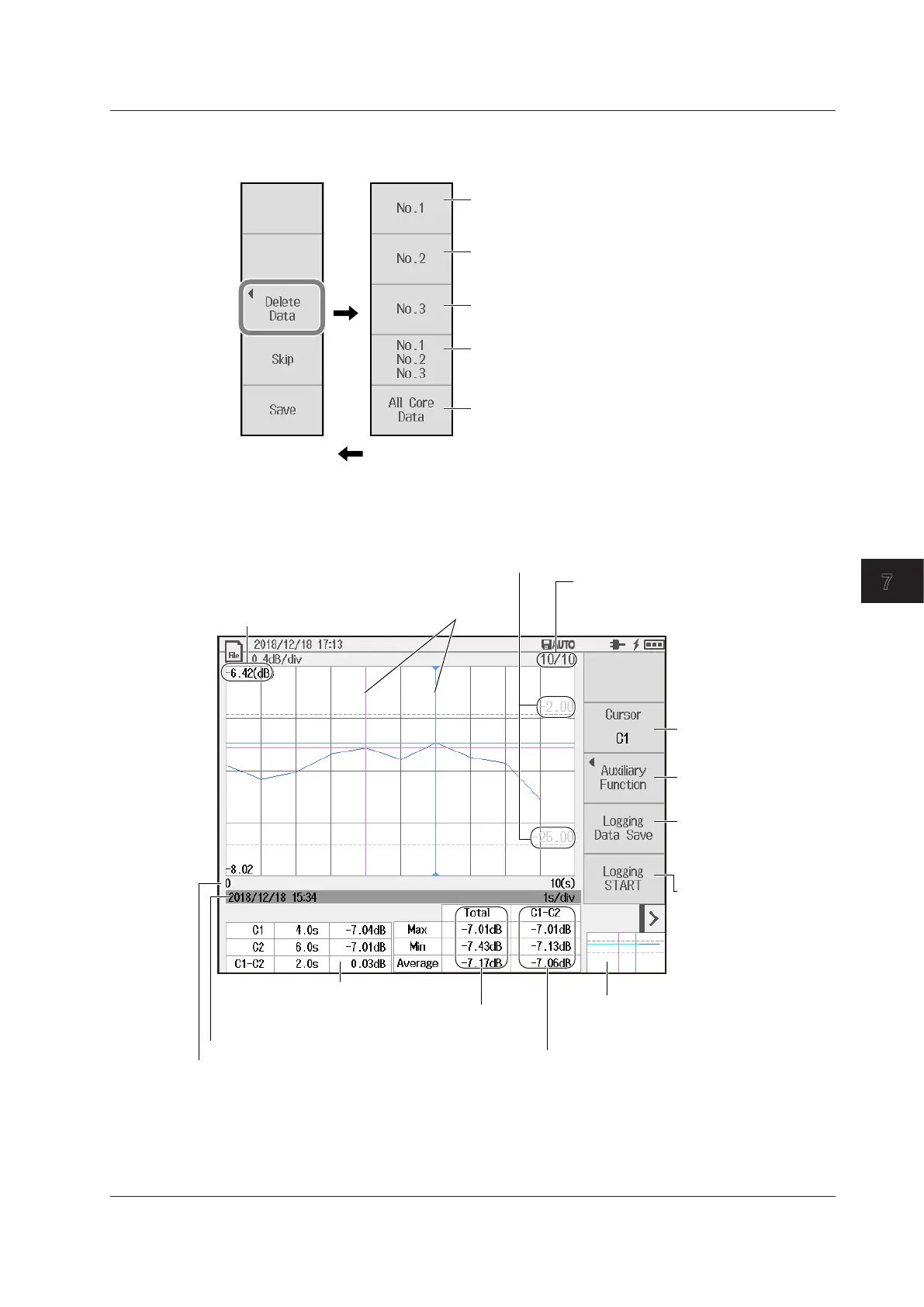

• Deleting Measured Data
11.
Tap the Delete Data soft key. A data delete soft key menu appears.
Deletes the measurement data of No. 1 from the saved
data information of the selected core number
Deletes the measurement data of No. 2 from the saved
data information of the selected core number
Deletes the measurement data of No. 3 from the saved
data information of the selected core number
Deletes collectively the measurement data of
No. 1 to No. 3 from the saved data information
of the selected core number
Deletes collectively the measurement data of
all core numbers
When you delete data, the screen returns to the
Save Data menu after the data is deleted.
Logging Measurement of Optical Power Values (logging)
10.
Tap the Logging soft key. A logging measurement screen appears.
Optical power value
(vertical axis)
Cursors C1 and C2
Thresholds
Measurement count
The number of times that logging has
currently been executed and the total number
of times to execute logging
Select the cursor (C1, C2).
Auxiliary function
See page 7-14.
Saves log data
A screen for setting the file
save destination and the
file name appears.
Starts logging
Logging will start. After the
specified number of entries
are recorded, a screen for
saving the logging results
appears (see the File Save
screen described below).
Entire graph
The section that is displayed in the display
area is indicated by a box (overview).
Maximum, minimum, and average
of the logging data within the area
specified by the cursor
Maximum, minimum, and
average of all the logging data
Optical power at the cursor position
Date and time that logging was executed
Logging time (horizontal axis)
7.3 Using the Optical Power Meter
