7-16
IM AQ1210-01EN
•
Deleting Measured Data
11
.
T
ap the
Auxiliary Function
soft key
.
A

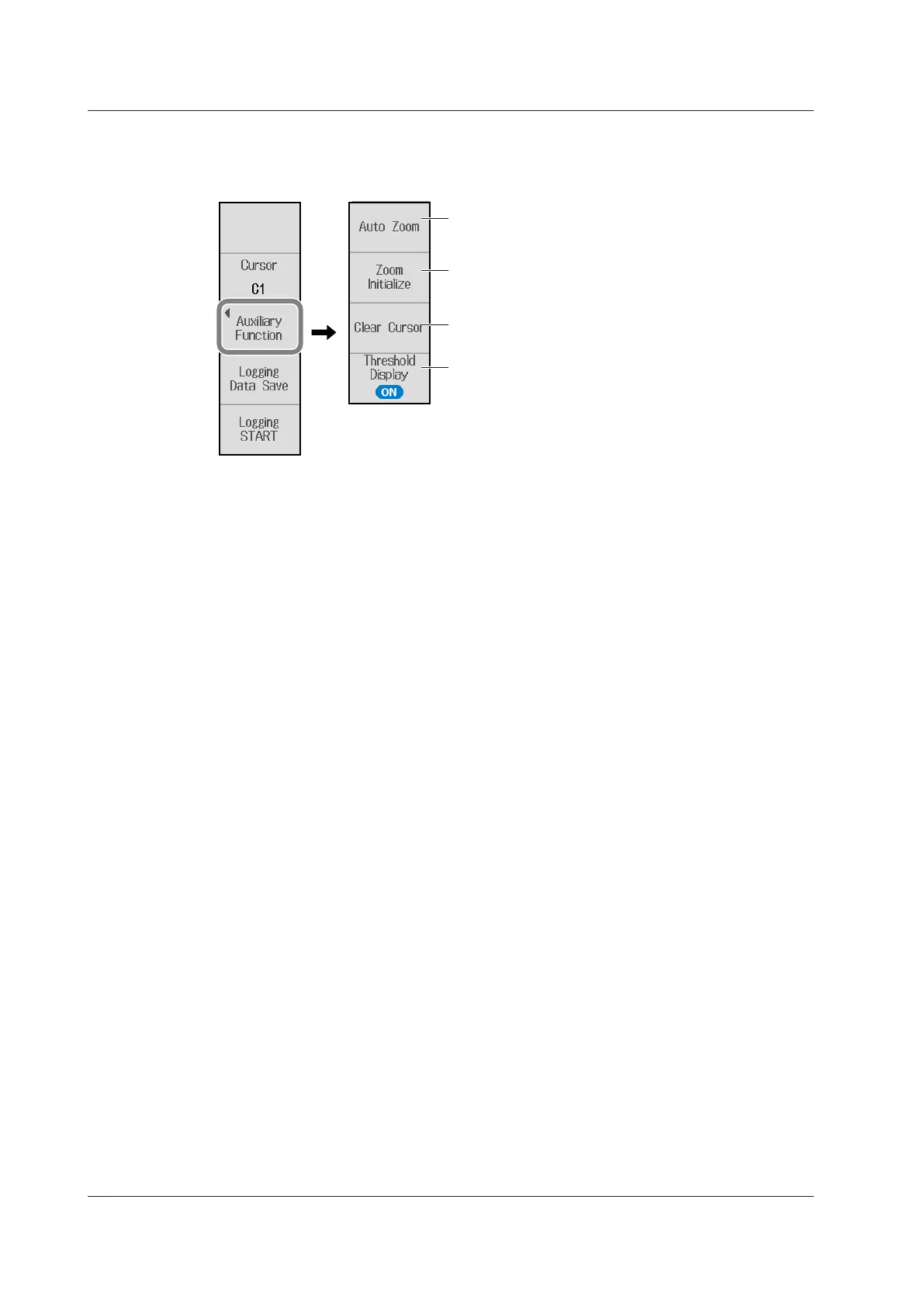

soft key menu appears for the auxiliary function of the
logging screen.
Clears the cursor
Set the threshold display
(OFF, ON).
Auto zoom
Automatically zooms in on the graph at the cursor position.
Zoom Initialize
Resets the scale so that the graph displays the entire optical
power range.
7.3 Using the Optical Power Meter
146
148
