7-24
IM AQ1210-01EN
Performing Setup
3.
Press SETUP to display the optical power meter setup screen.
4.

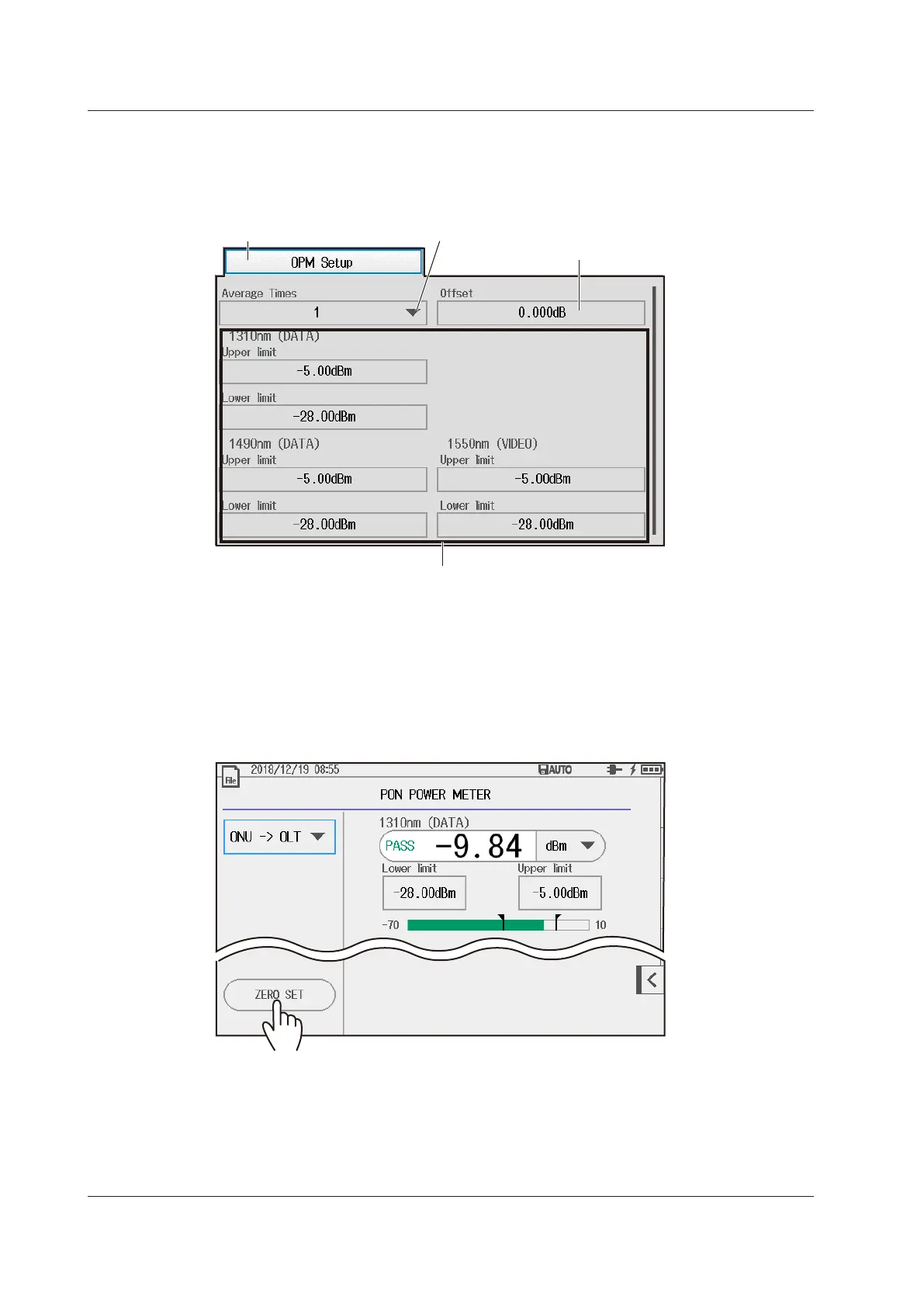

Tap the OPM Setup tab to display the following screen.
(1, 10, 50, 100).
Set the offset
(–9.900 to 9.900 dB).
Set the threshold (–80 to 40dBm).
Set the upper and lower limits for each wavelength of the PON system.
OPM Setup tab
Executing the Zero Set
4.
After step 3, close the optical power meter screen. The screen returns to the PON power meter
screen.
5.
Tap ZERO SET.
Remove the optical fiber cables from the instrument and close the OPM port covers, or make sure that the
power meter is not receiving any light, and then start the optical power meter zero set procedure.
7.4 Using the PON Power Meter (/PPM option)
To Next Page
