Performing Setup
3.

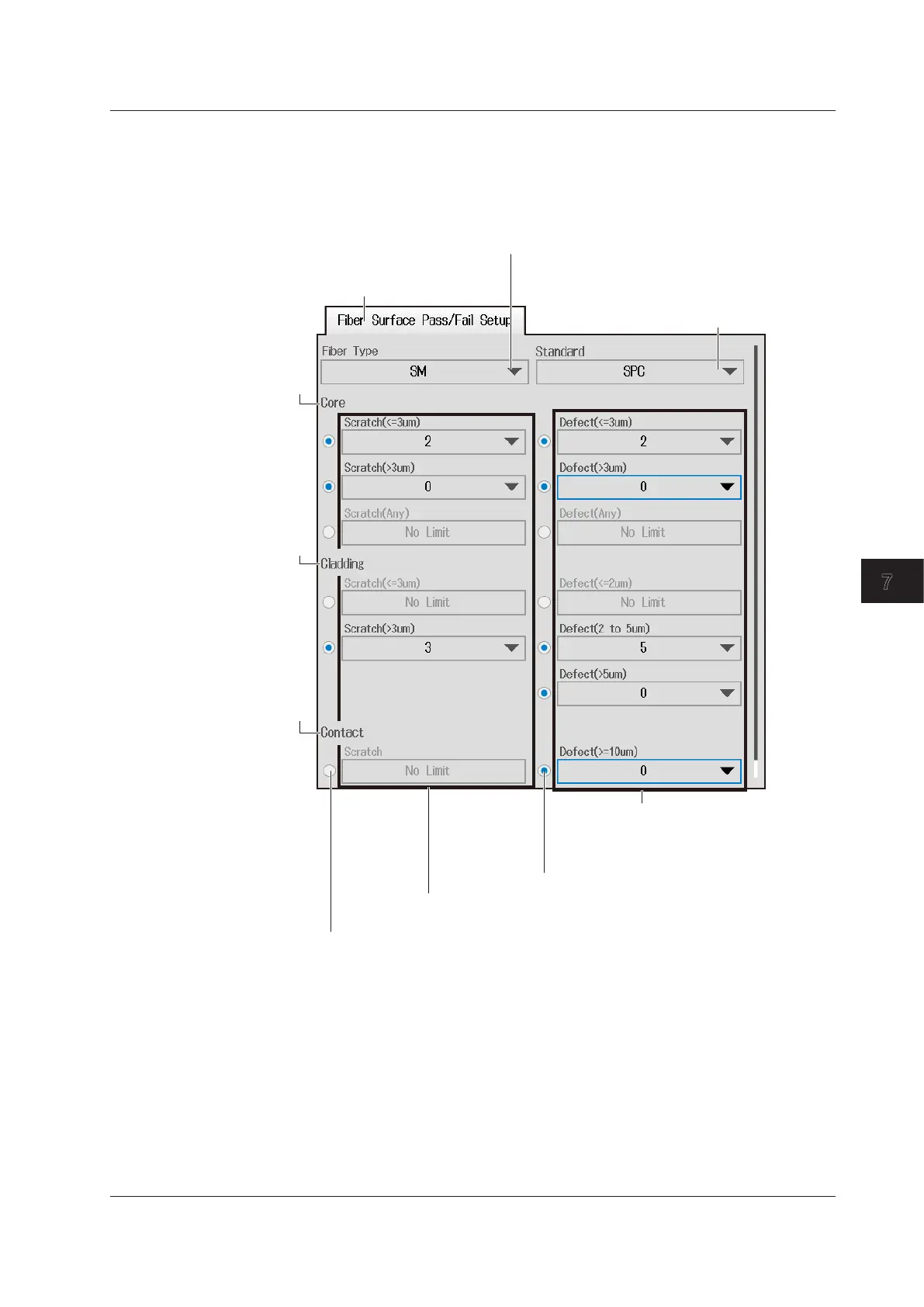

Press SETUP to display the Fiber Surface Pass/Fail Setup screen.
4.
Tap the Fiber Surface Pass/Fail Setup tab to display the Fiber Surface Pass/Fail Setup
screen.
Fiber Surface Pass/Fail
Setup tab
Select the optical fiber cable (SM, MM).
Select the judgment reference.
When the fiber type is SM: (UPC, SPC, APC)
When the fiber type is MM: (default)
Set the defect judgment threshold (0 to 100).
You can set the value when the defect judgment
execution is set to on (check box selected).
Set the defect judgment execution (OFF, ON).
Set the scratch judgment threshold (0 to 100).
You can set the value when the scratch judgment execution
is set to on (check box selected).
Set the scratch judgment execution (OFF, ON).
Core area
conditions
Clad area
conditions
Contact area
conditions
