Return Loss

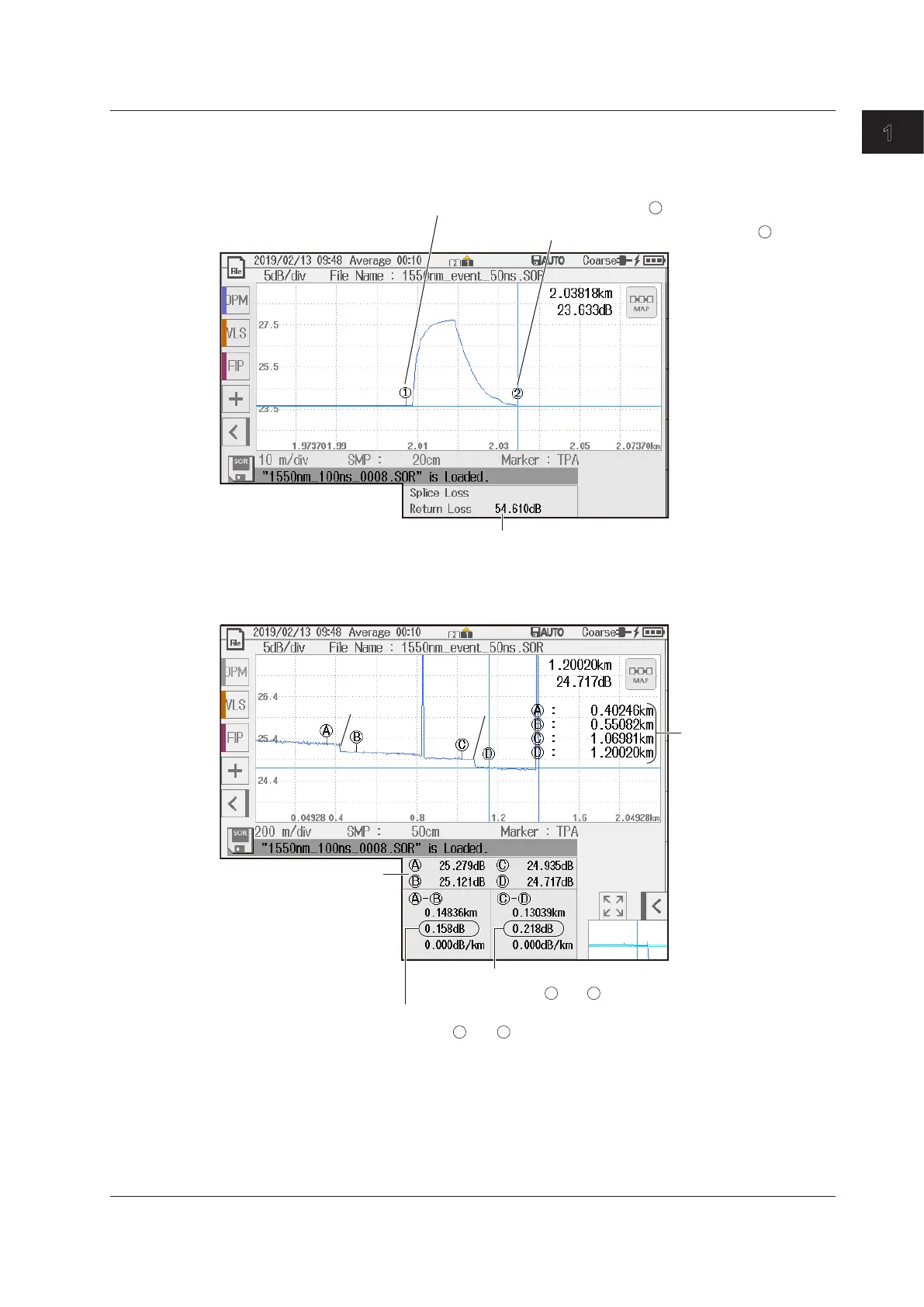

When you place two markers as shown in the following figure, the return loss is calculated, and the
value is displayed.
Return loss
1
Event’s rising start position (marker )
2
Event’s falling end position (marker )
Splice Loss at Two Locations (4 Point Monitor)
Splice losses at two locations can be measured simultaneously using four markers.
A B
Distance from the
start point to each
marker
Loss
measurement at
splice point 1
Loss
measurement at
splice point 2
Loss from the start
point to each marker
Loss at splice point 1
Loss at splice point 2
(between and )
C D
(between and )
1.4 Analyzing Measured Data
