Using the Utility Feature
7
Displaying the Still Image
4.

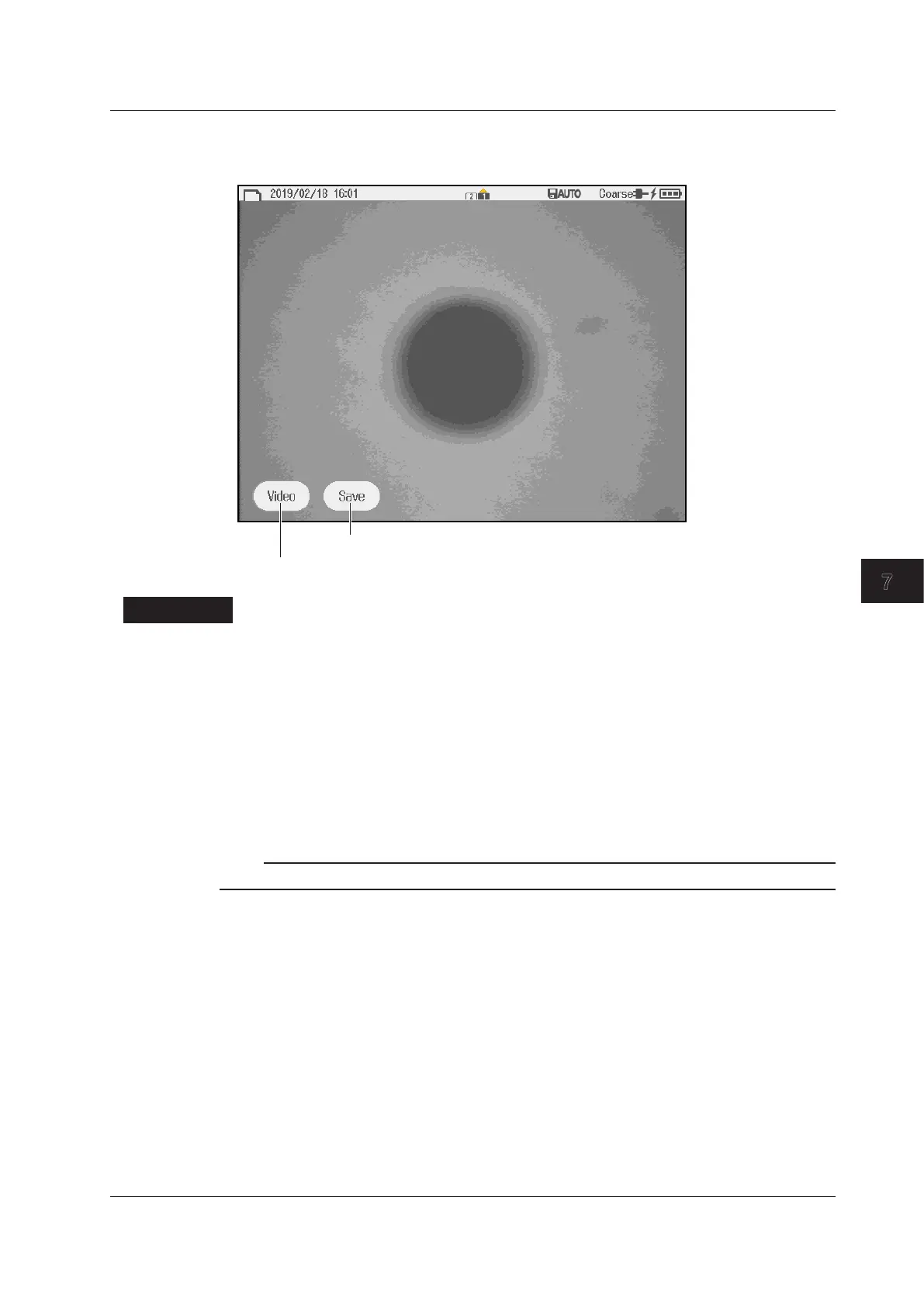

Tap Still to display the still image screen.
Saves the still image to a BMP file
Returns to the still image display
Explanation
Connecting a Fiber Inspection Probe
Hot-plugging is supported; you can connect or disconnect a USB device at any time, regardless of
whether the instrument is on or off.
If you connect a USB fiber inspection probe while the instrument is on, the instrument will automatically
identify the probe.
For cautions regarding connecting the probe, see Note in section 9.1.
For information about compatible fiber inspection probes, contact your nearest YOKOGAWA dealer.
Holding the Image Display
The still image size is VGA for both the USB2.0 and USB1.1 fiber inspection probes.
Note
If a USB2.0 fiber inspection probe is connected, it will take some time to display the still image.
Executing a Save Operation
You can save the still image. Video cannot be saved.
7.6 Using the Fiber Inspection Probe (/FST option)
