YOKOGAWA AQ1215A User Manual

7-38
IM AQ1210-01EN
Using the Fiber Inspection Probe from the OTDR Screen (utility
button)
Displaying the OTDR Screen
1.
Press MENU to display the MENU screen.
2.
Tap OTDR to display the OTDR screen.

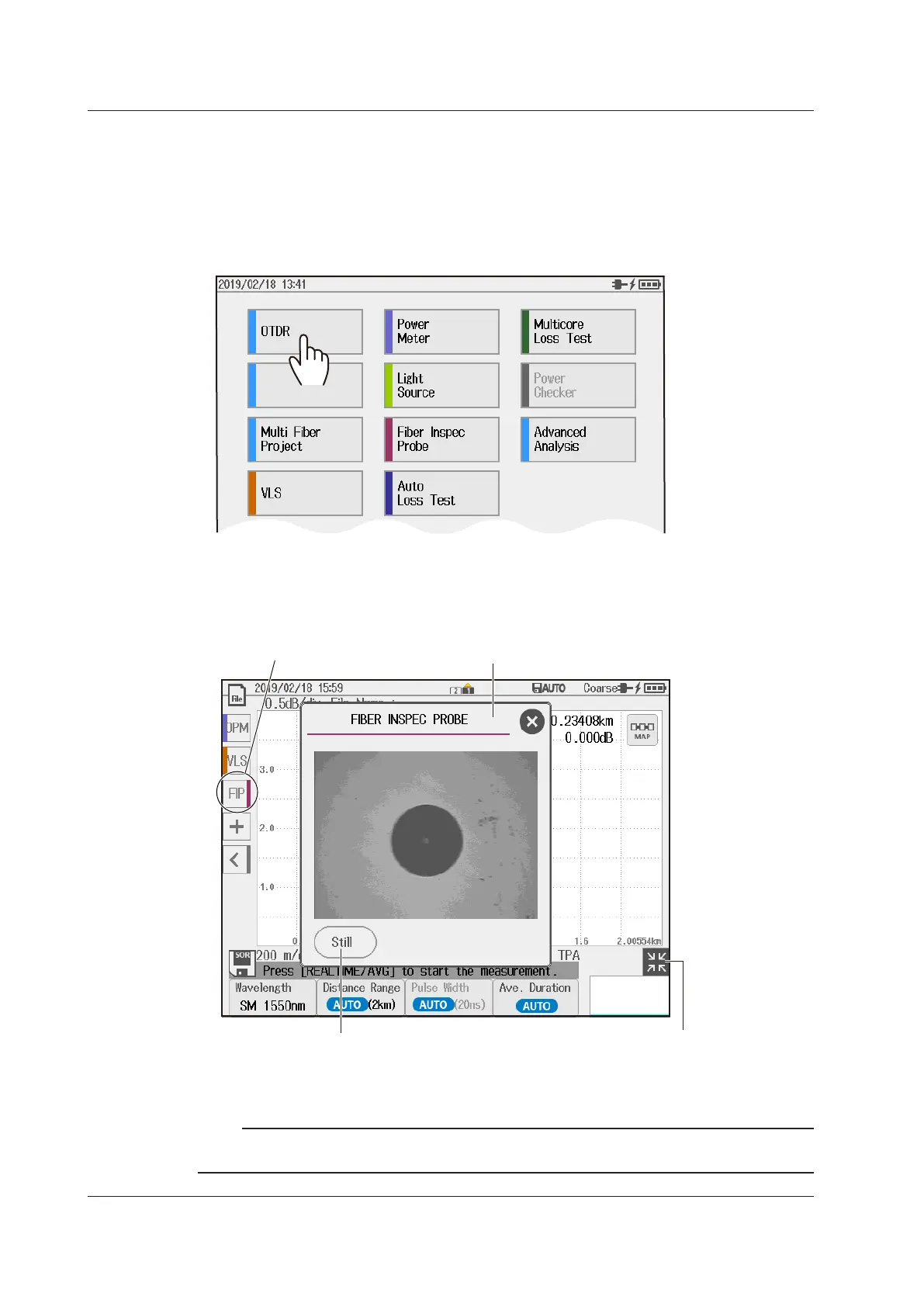

MENU screen
OTDR Screen
3.
Tap FIP to display the FIBER INSPEC PROBE screen.
Fiber inspection probe screen
This is a video screen.
Displays the still image
Displays the still image over the entire data
display screen
FIP button
Starts the fiber inspection
probe screen
Returns the waveform display
area to its original condition
The example of the OTDR screen
shows the waveform display area
expanded.
Note
If the FIP button is not displayed, see “Changing a Utility Button” under “Using the Light Source from the
OTDR Screen (utility button)” in section 7.1.
7.6 Using the Fiber Inspection Probe (/FST option)
