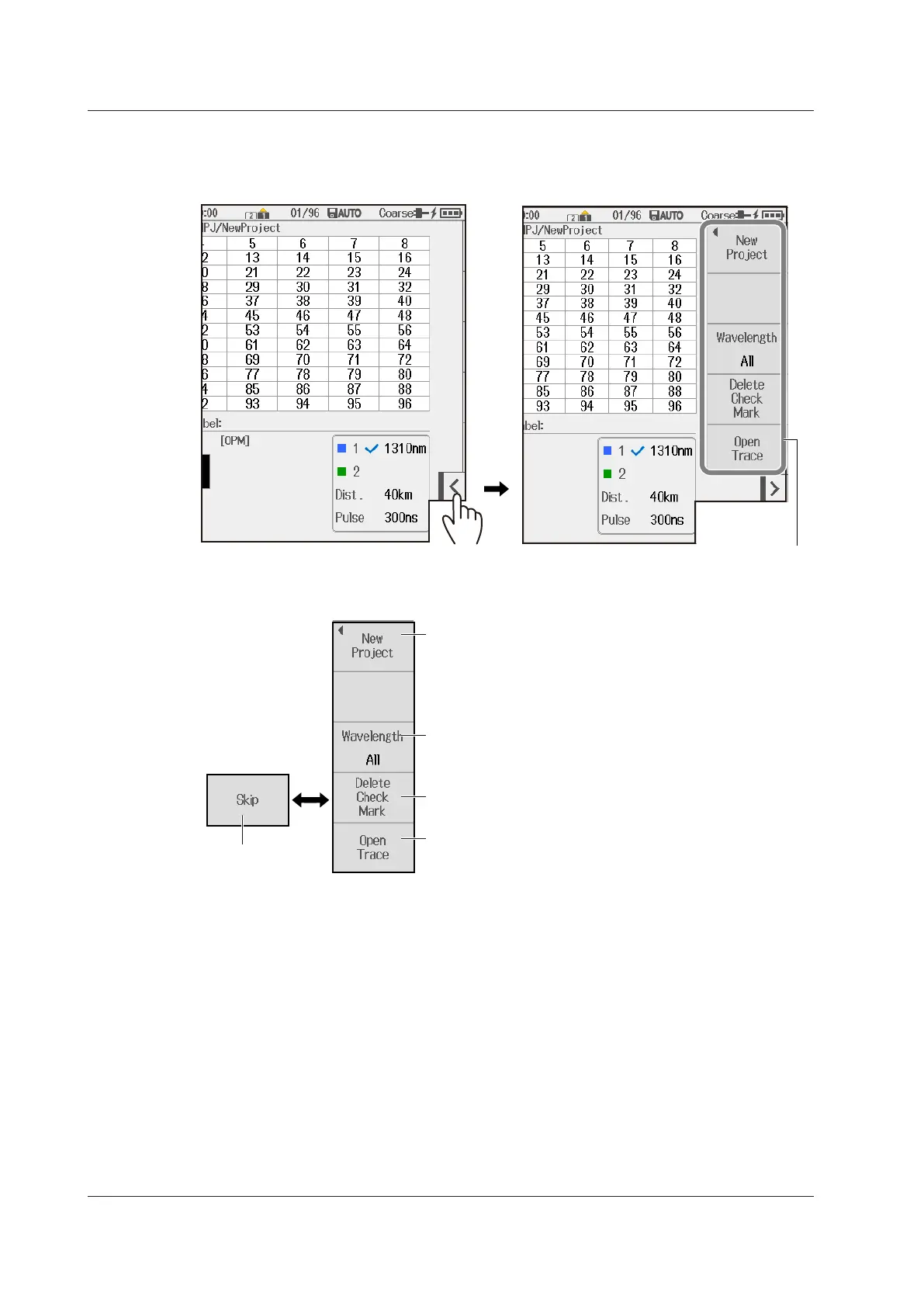

Soft Key Menu (core selection screen)
3.
Tap the soft key menu display button. A soft key menu appears for operating the core selection
screen of multi-fiber measurement.
Core Selection Menu for Multi-Fiber Measurement
Set the project name (new).
A character input dialog box will open. New
project conditions are created.
See page 8-26.
Set the wavelength for the real-time measurement or
averaged measurement (1310nm, 1550nm, 1625nm/1650nm).
You can select from the wavelengths set in the setup
measurement (Measure) conditions.
Check the waveform.
Displays the OTDR waveform screen showing the results
of a real-time or averaged measurement
See page 8-15 or 8-18.
Deletes the check mark
Deletes the measurement data of the selected
core number and clears the result display
Sets or clears
skipping
Sets whether to skip the
measurement of the
selected core number
Display when
measured results
are not saved
8.2 Measuring a Multi-Core Optical Fiber Cable (Multi-Fiber Project)
