Performing Setup
3.
Press SETUP to display the multi-fiber measurement setup screen.
Project Conditions
4.

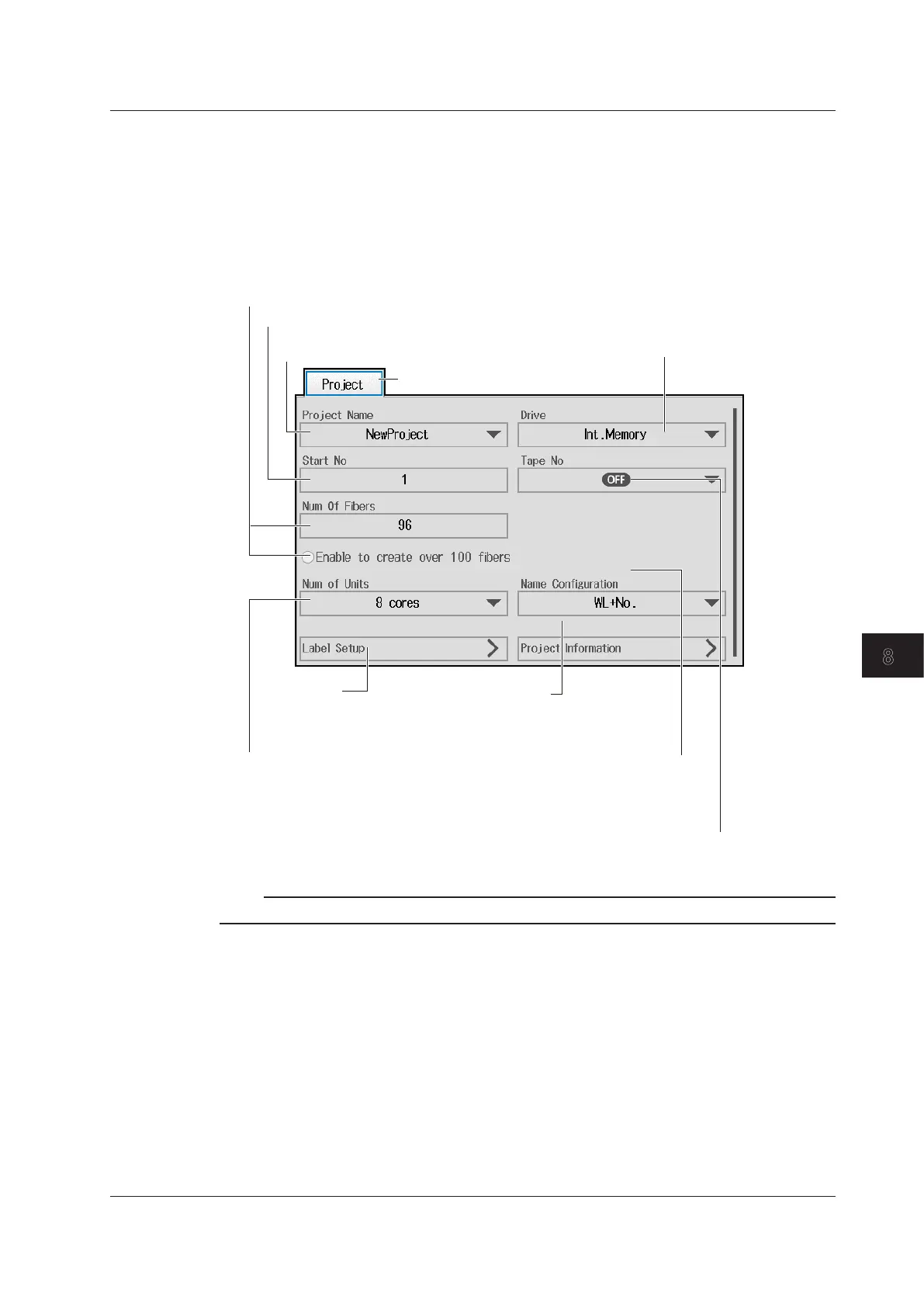

Tap the Project tab to display the following screen.
Set the project name.
A character input dialog box will open.
Set the starting core number (1 to 9900).
Set the number of cores or tapes (1 to 2000).
Create a project with more than 100 cores
Selected: The selectable range of number of cores is 100 to 2000.
Not selected: The selectable range of number of cores is 1 to 100.
Set the label.
The same label can be
entered for all cores.
See section 2.4.
Project information
You can view the project settings
and measurement settings in a table.
See page 8-26.
Set the file name type (WL + No., No.
+ WL, Project Name + WL + No., No.
+ Project Name + WL, WL + Project
Name + No.).
Set the tape number (OFF, a-b (2), a-c
(3), a-d (4), a-e (5), a-f (6), a-g (7), a-h (8)).
Set the number of cores in each
division (8 cores, 10 cores).
You can set this when the tape
number is set to OFF.
Select the drive
(Int.Memory, USB Memory, USB Memory 2).
Selectable when auto save is ON.
Project tab
Note
When you change the measurement core information, all the previous core measurements are discarded.
