Measurement (Measure) Conditions
4.

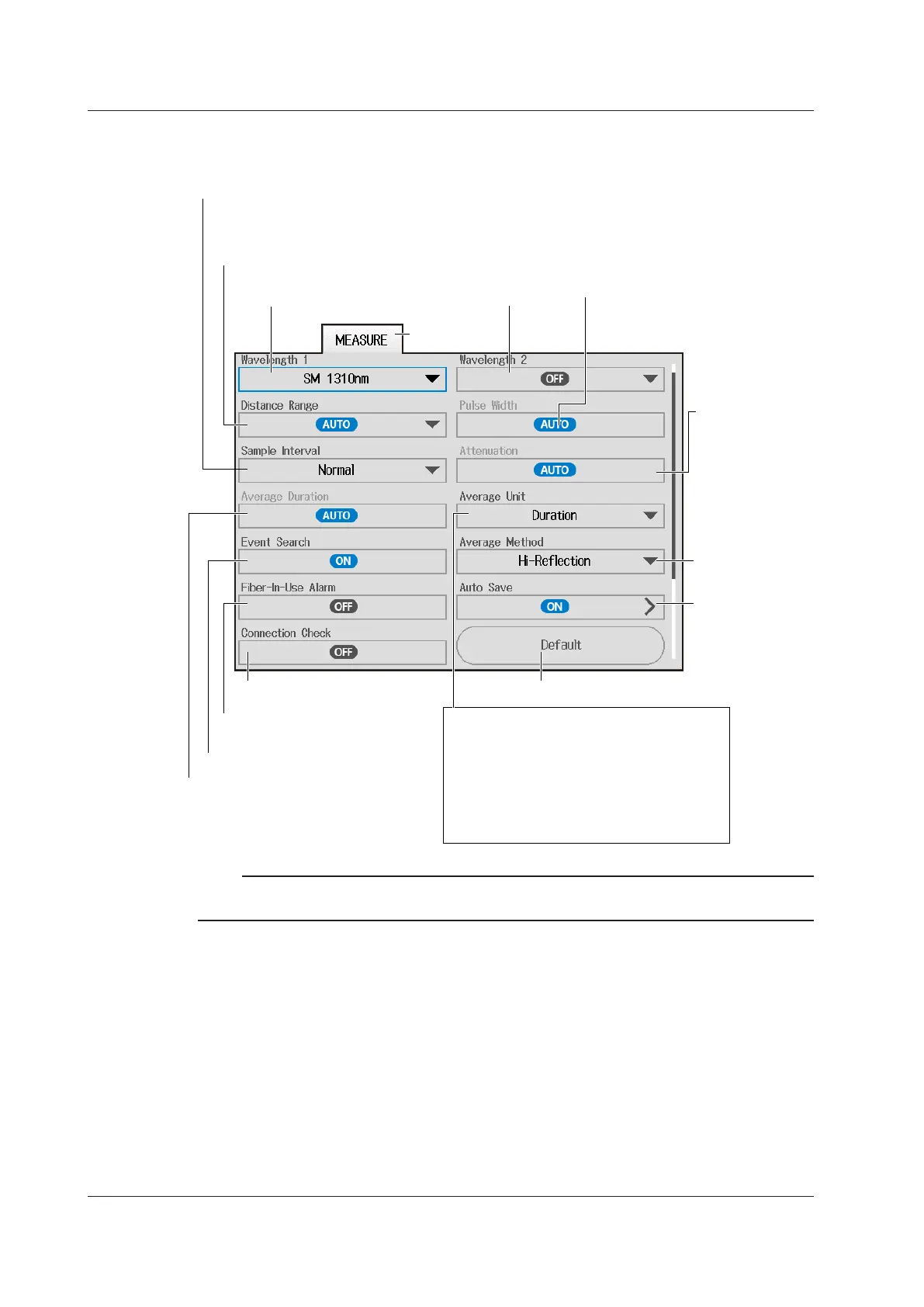

Tap the MEASURE tab to display the following screen.
Set the average duration (when the average
unit is set to Duration).
(AUTO, 5sec, 10sec, 20sec, 30sec, 1min, 3min,
5min, 10min, 20min, 30min)
Set wavelength 1 (1310nm,
1550nm, 1625nm/1650nm).
Set the distance range.
(AUTO, 200m, 500m, 1km, 2km, 5km, 10km,
20km, 30km, 40km, 50km, 100km, 200km,
256km, 300km, 400km, 512km)
Set the pulse width.
(AUTO, 3ns, 10ns, 20ns, 30ns, 50ns,
100ns, 200ns, 300ns, 500ns, 1μs, 2μs,
4μs, 5μs, 10μs, 20μs)
Set the fiber-in-use alarm
(OFF, ON).
Set auto save.
MEASURE tab
Set the sample interval (Normal, Hi-Resolution).
Set the event search (OFF, ON).
Set the average unit (Duration, Times).
Set the average
method (Hi-Speed,
Hi-Reflection).
(AUTO, 0.00dB,
2.50dB, 5.00dB,
7.50dB, 10.00dB,
12.50dB, 15.00dB,
17.50dB, 20.00dB,
22.50dB, 25.00dB,
27.50dB, 30.00dB).
Set wavelength 2 (OFF,
1310nm/1550nm).
Initializes the measurement settings
Set the connection check
(OFF, ON).
Set the average times (when the average unit
is set to Times).
(AUTO, 2^10, 2^11, 2^12, 2^13, 2^14, 2^15,
2^16, 2^17, 2^18, 2^19, 2^20)
Note
For details on the setup screen that appears when you select a setting and the descriptions of the settings,
see section 2.1.
